Rigid Industries Radiance Blue Back-Light Pods (Black) – 20201

Rigid Industries

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries Radiance Blue back-light pod, black, part number 20201
  • Blue back-lighting controlled separately, 15 watts, 900 raw lumens
  • 3 inch square housing, IP68, surface mount
  • Fog beam, sold as a pair, brackets included

Description

Overview

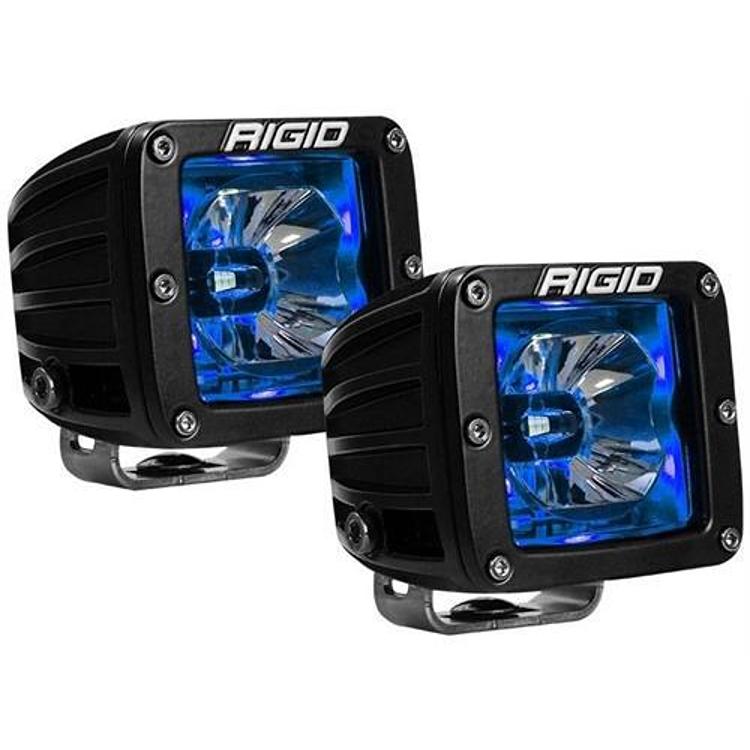

The Rigid Industries Radiance Blue Back-Light Pod, part number 20201, is a 3 inch square black pod with an independently controlled blue back-light. It uses the same high-grade aluminum alloy housing as the D-Series lights, and it is a universal product with no vehicle named for it.

The pod uses forward projecting optics for the main light and a separate back-light, available in white, green, amber, blue and red. It is rated at 15 watts, 900 raw lumens and an amp draw of 1, with three LEDs. It is IP68 rated with an alloy housing and heatsink, and it is sold as a pair with brackets included.

Key features

  • Blue back-light, controlled independently of the main light
  • Forward projecting optics
  • Black exposed printed circuit board
  • Alloy housing and heatsink
  • IP68 compliant, with high impact polycarbonate lens

Wiring and mounting back-lights

Back-lights are usually mounted for looks or for low-level work lighting, so they sit on flat surfaces where the glow is visible without glare in the driver’s eyes. Choose a spot that suits a 3 inch square pod, and make sure the brackets clear body panels, hinges and any surface that moves.

Because the back-light is controlled separately, it needs its own switch and a fused DC supply in the 9 to 15 volt range. Use a switch that is rated for the accessory load, and check the wiring after rough trails, since vibration can loosen terminals. Colored back-lights may be restricted on public roads, so check local rules first.

  • Mount on flat, solid surfaces
  • Keep wiring clear of moving parts
  • Use a fused supply
  • Inspect seals after deep water crossings

Specifications

Brand Rigid Industries
Part number 20201
UPC 815711011951
Series Radiance Pod
Back-light Blue, independently controlled
Housing 3 inch square, black
Mounting Surface, brackets included
Voltage 9-15 V DC
Watts 15
Amp draw 1
LEDs 3
Raw lumens 900
Waterproof rating IP68
Beam Fog

Vehicle fitment

This is a universal pod with no year, make or model listed. The surface mount and brackets set the fit, so pick a flat spot on the vehicle that suits a 3 inch square pod.

Confirm your vehicle’s year, model and trim before ordering any bracket.

Installation notes

The pod runs on 9 to 15 volts DC, so it should be wired to a fused DC supply that matches that range. Check local rules on colored back-lighting before using it on public roads.

What’s included

Two Radiance Blue back-light pods with mounting brackets.

SKU: RIG20201 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 9.00 × 7.00 × 7.00 in
brands

Questions & Answers

What is the back-light on the Radiance Blue pod?

The back-light is blue and independently controlled, so it can run apart from the main light. The same pod is also offered with white, green, amber and red back-lights.

What voltage does the Radiance Blue 20201 run on?

The pod runs on 9 to 15 volts DC. It is rated at 15 watts with an amp draw of 1, and it has three LEDs with 900 raw lumens.

Is the Radiance Blue pod waterproof?

Yes. It is IP68 rated, with an alloy housing and heatsink and a high impact polycarbonate lens. It is sold as a pair with brackets included.

Can the back-light be used without the main light?

Yes. The back-light is controlled independently, so it can run without the main light. This lets you use the glow for ambient or low-level lighting when the full beam is not needed.

How do I clean the lens of a black pod?

Wipe the polycarbonate lens with a soft cloth and mild soapy water, then dry it. Avoid harsh solvents and abrasive pads that can cloud the lens. Check the seal around the lens after cleaning to keep the IP68 rating effective.
