Overview

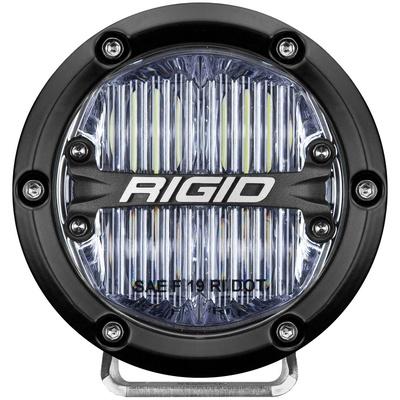

The Rigid Industries 360-Series PRO SAE Fog Light Kit (White), part number 36120, is an SAE compliant white LED fog light kit. It was developed for dust, fog and other low-visibility conditions while being legal for use on the street.
It produces 3100 lumens, draws 2.14 amps and is rated for 50,000 hours of LED life. The lights meet SAE J583 and use a long range, high intensity beam.
Key features
- SAE J583 compliant white LED fog lights
- 3100 lumens
- 2.14 amps draw
- 50,000 hour LED life
- Long range, high intensity beam
- Developed for low-visibility conditions
Wiring and relay sizing
Lights that draw a few amps should not run straight from a dash switch. A relay sends the current through a heavy-gauge circuit while the switch carries only the small control signal, which keeps the switch cooler and the wiring safer. Fuse the feed close to the battery and route the wire away from moving parts and hot exhaust areas.
LED fog lights hold their output for a long time, but the driver and connections still need clean, tight joints. Check the ground point for paint or rust before final mounting, and seal splices with heat-shrink tubing. Aim the lights low after mounting so the beam stays under the fog layer and does not glare into oncoming traffic. Re-check the aim after the first few rough drives.
- Fuse the feed close to the battery
- Use a clean, bare-metal ground
- Seal splices against moisture
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 36120 |
| Light series | 360-Series |
| Light color | White |
| Beam pattern | SAE |
| Lumens | 3100 |
| Amps | 2.14 |
| LED life | 50,000 hours |
| Compliance | SAE J583 |
Vehicle fitment
Universal fit. These lights are not tied to a vehicle, so the mounting spot and wiring decide the placement.
Check the mount and the wiring before ordering to confirm the placement suits your vehicle.
Installation notes
Use a relay and a switch that suit the 2.14 amp draw, and aim the lights low for fog use after mounting.
What’s included
The 360-Series PRO SAE white fog light kit.
