Overview

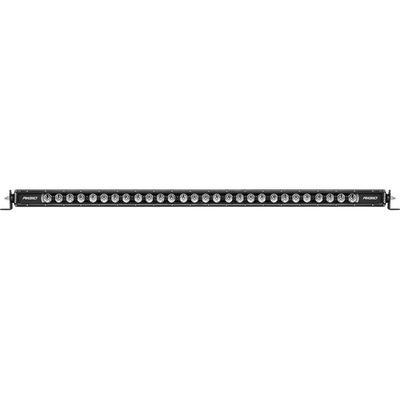

The Rigid Industries Radiance Plus SR-Series RGBW Blacklight 40 Inch LED Light Bar (part 240603) is a single row bar built around RGB LEDs for back-lighting. A switch lets the owner choose among eight back-light options: red, green, blue, light blue, purple, amber, white or rotating. The forward optics are broad spot, and the bar is 40 inches long.
The Radiance Plus shares the sleek, low-profile, high-grade aluminum alloy housing of the SR-Series, but its internal layout differs. This bar has a black exposed circuit board, optimized forward projecting optics and prominent RIGID branding plates. The Radiance Plus line is part of the wider Radiance lighting family, which offers several back-light options through the same switch. Its build quality matches the rest of the RIGID range.
Key features
- Eight back-light options toggled with a switch
- RGB LEDs for the back-lighting
- Broad spot forward optics
- Single row LED layout
- Black exposed circuit board
- Low-profile high-grade aluminum alloy housing
- RIGID branding plates
Long bars and mounting length
A 40 inch bar is long enough that its ends and middle carry different loads, so the mounting plan matters. Check the mounting surface along the full length, and avoid spots where the bar would sit on a flex point. Measure the path the bar will follow, including the wire route, before drilling any holes.
The back-light works best when the bar is installed level and sealed. Use the housing seals and connectors correctly, and check them after each season of rough use. Related parts often replaced alongside a light bar include the brackets and the wiring harness, since both take the vibration of a long bar. Keep the lens clean so the broad spot pattern is not dimmed by road film.
- Check the mounting surface along the full bar length
- Plan the wire route before drilling
- Inspect seals and connectors each season

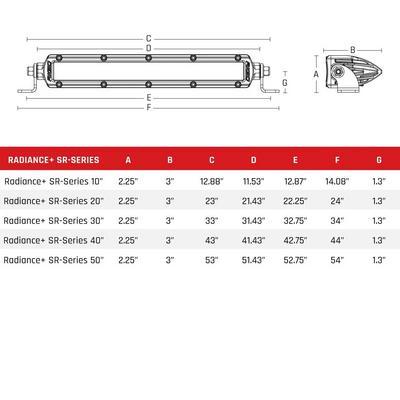

Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 240603 |
| Light series | Radiance Plus SR-Series |
| Light type | RGBW LED light bar, single row |
| Size | 40 inch |
| Beam pattern | Broad spot |
| Back-light options | Red, green, blue, light blue, purple, amber, white, rotating |
| Housing | High-grade aluminum alloy, low profile |
| Circuit board | Black, exposed |
Vehicle fitment
Universal fit applies, so the bar is not sized for one vehicle. Its 40 inch length and the mounting location decide where it can go. Measure the mounting area for a 40 inch bar before drilling.
Installation notes
Plan the power feed and the switch location before wiring the bar, since the back-light mode is chosen with the switch. Fuse the feed for the bar’s load, and check local rules for accent and auxiliary lighting on public roads.
What’s included
One 40 inch Radiance Plus SR-Series light bar. Confirm what is supplied, including any harness or mounting hardware, before ordering.
