Overview

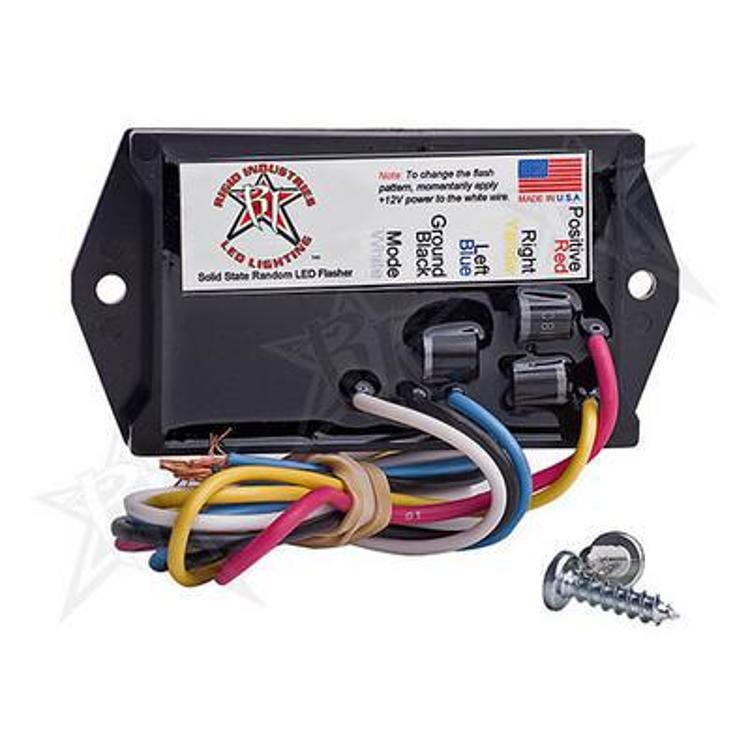

The Rigid Industries 6 Amp LED flasher, item 40612, is a black 12 volt flasher with two outputs for Rigid LED lights. It is universal fit and flashes lights up to 10 inches in several flash patterns.
The housing is waterproof, and the flasher can run one complete section of 10 inches or smaller, or two separate sections that don’t exceed 10 inches.
Key features
- Flashes up to 10 inches of Rigid LEDs
- Two outputs
- Waterproof housing
- Black finish
- 6 Amp rated flasher
Wiring and road-use checks
A flasher controls how the lights blink, so the wiring between the power source, the flasher and each light section matters as much as the unit itself. Run the feed through a fuse close to the battery, and route cables away from moving parts, hot exhaust and sharp edges. Before any light is mounted on a vehicle used on public roads, check local rules on flashing lights, since many areas restrict certain colors and patterns for civilian vehicles.
Waterproof housings help in rain and road spray, but connectors still need sealing. Use heat-shrink tubing or dielectric grease on splices, and check the wire insulation after the first few trips. If the lights stop flashing or flicker, test the power at the flasher before replacing any part, because a loose ground is a common cause.
- Fuse the feed close to the power source
- Seal splices and connectors against moisture
- Check local rules before mounting on a road vehicle
- Test power at the flasher when lights flicker
Specifications
| Brand | Rigid Industries |
|---|---|
| Item number | 40612 |
| UPC | 815711012958 |
| Amperage | 6 Amp |
| Voltage | 12 volt |
| Outputs | 2 |
| Color | Black |
| Housing | Waterproof |
| Mounting type | Universal |
| Fitment | Universal Fit |
Vehicle fitment
This flasher is universal fit and is not vehicle-specific. Compatibility depends on the Rigid LEDs connected to it.
Installation notes
Protect the circuit with a fuse, and confirm local road-use rules before mounting lights on a vehicle used on public roads.
What’s included
Lights and wiring must be bought separately to complete the setup.
