Overview
The Revtek 425 is a 3-inch spacer lift that uses coil spring spacers, lift blocks and a U-bolt kit to raise the vehicle. The lift height range is 3 to 4.99 inches. The kit works with manual or automatic hubs and is designed to reduce front-end dive and roll for better handling.
The kit requires longer rear shocks, which are not included, so plan to buy them with the lift.
Key features
- 3-inch lift with coil spring spacers
- Lift blocks and U-bolt kit for the rear
- Works with manual or automatic hubs
- Designed to reduce front-end dive and roll
Before you install
Spacer lifts keep the factory springs and add height with coil spring spacers above the axle or strut. Because the spring is being raised rather than replaced, the stock ride height is set by the spacer thickness and the shock length, so the shocks are the part most often replaced with a lift like this. Shocks that are too short will bind at full droop and wear quickly, so measuring the existing shock length and comparing it to the new extension requirement is a sensible first step.
Rear lift blocks and U-bolts change the pinion angle, which can add vibration, so driveline angles should be checked after the job is complete. Brake lines and the parking brake cable may also need to be reviewed, since the axle sits at a different height. Re-torque the U-bolt nuts after the first few drives and inspect the spacers and blocks periodically for cracks or looseness.
Specifications
| Brand | Revtek |
|---|---|
| Part number | 425 |
| UPC | 811323010016 |
| Lift height | 3 inches |
| Lift height range | 3 to 4.99 inches |
| Maximum recommended wheel size | 15×18, or 16×8 with medium offset |
| Suspension type | Spacer |
| Rear lift method | Lift block and add-a-leaf |
| Shocks | Not included; longer rear shocks required |
| Fitment type | Direct fit |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit requires longer rear shocks, so plan to buy them with the lift. The lift blocks and U-bolts go on the rear axle, and the kit works with either manual or automatic hubs.

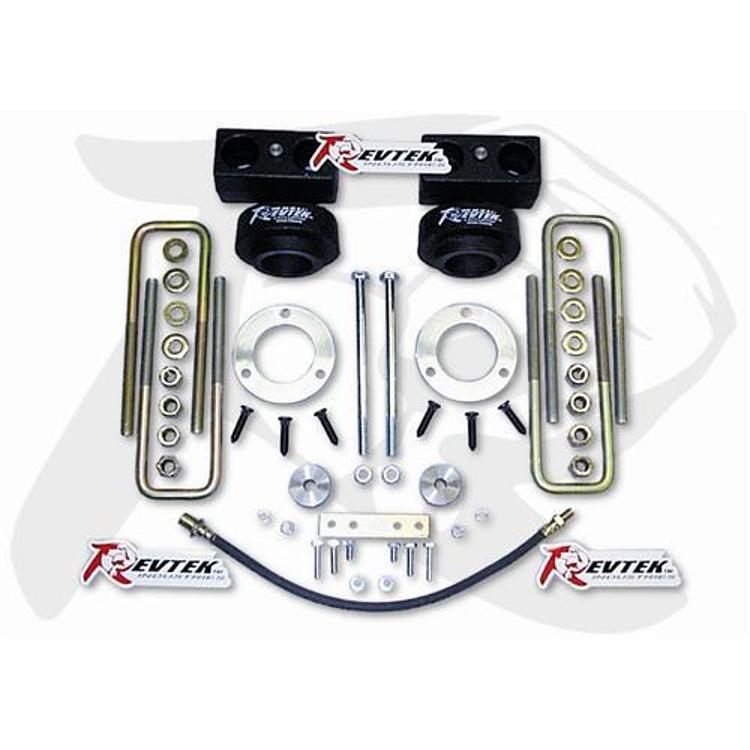

What’s included
- Coil spring spacers
- Lift blocks
- U-bolt kit
- Hardware
Not included: shocks, which must be longer rear shocks.
