Overview
The Revtek 432N is a split spacer suspension lift that raises the front 3 inches and the rear 2 inches. The lift height range is 2.5 to 3.5 inches, and the kit is built on Revtek’s split spacer system, which keeps the factory suspension geometry in place. It is made in the USA.
Key features
- 3-inch front and 2-inch rear split spacer design
- Polyurethane rear spacers
- Works within the OEM suspension geometry
- Bolt-on installation with no cutting or welding
Spacer lifts and everyday driving
Split spacer lifts keep the factory suspension parts in place, so the truck still drives much like it did before. The main changes are the higher ride height and the new position of the wheels in the wheel well. Those changes can affect tire clearance at full steering, so it is worth checking that the tires and fenders still have room.
Polyurethane spacers are firm and hold their shape, but they can crack or compress after years of heat and load. Inspect them during routine service, along with the mounting hardware. Keep the hardware snug after the first drives, since spacer lifts can settle a little when new.
- Check tire clearance at full steering
- Inspect polyurethane spacers for cracks
- Retighten hardware after the first drives
Specifications
| Brand | Revtek |
|---|---|
| Kit number | 432N |
| UPC | 811323012300 |
| Front lift | 3 inches |
| Rear lift | 2 inches |
| Lift height range | 2.5 to 3.5 inches |
| Rear spacer material | Polyurethane |
| Shocks | Not included |
| Fitment type | Direct fit |
Vehicle fitment
Match the year, model and trim to your truck before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit is bolt-on, so no cutting or welding should be needed. The shocks are not included, so check the length of the existing shocks against the new ride height before installing.

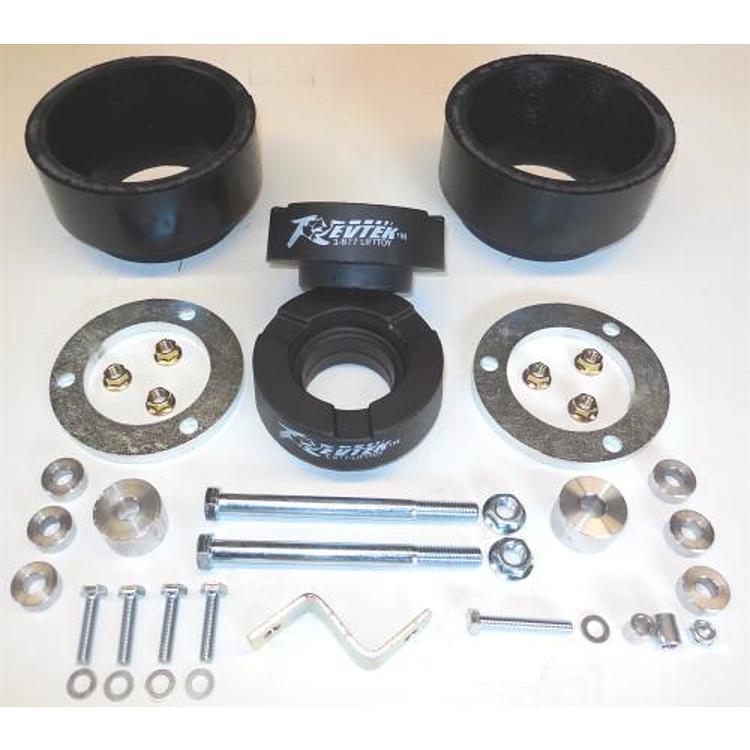

What’s included
Inspect everything in the box against the installation steps before starting work.
