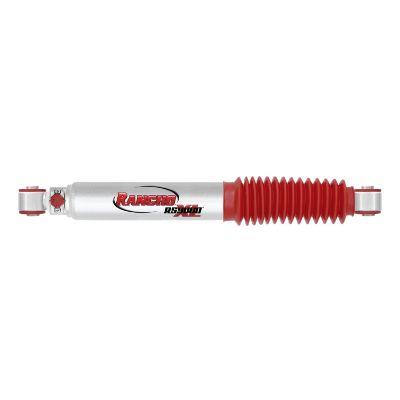

Rancho RS9000XL Shock Absorber – RS999316

Rancho

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2015–2020 Ford F-150 4WD models
  • Rear position with a 2.75 in (70 mm) tri-tube body
  • Compressed length 18.17 in, extended length 29.38 in, travel 11.21 in
  • Nine manually adjustable damping positions
  • Gas charged, with a protective boot

Description

Overview

The Rancho RS9000XL rear shock absorber (part number RANRS999316) is a gas-charged, nine-position adjustable shock for the 2015–2020 Ford F-150 4WD. The RS9000XL series is built for on- and off-road trucks, SUVs and Jeeps. Its adjustable damping counters the extra unsprung mass that larger tire and wheel combinations add, and it suits towing as well.

The RS9000XL is the first 9-position manually adjustable ride control series in the off-road market. Each unit is engineered and manufactured in the U.S. and comes with a 90-day free ride offer and a limited lifetime warranty.

Key features

  • Nine damping positions, set by hand
  • 2.75 in (70 mm) tri-tube body
  • Gas-charged construction
  • Protective boot
  • Rear position for 4WD trucks
  • Engineered and manufactured in the U.S.

Signs of a worn shock

A rear shock works with the springs, bushings and tires to control body motion over bumps and during braking. When damping fades, the truck may bounce after dips, float over washboard, or feel loose at highway speed. Fluid on the shock body, a torn boot, or a clunk at the mounts are all reasons to inspect it closely.

Adjustable shocks are often paired with larger tires or a suspension lift, since heavier wheels change how the damper has to work. If you carry a load or tow, a firmer damping setting may suit the job better than a light setting. Change the setting with the truck parked and the shock cool.

  • Check the boot for tears after trail runs
  • Look for oil residue along the shock body
  • Inspect the upper and lower mounting bushings

Specifications

Brand Rancho
Part number RANRS999316
Series RS9000XL
Position Rear
Shock type Tri-tube, gas charged
Body diameter 2.75 in (70 mm)
Compressed length 18.17 in
Extended length 29.38 in
Travel length 11.21 in
Damping adjustment 9 positions
Lift or drop 0 in (no lift)
Fitment Direct fit

Vehicle fitment

It fits the 2015–2020 Ford F-150 4WD across the XL, XLT, Lariat, Limited, Platinum and Raptor trims. Confirm fit against your vehicle’s year, model and trim before ordering.

Model years outside 2015–2020 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A protective boot is part of this shock. Check the package contents against your installation before starting.

Fitment

VehicleYearsTrims
Ford F-1502015–2020King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Rancho RS9000XL fit a 2014 Ford F-150?

No. It fits 2015–2020 Ford F-150 4WD models only. Model years outside that range are not covered, so verify the year of your truck before buying.

How many damping settings does the RS9000XL have?

Nine. The RS9000XL is a nine-position, manually adjustable shock, so the damping is set by hand at the shock itself.

What are the length and travel figures for this shock?

Compressed length is 18.17 inches and extended length is 29.38 inches. Travel length is 11.21 inches, and the body is 2.75 inches (70 mm) in diameter.

How do I know when the rear shocks need replacing?

Common signs include fluid on the shock body, a bouncy ride after bumps, and new noise at the mounts. Inspect the shock and its bushings during routine service, and replace the unit when the damping feels weak or uneven.

Should the rear shocks be replaced in pairs?

Replacing both rear shocks together keeps the ride even from side to side. Mismatched damping can pull the truck toward one side or leave the rear feeling unsettled over bumps.
