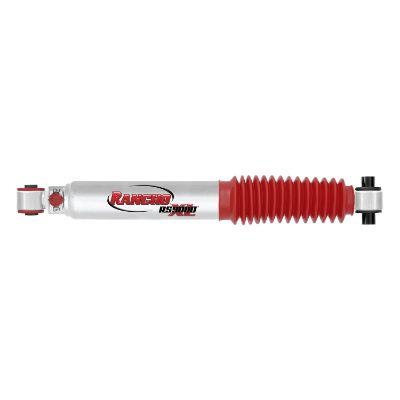

Rancho RS9000XL Shock Absorber – RS999063

Rancho

$142.27In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS9000XL front tri-tube shock for 2018–2019 Jeep Wrangler JL and 2020 Gladiator
  • Stock height, compressed 16.56 inches, extended 21.96 inches
  • Large 2.75-inch (70 mm) tri-tube body with nine-position tuning
  • Part number RANRS999063

Description

Overview

The Rancho RS999063 is a front RS9000XL tri-tube shock for the 2018 and 2019 Jeep Wrangler (JL) in two-door and Unlimited four-door body styles, and for the 2020 Jeep Gladiator. It is built for stock height with no lift or drop, so a lifted Wrangler needs a different unit.

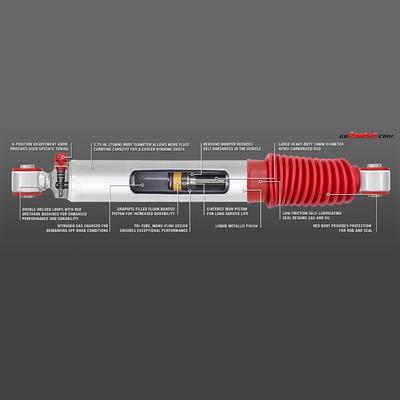

The shock has a compressed length of 16.56 inches, an extended length of 21.96 inches and 5.40 inches of travel. It features a large 2.75-inch (70 mm) tri-tube body and nine-position tuning technology.

The RS9000XL is a nine-position manually adjustable series for trucks, SUVs and Jeeps. Its damping can counteract the extra unsprung mass of larger tire and wheel combinations, and a protective boot is included.

Key features

  • Front tri-tube shock at stock height
  • Nine-position tuning technology
  • Large 2.75-inch (70 mm) tri-tube body
  • Protective boot

Before you buy

Shock absorbers do most of their work controlling body motion after a bump or dip, so the front units shape how the steering and ride feel at speed. On a Wrangler JL or Gladiator, the front shocks also work with the coil springs and control arms to keep the tires in contact with uneven ground. Worn units usually show up as bouncing after bumps, a nose dive under braking, or a loose, floaty feel on the highway.

When choosing a replacement, match the mounting style and length to your vehicle’s ride height before comparing tuning features. Replace shocks in pairs on the same axle so both sides damp evenly. After installation, check the mounting hardware and the boot for cracks or leaks, and recheck the bolts after the first few drives.

Specifications

Brand Rancho
Part number RANRS999063
Series RS9000XL
Position Front
Shock type Tri-tube
Lift or drop None
Compressed length 16.56 inches
Extended length 21.96 inches
Travel 5.40 inches
Charge Gas charged

Vehicle fitment

It is a front shock for the 2018 and 2019 Jeep Wrangler (JL) in the two-door Rubicon, Sport and Sport S versions and the Unlimited Rubicon, Sahara, Sport and Sport S versions, plus the 2020 Jeep Gladiator.

The list does not include the Wrangler JK, Wrangler JL model years after 2019, or Gladiator model years other than 2020. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The protective boot is listed with this front shock.

Fitment

VehicleYearsTrims
Jeep Gladiator2020Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S
Jeep Wrangler (JL)2018–2019Rubicon (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS999063 fit a 2021 Jeep Wrangler JL?

No. The Wrangler JL fits 2018 and 2019 model years only. A 2021 model falls outside the fitment range, so confirm your vehicle's year, model and trim before ordering.

How much travel does the RS999063 have?

The travel is 5.40 inches, with a compressed length of 16.56 inches and an extended length of 21.96 inches. The shock is designed for stock height, so it suits vehicles without a lift or drop.

Is the RS999063 a tri-tube shock?

Yes. It is a tri-tube shock with a large 2.75-inch (70 mm) body and nine-position tuning technology. The shock is a gas-charged unit, and its compressed length is 16.56 inches.

How can I tell if the front shocks need replacing?

Worn front shocks usually cause bouncing after bumps, a nose dive when braking, or tires that lose contact on washboard roads. Look for oil on the shock body or a damaged boot. Replacing them in pairs keeps the ride even from side to side.
