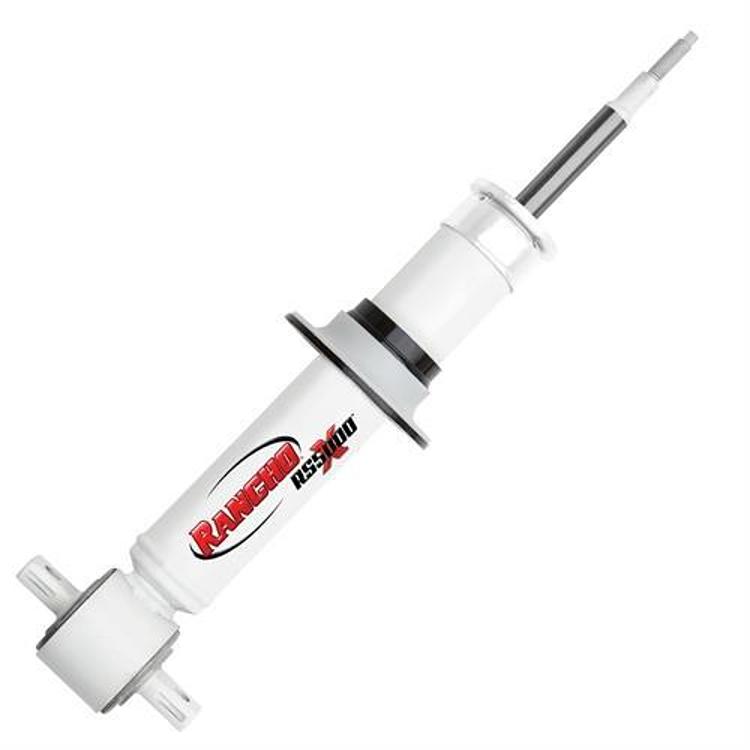

Rancho RS5000X Series Suspension Strut Assembly – RS55831

Rancho

$141.97In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 2:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS55831, RS5000X Series suspension strut assembly
  • Compressed length 13.98, extended length 17.48 and travel 3.5 (no units given)
  • Patented rebound valving system
  • Direct fit; no vehicle named

Description

Overview

The Rancho RS55831 is an RS5000X Series suspension strut assembly listed at 13.98 compressed, 17.48 extended and 3.5 travel, with no units given. A strut assembly pairs the damper with a spring mount, so these lengths are what to match first against the strut coming out.

Rancho presents the RS5000X as an engineered design with a rebound valving system that is patented, and its ride engineers tuned the compression phase. No vehicle is named for the RS55831, so the length set is the only application detail given.

Key features

  • Patented rebound valving system
  • Advanced compression phase designed by Rancho engineers
  • Proprietary tuning process for handling
  • Travel length of 3.5

Matching length and load

The length of a strut sets ride height and affects how the spring loads the damper, so a replacement should be close to the original in both compressed and extended length. Measure the old strut from mount center to mount center while it is still installed if you can, and note any spacer or bump stop inside the spring. Worn springs sag, which lowers the vehicle at that corner and can make a new strut bottom out early. If the old spring is weak, replacing it alongside the strut keeps corner height consistent.

Bump stops, dust boots and the top bearing are inexpensive and often inspected at the same time. Cracked rubber or a rough bearing should be replaced before the new strut goes on. Recheck alignment after installation, because a change in length can shift camber and toe.

Specifications

Brand Rancho
Part number RS55831
UPC 39703007238
Series RS5000X
Product type Suspension strut assembly
Compressed length 13.98 (no unit given)
Extended length 17.48 (no unit given)
Travel length 3.5 (no unit given)

Vehicle fitment

Strut dimensions vary by vehicle, so compare the 13.98 compressed and 17.48 extended figures with the strut coming out before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the 13.98 compressed and 17.48 extended figures against the strut you are replacing before fitting, because a length difference changes ride height and how the spring loads the assembly.

What’s included

Includes one RS5000X suspension strut assembly, part RS55831. Check the package contents against your installation before starting.

SKU: RANRS55831 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 23.60 × 5.80 × 5.80 in
brands

Questions & Answers

What length figures does the RS55831 list?

The RS55831 is listed at 13.98 compressed, 17.48 extended and 3.5 travel, with no units given. Measure the strut you are replacing and compare it with these figures before deciding whether this assembly matches your vehicle.

Does the RS55831 fit my vehicle?

Confirm fit against your vehicle's year, model and trim before ordering. Strut dimensions and mounting points vary between vehicles, so compare the length figures and mounts with the strut you are replacing.

Is the RS55831 a complete strut with spring?

Check the package contents on arrival to see whether a spring and mounting hardware come with the assembly. Compare anything supplied with your current strut before you begin installation.

How do I tell if the strut is worn?

Look for oil on the body, a knocking sound over bumps, a bouncy ride or uneven tire wear. Worn struts often lose damping gradually, so compare the front and rear corners side by side and replace the pair when wear is uneven.
