Overview

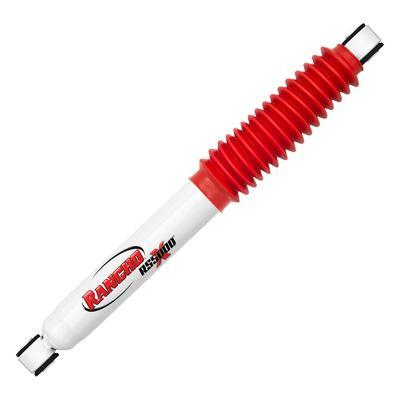

The Rancho RS55394 is a rear RS5000X twin tube shock for the 2004 through 2015 Nissan Titan, in the LE, PRO-4X, S, SE, SL, SV and XE versions. It has no lift or drop.

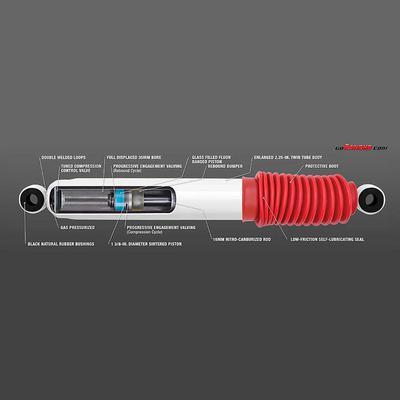

The shock measures 15.06 inches compressed and 24.25 inches extended, with 9.19 inches of travel. It is gas charged, with progressive engagement valving and a tuned compression control valve, and it has an enlarged 2-1/4-inch twin tube body.
Rancho says its Cross-Tuned Technology improves the vehicle’s on and off road handling and performance. The unit uses a 16 mm nitro-carburized rod and a 1-3/8-inch sintered iron piston within a full-displaced 35 mm bore.
Key features
- Rear twin tube shock
- Progressive engagement valving
- Tuned compression control valve
- Enlarged 2-1/4-inch twin tube body, gas pressurized
- 16 mm nitro-carburized rod and full-displaced 35 mm bore
- Rebound bumper, black natural rubber bushings and double-welded loops
- Low-friction, self-lubricating seal, protective boot and glass-filled, Fluon banded piston
Towing and payload effects
Full-size pickups carry heavier loads and tow trailers, which puts sustained work through the rear shocks. Under load, the shocks control the rear axle’s rebound and help keep the tires in contact with the road, so damping that has faded from heat or age is easy to notice on highways and in corners.
Long travel rear shocks also depend on sound bump stops, leaf or coil spring condition and bushing health. When replacing one, check the mounts for play, look at the boot for damage and confirm the rear end tracks straight. Shocks that wear unevenly often point to a bent component or misaligned axle.
- Check mounts for play
- Inspect the boot and shaft for damage
- Look for uneven rear tire wear
Specifications
| Brand | Rancho |
|---|---|
| Part number | RANRS55394 |
| Series | RS5000X |
| Position | Rear |
| Shock type | Twin tube |
| Charge | Gas charged |
| Compressed length | 15.06 inches |
| Extended length | 24.25 inches |
| Travel | 9.19 inches |
| Lift or drop | None |
Vehicle fitment
It fits the 2004 through 2015 Nissan Titan, in the LE, PRO-4X, S, SE, SL, SV and XE versions.
The list does not include Titan model years outside 2004 through 2015, or other Nissan models. Confirm your vehicle’s year, model and trim before ordering.
What’s included
A protective boot is listed with the shock.
