Rancho RS5000X Series Strut – RS55817

Rancho

$122.78In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 9:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS5000X Series front shock for 2002–2009 Chevrolet Trailblazer and related GM SUVs
  • Compressed 11.07 inches, extended 16.08 inches, travel 5.01 inches
  • Progressive engagement valving with a 16 mm rod and 35 mm bore
  • Part number RANRS55817

Description

Overview

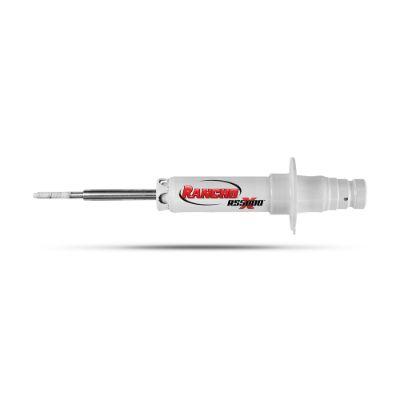

The Rancho RS55817 is a front RS5000X Series shock absorber for 2002 through 2009 Chevrolet Trailblazer models and related SUVs, including the Buick Rainier, Chevrolet SSR, Trailblazer EXT, GMC Envoy and Envoy XL, Envoy XUV, Isuzu Ascender and Oldsmobile Bravada.

The shock has a compressed length of 11.07 inches, an extended length of 16.08 inches and 5.01 inches of travel. It uses progressive engagement valving, a tuned compression control valve and an enlarged 2-1/4-inch twin tube body with gas pressurization.

Rancho says its rebound valving system is a unique and patented design, and that the company’s ride engineers developed it to improve handling and performance on and off road. The unit uses a 16 mm nitro-carburized rod, a full-displaced 35 mm bore and a 1-3/8-inch sintered iron piston.

Key features

  • Front position shock absorber
  • Progressive engagement valving
  • Tuned compression control valve
  • Enlarged 2-1/4-inch twin tube body with gas pressurization
  • Full-displaced 35 mm bore
  • Rebound bumper, black natural rubber bushings and double-welded loops
  • Low-friction, self-lubricating seal, protective boot and glass-filled, fluon banded piston

Matching a replacement front shock

Front shocks on these GM SUVs work with the springs to control body motion over bumps and during braking. The most useful check before buying is length. Compare the compressed and extended measurements of the shock being removed with the new unit, and confirm the mounting style matches. A shock that is too long or too short will bind, reach its bumpers early, or sit poorly in the mounts.

Shocks wear out gradually, so the change in ride is easy to miss. Replacing both fronts together keeps the two sides matched. While the wheel is off, check the upper mount bushings and the rubber bump stop, since a worn mount can make a new shock feel loose or noisy. Keep the protective boot clean and in place to keep grit off the rod.

  • Measure the old shock’s compressed and extended length
  • Confirm the mounting style before ordering
  • Replace fronts in pairs
  • Inspect upper mounts and bump stops

Specifications

Brand Rancho
Part number RANRS55817
Series RS5000X
Position Front
Compressed length 11.07 inches
Extended length 16.08 inches
Travel 5.01 inches
Piston 1-3/8-inch sintered iron
Bore 35 mm, full-displaced

Vehicle fitment

It fits the 2004 through 2007 Buick Rainier, the 2003 through 2006 Chevrolet SSR, the 2002 through 2009 Chevrolet Trailblazer, the 2002 through 2006 Trailblazer EXT, the 2002 through 2006 GMC Envoy and Envoy XL, the 2004 and 2005 GMC Envoy XUV, the 2003 through 2006 Isuzu Ascender and the 2002 through 2004 Oldsmobile Bravada.

The list does not include model years outside the ranges above, or other GM SUVs. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A protective boot comes with the shock.

Fitment

VehicleYearsTrims
Buick Rainier2004–2007CXL, CXL Plus
Chevrolet SSR2003–2006Base
Chevrolet Trailblazer2002–2009Base, LS, LT, LTZ, North Face, SS
Chevrolet Trailblazer EXT2002–2006LS, LT, North Face
GMC Envoy2002–2006Denali, SLE, SLT
GMC Envoy XL2002–2006Denali, SLE, SLT
GMC Envoy XUV2004–2005SLE, SLT
Isuzu Ascender2003–2006Base, LS, Limited, S
Oldsmobile Bravada2002–2004Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS55817 fit a 2010 Chevrolet Trailblazer?

No. The Trailblazer fits only the 2002 through 2009 model years. Check the model year before ordering this front shock, since a 2010 model falls outside that range.

Does the RS55817 fit an Isuzu Ascender?

Yes. The Isuzu Ascender is covered for 2003 through 2006, so a 2005 model is in range. Confirm the year and model before ordering.

How much travel does the RS55817 have?

The shock has 5.01 inches of travel, a compressed length of 11.07 inches and an extended length of 16.08 inches.

How can I tell if a front shock needs replacing?

Common signs include continued bouncing after bumps, oil seeping from the body, uneven tire wear and a nose that dives hard when braking. A simple bounce test helps: press down firmly on a corner and let go. If the corner keeps rocking before it settles, the damper is likely worn.
