Overview

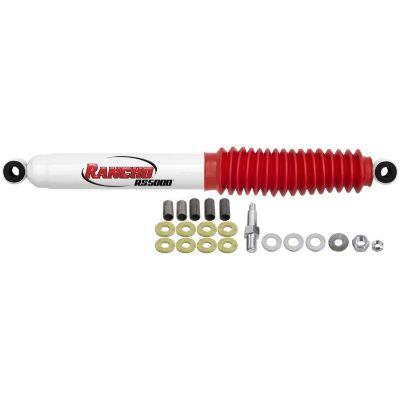

The Rancho RS5000 Series Shock Absorber, part number RS55134, is a rear gas charged shock for the Chevrolet K30, K3500, V30 and V3500 and the GMC K35 and V3500 from 1977 to 1991. It extends to 32.77 in. and is supplied individually.
The shock has been used on light trucks and sport utility vehicles since 1985, and it is available for stock and lifted applications for on and off-road use. It is covered by a limited lifetime warranty.
The shock has ten-stage velocity sensitive valving, a 5/8-in. (16mm) diameter piston rod and a 1 3/8-in. (35mm) diameter piston, with a red protective boot included.
Key features
- Rear position RS5000 Series shock
- Ten-stage velocity sensitive valving
- 5/8-in. (16mm) diameter piston rod
- 1 3/8-in. (35mm) diameter piston
- Red protective boot included
- Gas charged
- Limited lifetime warranty stated by Rancho
Shock wear and replacement
Shock absorbers control how the springs and axle move after a bump, so worn units let the truck bounce and wallow. Common signs include fluid leaking down the body, a bouncy ride after dips, cupping on tire tread and a nose-dive under braking. Gas charged designs hold pressure to resist foaming, which helps keep damping steady on rough roads. Replace a shock when it shows these signs, not only when it is past a set age.
On an older truck, check the mounting bushings and bolts at both ends before fitting a new shock, since worn eyes and brackets can make a new unit feel loose. Replacing both rear shocks at the same time keeps damping even from side to side. Lifted or heavier trucks may need the shocks checked against the new ride height.
- Look for fluid leaks along the body
- Check mounting bushings before fitting
- Replace both rear shocks together for even damping
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS55134 |
| Product type | Shock absorber |
| Series | RS5000 Series |
| Position | Rear |
| Extended length | 32.77 in. |
| Piston rod diameter | 5/8-in. (16mm) |
| Piston diameter | 1 3/8-in. (35mm) |
| Valving | Ten-stage velocity sensitive |
| Gas charged | Gas charged |
| Quantity | Each |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1977-1986 Chevrolet K30 (Cheyenne, Custom, Custom Deluxe, Deluxe, Scottsdale, Silverado), the 1989-1991 Chevrolet K3500 (Cheyenne, Scottsdale, Silverado), the 1987-1988 Chevrolet V30 (Cheyenne, Custom Deluxe, Scottsdale, Silverado), the 1989-1991 Chevrolet V3500 (Cheyenne, Scottsdale, Silverado), the 1977-1978 GMC K35 (Base, High Sierra, Sierra Classic, Sierra Grande) and the 1987-1991 GMC V3500 (Base, High Sierra, SLE, Sierra Classic).
It fits only the models and years shown. Other years of these trucks and other models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing a shock is easier with the axle supported, so put the vehicle on rated jack stands on level ground rather than relying on a jack.
- Tighten the shock bolts to the correct torque for your fasteners and recheck them after the first drives.
- Make sure the new shock does not bind or hit anything at full travel.
- Brake lines and wiring near the shock should have slack through the whole stroke.
What’s included
- One RS5000 Series shock
- Red protective boot
