Rancho 4 Inch Crawler Short Arm System – RS66114B

Rancho

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 2007-2018 Jeep Wrangler JK, 2-door and 4-door
  • Fits tires up to 37 inches
  • Fully adjustable upper and lower control arms with D2 bushings
  • Heavy-duty adjustable front and rear track bars
  • Progressive rate front and rear coil springs
  • 100 percent bolt-on system with a limited lifetime warranty

Description

Overview

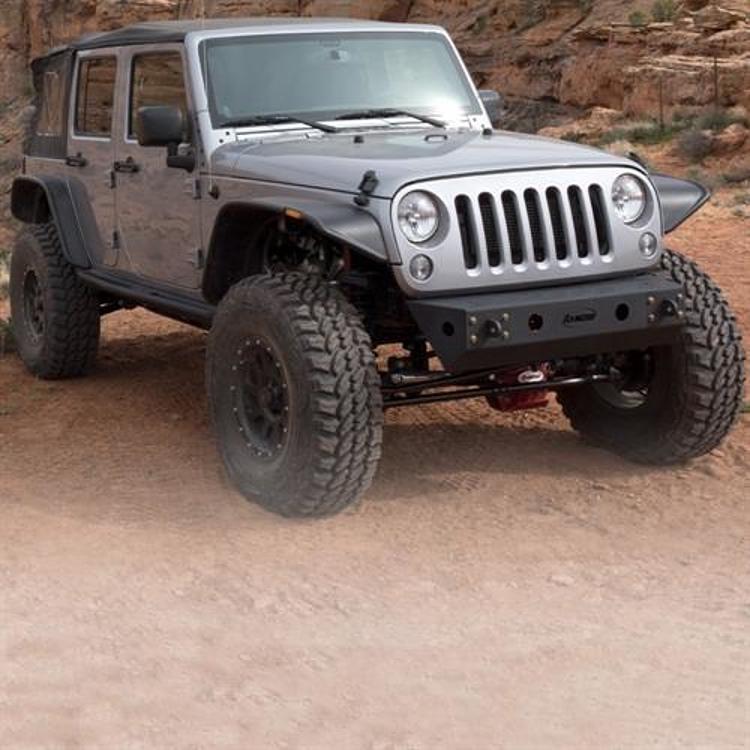

The Rancho RS66114B Crawler Short Arm System is a 4-inch suspension kit for the 2007 to 2018 Jeep Wrangler JK in 2-door and 4-door models. It is a 100 percent bolt-on system built around progressive rate coil springs and fully adjustable upper and lower control arms. The kit is designed to fit tires up to 37 inches.

The RS66114B succeeds the RS66104 and RS66104B kits and adds new heavy-duty front and rear adjustable track bars that center the axles. Its control arms and track bars use D2 bushings with PTFE, which allows grease-free operation, with the sleeve rotating in the bushing without resistance.

Rancho offers a limited lifetime warranty on this suspension system.

Key features

  • Fully adjustable upper and lower control arms with D2 bushings
  • Heavy-duty front and rear adjustable track bars with D2 bushings
  • Progressive rate front and rear coil springs
  • D2 bushings use PTFE for grease-free operation
  • Fits tires up to 37 inches
  • 100 percent bolt-on installation
  • Supersedes the RS66104 and RS66104B kits

Driveline and alignment after a lift

A 4-inch lift changes the geometry the truck was built around. Control arm length and angle shift, which affects caster, pinion angle and how the driveline sits. After installing a short arm system, have an alignment done and check the driveline angles, since the axles can end up at angles that cause vibration if left uncorrected.

Adjustable control arms and track bars give room to set those angles, so take time with the settings rather than running the bolts to a fixed position. Re-check torque on all hardware after the first few trail runs, and inspect the D2 bushings periodically for play or wear. Larger tires add rotating mass and strain, so keep tire size within the range the kit is built for, and recheck clearance at full steering lock.

Specifications

Brand Rancho
Part number RS66114B
UPC 39703009270
Vehicle application 2007-2018 Jeep Wrangler JK, 2-door and 4-door
Tire size Fits up to 37-inch tires
Control arms Fully adjustable upper and lower, with D2 bushings
Track bars Heavy-duty, adjustable front and rear
Rear lift method Coil springs (progressive rate)
Installation 100 percent bolt-on
Warranty Limited lifetime

Vehicle fitment

The kit fits the Wrangler JK in 2-door and 4-door models from 2007 onward, which places it on the 2007 to 2018 Jeep Wrangler JK.

Wrangler JL and TJ models are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Rancho says exhaust cross over pipe RS720003 is required for the (2018-12) build when the front driveshaft is not being replaced. A lift of this size changes alignment and driveline angles, so have both checked once the kit is in.

What’s included

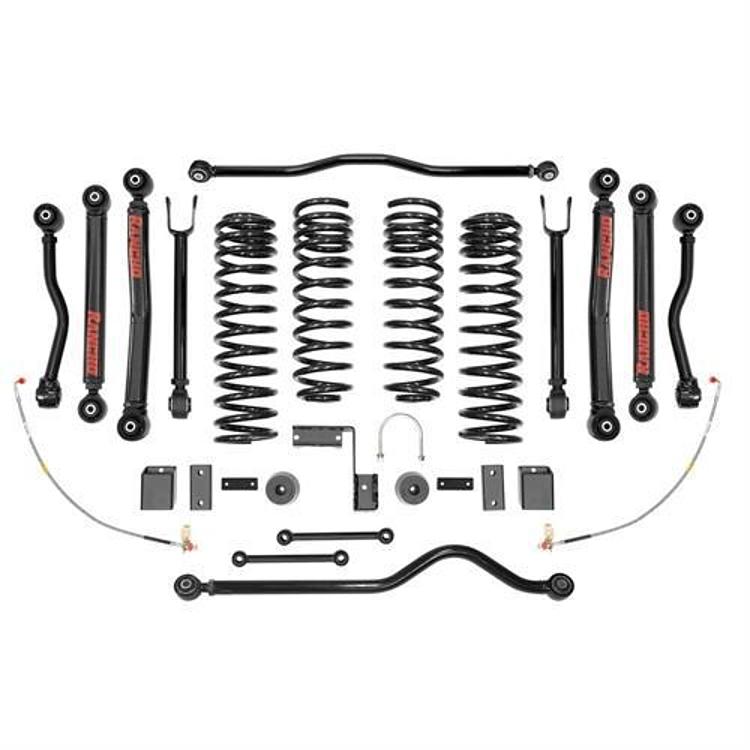

Progressive rate front and rear coil springs, fully adjustable upper and lower control arms with D2 bushings, and heavy-duty front and rear adjustable track bars with D2 bushings.

Not included: the exhaust cross over pipe RS720003, needed on some builds when the front driveshaft is not replaced

SKU: RANRS66114B Category:

Specification

Shipping weight 180.80 lbs
Package dimensions 111.00 × 44.00 × 22.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rancho RS66114B fit a 2008 Jeep Wrangler JK?

Yes, the kit covers the Wrangler JK in 2-door and 4-door models from 2007 onward, which places it on the 2007 to 2018 JK. Confirm your vehicle's year, model and trim before ordering.

Will it fit tires up to 37 inches?

Yes, the kit is designed for tires up to 37 inches. The heavy-duty front and rear adjustable track bars center the axles, which helps the kit handle larger tires.

What is the D2 bushing?

D2 bushings are used in the control arms and track bars. Rancho says they use PTFE for grease-free operation, so the sleeve rotates in the bushing without resistance, which reduces wear.

Do other parts need work when installing a short arm kit?

Often, yes. Brake lines, sway bar links and the driveshaft may need extension or replacement on a lift this size. Check the cross over pipe requirement for your build before starting, and confirm each part's fit before installing.
