Rancho 3.5 Inch Lift Kit – RS66003B

Rancho

Shop Jeep Cherokee XJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS66003B 3.5-inch Jeep Cherokee XJ suspension system with D2 bushing control arms
  • Front coil springs, rear leaf springs and adjustable track bar
  • Allows 31-inch tires without trimming

Description

Overview

The Rancho 3.5-inch XJ Suspension System, part number RS66003B, is a lift for 1984 to 2001 Jeep Cherokee (XJ) models. It also fits the 1999 to 2001 Grand Cherokee (WJ) and 1993 to 1998 Grand Cherokee (ZJ).

The kit uses front upper and lower adjustable control arms with D2 synthetic bushings. The D2 bushing has a firmer inner material and a softer outer material to reduce noise, vibration and harshness, and it is grease free.

The D2 bushings are used in the front upper and lower control arms, and Rancho says they use a firmer inner material and a softer outer material. The result is a control arm bushing intended to reduce noise, vibration and harshness, and the bushings are grease free.

Extended length front brake lines and a rear brake line to the axle are included. The adjustable front track bar helps maintain proper geometry at the new height.

Key features

  • Front upper and lower adjustable control arms with D2 bushings
  • New adjustable front track bar
  • Front coil springs and rear leaf springs
  • Front sway bar links
  • Extended length front brake lines and a rear brake line to the axle
  • Allows 31-inch tires without trimming or 33-inch tires with trimming

Maintaining XJ control arms

XJ front suspensions depend on control arms, bushings and a track bar to keep the axle located as the truck moves over uneven ground. Bushings absorb noise and vibration over time, and worn ones can allow the axle to shift under braking or hard cornering. A lift that changes the arm angles also changes how the joints wear, so the front end is worth a regular look.

Pairing the front and rear lift with a matching shock package keeps the ride balanced. Sway bar links should be inspected for play, and the track bar ends should be checked for tightness. Brake lines are often replaced at the same time as the lift, since the new height can stretch the stock lines.

  • Inspect control arm bushings at each service
  • Check track bar ends for play
  • Look for wear on the sway bar links

Specifications

Brand Rancho
Part number RS66003B
Lift height 3.5 inches
Front springs Coil
Rear springs Leaf
Bushings D2 synthetic, grease free
Tire size 31-inch untrimmed or 33-inch with trimming
Shocks Not included

Vehicle fitment

It fits these vehicles:

  • 1984 to 2001 Jeep Cherokee (XJ)
  • 1999 to 2001 Jeep Grand Cherokee (WJ)
  • 1993 to 1998 Jeep Grand Cherokee (ZJ)

Other Cherokee and Grand Cherokee generations are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit includes new front coil springs, rear leaf springs and U-bolts. Shocks are not included, so a shock package must be chosen separately. A limited lifetime warranty applies to this suspension system.

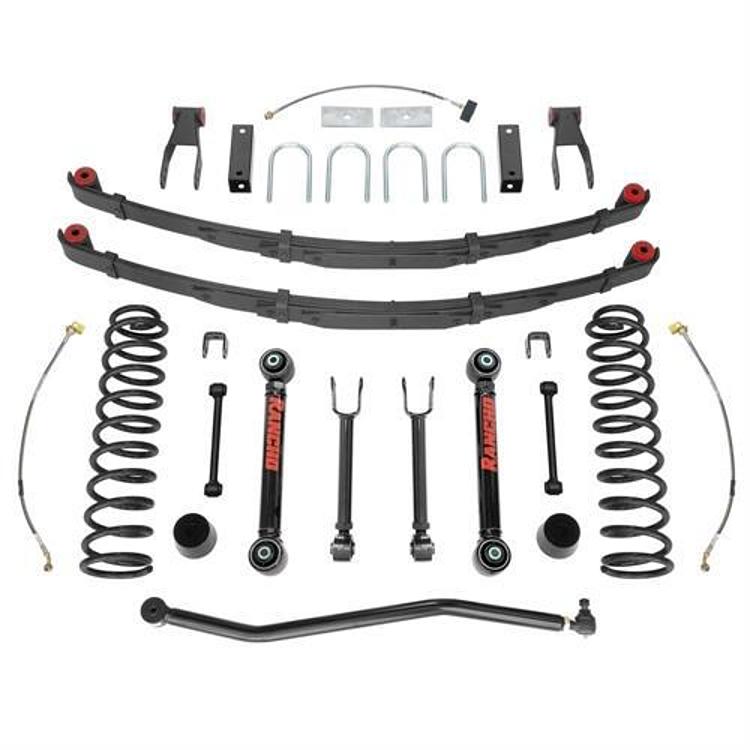

What’s included

Front upper and lower adjustable control arms with D2 bushings, front coil springs, rear leaf springs, front sway bar links, rear shackles, shims, U-bolts, extended front brake lines, a rear brake line to the axle, and a new adjustable front track bar. Not included: shocks.

SKU: RANRS66003B Category:

Specification

Shipping weight 162.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–2001Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Grand Cherokee (WJ)1999–2001Laredo, Limited
Jeep Grand Cherokee (ZJ)1993–19985.9 Limited, Base, Laredo, Limited, Orvis, SE, TSi

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS66003B fit a 1998 Jeep Grand Cherokee ZJ?

Yes. The kit fits 1993 to 1998 Grand Cherokee (ZJ) models, as well as 1984 to 2001 Cherokee (XJ) and 1999 to 2001 Grand Cherokee (WJ). Confirm fit for your year and model first.

How large a tire will the kit run?

It allows 31-inch tires without trimming, or 33-inch tires with trimming. It is designed for increased flexibility and versatility off road.

What warranty does the RS66003B carry?

The suspension system carries a limited lifetime warranty. Keep your purchase records with the kit in case you need to make a claim.

How often should the bushings and track bar be inspected?

Inspect the control arm bushings, track bar ends and sway bar links at every oil change or tire rotation. Look for cracks, torn boots, play at the joints and uneven tire wear, since those signs point to worn steering geometry.
