Overview

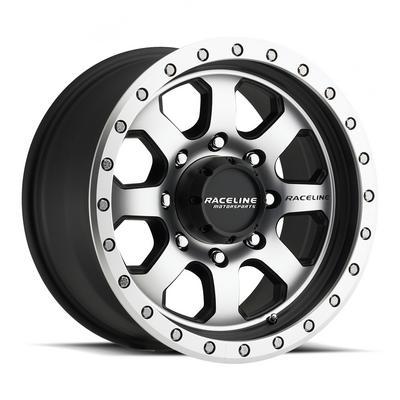

The Raceline Wheels Avenger 929 in Black/Machined, part number RLW929M-79081-12, is a 17×9 aluminum spoke wheel with an 8 on 170 bolt pattern. It is 17 Inches in diameter and 9 Inches wide, with an offset of -12, a center bore of 131 and a backspacing of 4.5.
Raceline Wheels builds the 929 Avenger in a racing-derived design, and this 17×9 Black/Machined spoke wheel is part of that series. No vehicle is named, so start by matching the 8 on 170 bolt pattern and 131 center bore.
Key features
- Black/Machined finish on a spoke design
- 17 Inches diameter and 9 Inches width
- 8 on 170 bolt pattern
- Offset of -12, backspacing of 4.5 and center bore of 131
- Part of the 929 Avenger series
Choosing the right setup
A wheel’s offset, backspacing and width decide how it sits under the fender and against the suspension. Before buying a 17-inch aluminum spoke wheel, measure the space between the hub face and the inner fender and brake caliper. Tire size matters too, because a wider wheel changes the tire’s sidewall position and rolling diameter. Check the tire and wheel combination together rather than one at a time.
Spoke wheels with a machined face need routine cleaning around the spokes, where brake dust collects. Inspect the spoke roots and the bead area after rough trail runs, and look for cracks or bends that would affect how the tire seats.
- Check offset clearance at full steering lock
- Confirm tire size against the wheel width
- Inspect spoke roots after rough trail use
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW929M-79081-12 |
| Series | 929 Avenger |
| Diameter | 17 Inches |
| Width | 9 Inches |
| Bolt pattern | 8 on 170 |
| Offset | -12 |
| Center bore | 131 |
| Backspacing | 4.5 |
| Style | Spoke |
| Finish | Black/Machined |
| Construction | Aluminum |
| Fitment label | Universal Fit |
Vehicle fitment
This wheel carries the Universal Fit label and is not tied to a named make, model or year. Match the 8 on 170 bolt pattern and 131 center bore to your hub first.
Check the 8 on 170 bolt pattern and 131 center bore against your hub, then review offset clearance. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 8 on 170 pattern and 131 center bore must both match the hub before mounting. The -12 offset moves the mounting face outward, so check tire clearance at full steering lock. Confirm the lug seat style before torquing, and match your lug nuts to it.
What’s included
The wheel is listed on its own. Not included: tires, lug nuts, center caps and valve stems.
