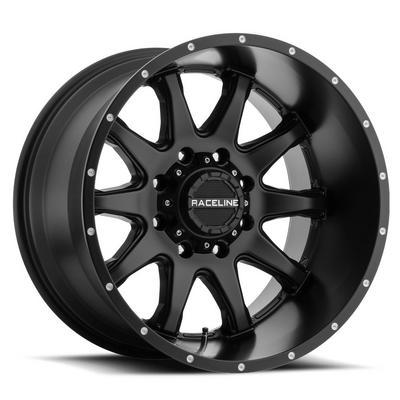

Raceline Wheels Shift, 20x9 with 6x5.5 Bolt Pattern – Satin Black – 930B-29060-00

Raceline Wheels

Shop Raceline Wheels 20x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 20×9 inch aluminum spoke wheel in satin black
  • 6 on 5.5 bolt pattern, center bore 106, offset 0
  • Backspacing 5 and part number RLW930B-29060-00
  • Part of the 930 Shift series, Universal Fit

Description

Overview

The Raceline Wheels Shift 20×9 is a 20-inch aluminum spoke wheel, 9 inches wide, in satin black, part number RLW930B-29060-00. It belongs to the 930 Shift series and has a 6 on 5.5 bolt pattern, a center bore of 106, an offset of 0 and a backspacing of 5. It is sold as universal fit, so hub measurements decide whether it mounts.

Raceline built this wheel with performance engineering rooted in off-road racing. Its spoke design, satin black finish and aluminum build are the main visible traits. Because it is not tied to a named vehicle, the center bore of 106 and the 6 on 5.5 bolt pattern are the first checks before mounting.

Key features

  • 20 inch diameter and 9 inch width
  • Spoke style in satin black
  • Aluminum construction
  • 6 on 5.5 bolt pattern and center bore of 106
  • Offset of 0 and backspacing of 5
  • Part of the 930 Shift series

Offset and backspacing

Offset and backspacing decide where a wheel sits relative to the hub and the inside of the fender. A wheel with an offset of 0 places the mounting face on the centerline, so the tire moves outward or inward depending on the vehicle. Backspacing is the distance from the mounting face to the inside lip, which sets the room for brake calipers, control arms and axle components. When replacing a wheel, compare these two figures with the original rather than focusing on diameter and width alone.

Wheel width and tire width work together. A 9-inch wide wheel accepts a range of tire widths, but the tire sidewall and tread must clear the fender and suspension at full compression. Off-road owners should check clearance during articulation as well as at rest. Hub-centric rings help when the center bore is larger than the hub, and the lug seat style should match the wheel before tightening. Recheck the lug nuts after the first drive and inspect the wheel lip after rough trail use.

Specifications

Brand Raceline Wheels
Part number RLW930B-29060-00
Series 930 Shift
Style Spoke
Finish Satin Black
Construction Aluminum
Wheel diameter 20 inches
Wheel width 9 inches
Offset 0
Backspacing 5
Center bore 106
Bolt pattern 6 on 5.5

Vehicle fitment

No vehicle is named for this 20×9 wheel, so the hub measurements decide the match. Compare the 6 on 5.5 bolt pattern and center bore of 106 with your hub, and check that the wheel clears brakes and suspension.

This wheel fits by hub measurement, so match the bolt pattern and center bore to your hub. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

A center bore of 106 must suit your hub or be centered with hub-centric rings. Offset of 0 places the mounting face on the centerline, and backspacing of 5 gives the room behind the mount for calipers and suspension parts. Check both before mounting.

What’s included

This is the wheel only. Check the package contents against your installation before starting.

Not included: tires.

SKU: RLW930B-29060-00 Categories: ,

Questions & Answers

What bolt pattern and center bore does the Shift 20x9 use?

It uses a 6 on 5.5 bolt pattern and a center bore of 106. Offset is 0 and backspacing is 5.

Is this a spoke wheel?

Yes. It is a spoke style wheel, 20 inches in diameter and 9 inches wide, with a satin black finish on aluminum, part of the 930 Shift series.

Does it fit my vehicle?

It is sold as universal fit, so it is not tied to a specific year, make or model. Check the hub bolt pattern, center bore and clearance before mounting.

How soon should lug nuts be checked on new wheels?

Recheck the lug nuts after the first short drive and again at regular intervals, because new wheels can settle slightly against the hub. Use a torque wrench and tighten in a star pattern.

Can hub-centric rings make up for a larger center bore?

Hub-centric rings fill the gap when a wheel's center bore is larger than the hub, so the wheel centers on the hub rather than on the lug studs. They do not change the bolt pattern, so a wheel with the wrong pattern still will not mount.
