Raceline Wheels Aero, 17x8.5 with 6x139.7 Bolt Pattern – Satin Black – 952B-78560-00

Raceline Wheels

Shop Raceline Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Raceline Aero 17×8.5 aluminum wheel, Satin Black
  • 6 on 139.7 bolt pattern, 106 center bore
  • 0 offset, 4.72 backspacing
  • Snap-in cap with debossed Raceline logo

Description

Overview

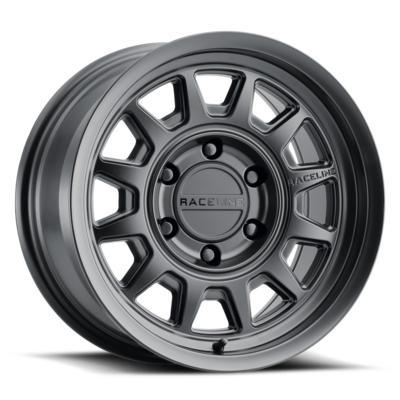

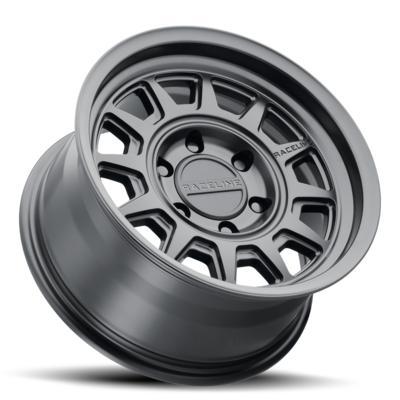

The Raceline Wheels Aero 952B-78560-00 is a 17×8.5 aluminum wheel with a 6×139.7 bolt pattern in a Satin Black finish.

The 952 Aero series has a 106 center bore, 0 offset and 4.72 backspacing. The wheel is made from heavy duty A356 aluminum with a smooth stepped outer lip for a retro feel, and it comes with a color matched snap-in cap that has a debossed Raceline logo. It passes or exceeds all DOT standard load ratings. The catalog number is RLW952B-78560-00.

The Raceline Aero is a spoke style wheel with a smooth stepped outer lip that adds a retro feel. The wheel is 17 inches in diameter and 8.5 inches wide, and the 6 on 139.7 bolt pattern is the first dimension to match against your vehicle.

The style is also offered in Bronze and Machined finishes, and in 16 inch and 17 inch diameters for most trucks. Hub centric fitments are available for select vehicles.

Key features

  • 952 Aero series, 17×8.5 spoke style
  • 6 on 139.7 bolt pattern
  • Heavy duty A356 aluminum construction
  • Smooth stepped outer lip for a retro feel
  • Color matched snap-in cap with a debossed Raceline logo
  • Passes or exceeds all DOT standard load ratings.
  • Satin Black finish

Stepped lip and spoke design

A stepped outer lip changes how the wheel meets light and the tire edge, and it gives a more vintage look than a flat-faced spoke. Stepped lips also collect more road grime in the groove, so a soft brush and mild soap work better than close-range pressure washing around the lip and cap.

Spoke wheels rely on a clean hub face for accurate seating. Clean the mounting surface and the back of the wheel before installation, and check that no paint or corrosion sits between the wheel and hub. Hub centric rings can help when the center bore is larger than the hub, so confirm sizing before buying any spacer or ring.

The snap-in cap is a press fit, so it can pop out after hard impacts or washing. Keep a spare cap on hand, and inspect the cap seat at each wheel service. Satin finishes on aluminum show scuffs more readily, so touch-up paint or a gentle polish helps keep the surface even over time.

Specifications

Brand Raceline Wheels
Part number 952B-78560-00
Catalog number RLW952B-78560-00
Series 952 Aero
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 6 on 139.7
Offset 0
Center bore 106
Backspacing 4.72
Style Spoke
Construction Aluminum (A356)
Finish Satin Black
Fit type Universal fit

Vehicle fitment

It is a universal fit wheel, and no vehicle, year or chassis code is tied to it. The series comes in 16 inch and 17 inch diameters for most trucks, and hub centric fitments are offered for select vehicles.

Match the 6 on 139.7 bolt pattern, offset and center bore to your vehicle. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Before mounting the Aero, compare its bolt pattern, center bore, offset and backspacing with your hubs, and make sure the brakes and suspension have clearance. Tighten the lug nuts in a star sequence to the vehicle’s torque value, then recheck them after a short drive.

What’s included

The wheel comes with a snap-in cap.

Not included: Lug nuts are not included.

SKU: RLW952B-78560-00 Categories: ,

Questions & Answers

What bolt pattern does the Raceline 952B-78560-00 have?

The bolt pattern is 6 on 139.7. The wheel is 17 inches in diameter and 8.5 inches wide, with a 106 center bore.

What are the offset and backspacing of the Raceline Aero 952B-78560-00?

The Aero 952B-78560-00 is a 17x8.5 wheel with a 0 offset and 4.72 backspacing. Check both numbers against your suspension and brake clearance before you buy tires for it.

What is the Raceline 952 Aero wheel made of?

The Aero 952B-78560-00 is built from heavy duty A356 aluminum, with a Satin Black finish and a color matched snap-in cap. It is a spoke style wheel with a smooth stepped outer lip for a retro look.

Which vehicles fit the 952B-78560-00?

The Raceline 952B-78560-00 is a universal fit and is not tied to one vehicle, year or chassis code. Check the 6 on 139.7 bolt pattern, center bore and offset against your vehicle.

How do I clean the satin black finish?

Use mild soap, warm water and a soft brush, then rinse and dry the wheel. Avoid harsh acid cleaners and abrasive pads, which dull satin surfaces. A wheel cleaner made for painted aluminum works well on this finish.

Do hub centric rings change the bolt pattern?

No. A hub centric ring fills the gap between the wheel center bore and the hub so the wheel centers on the hub. The bolt pattern stays the same, but the ring must match the hub size exactly.
