Overview

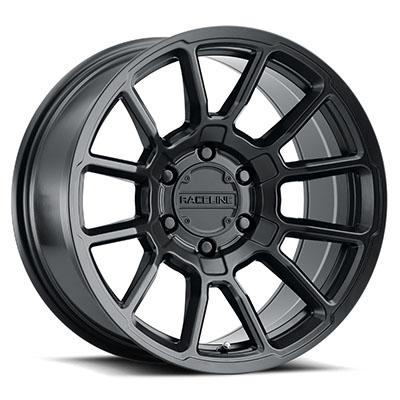

Raceline Wheels’ 950B Gauge 18×9 in Satin Black, part number RLW950B-8908018, is an aluminum spoke wheel built for an 8 on 6.5 bolt pattern. It measures 18 Inches across and 9 Inches wide, with an offset of 18 and a center bore of 125.
The wheel belongs to the 950 Gauge series, with design work carried over from Raceline Wheels’ off-road racing background. No vehicle is tied to it, so the measurements matter more than any model label when you check fit.
Key features
- Satin Black finish with aluminum spoke construction
- 18 Inches diameter and 9 Inches width
- 8 on 6.5 bolt pattern
- Offset of 18, backspacing of 5.57 and center bore of 125
- Series: 950 Gauge, from Raceline Wheels
Center bore and seating
The center bore sets how the wheel rests on the hub before the lug nuts are tightened. A bore that is too small will not fit over the hub at all, while a bore larger than the hub leaves the wheel relying on the lug nuts for centering. Hub centric rings close that gap and are sold to match specific bore sizes, so measure the hub before buying.
Eight-lug patterns are less common than five- or six-lug patterns, so spare parts and aftermarket hardware can be harder to find. Plan around the lug nut seat type and buy a matching set rather than mixing seats. Clean the hub face and wheel mounting surface before installing to avoid vibration from debris.
Specifications
| Brand | Raceline Wheels |
|---|---|
| Part number | RLW950B-8908018 |
| Series | 950 Gauge |
| Diameter | 18 Inches |
| Width | 9 Inches |
| Bolt pattern | 8 on 6.5 |
| Offset | 18 |
| Center bore | 125 |
| Backspacing | 5.57 |
| Style | Spoke |
| Finish | Satin Black |
| Construction | Aluminum |
| Fitment label | Universal Fit |
Vehicle fitment
Fitment is not matched to any named vehicle for this wheel. The Universal Fit label is a general category rather than a list of makes, models or years.
Match the 8 on 6.5 bolt pattern and the 125 center bore to your hub, and check the offset of 18 against your suspension and fender clearance. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the bolt count and spacing on your hub first, since an 8 on 6.5 wheel only fits a matching hub. A center bore of 125 must seat on the hub, and a hub centric ring may be needed if the hub bore is smaller. Confirm the lug nut seat type matches the wheel before torquing. Confirm your vehicle’s year, model and trim before ordering.
What’s included
This is a single wheel. Not included: Tires, lug nuts, center caps and valve stems are not part of this item.
