Pro Comp 6 Inch Stage II Lift Kit with ES3000 Shocks – K4080B

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 2 coil spring lift with radius arms for 1981–1989 Ford F-150
  • Rear block and U-bolt kit with ES3000 front and rear shocks
  • Pitman arm, bump stop extensions and extended length brake lines
  • Lift height range 5 to 6.99 inches

Description

Overview

The Pro Comp K4080B is a 6-inch stage 2 coil spring lift with radius arms for the 1981–1989 Ford F-150. The front uses coil springs and radius arms, and the rear is raised with a block and U-bolt kit. The lift height range is 5 to 6.99 inches.

ES3000 front and rear shocks are supplied, along with bump stop extensions, a pitman arm for steering correction and extended length brake lines. The shock boots are not included.

Key features

  • 6-inch stage 2 lift
  • Front coil springs with radius arms
  • Rear block and U-bolt lift
  • Bump stop extensions
  • Pitman arm steering correction
  • Extended length brake lines

Alignment after a stage 2 lift

A stage 2 truck with radius arms and a block and U-bolt rear needs a full alignment once the work is complete. Radius arms move the front axle and change caster, so the front settings are the first to check. Rear geometry changes from the block and U-bolt rear, which can affect how the truck tracks on the road.

Set the alignment after the truck has been driven a short distance, since the bushings and springs settle during the first trips. Recheck front tire wear and steering centering after that. Watch the driveline angles and the pitman arm too, because a change at one end often shows up in another part of the steering or drivetrain.

  • Set alignment after a short settle drive
  • Check front tire wear
  • Recheck steering centering

Specifications

Brand Pro Comp Suspension
Part number K4080B
UPC 614901125238
Lift 6 inches, stage 2
Lift height range 5 to 6.99 inches
Suspension type Radius arm
Front lift Coil springs with radius arms
Rear lift Block and U-bolt kit
Steering correction Pitman arm
Front shocks ES3000
Rear shocks ES3000
Shock boots Not included

Vehicle fitment

It fits 1981–1989 Ford F-150 trucks. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Radius arms change the front axle location and caster, so set the alignment after installation. The rear block and U-bolts also change the driveline angles, which should be checked once the truck is back together.

What’s included

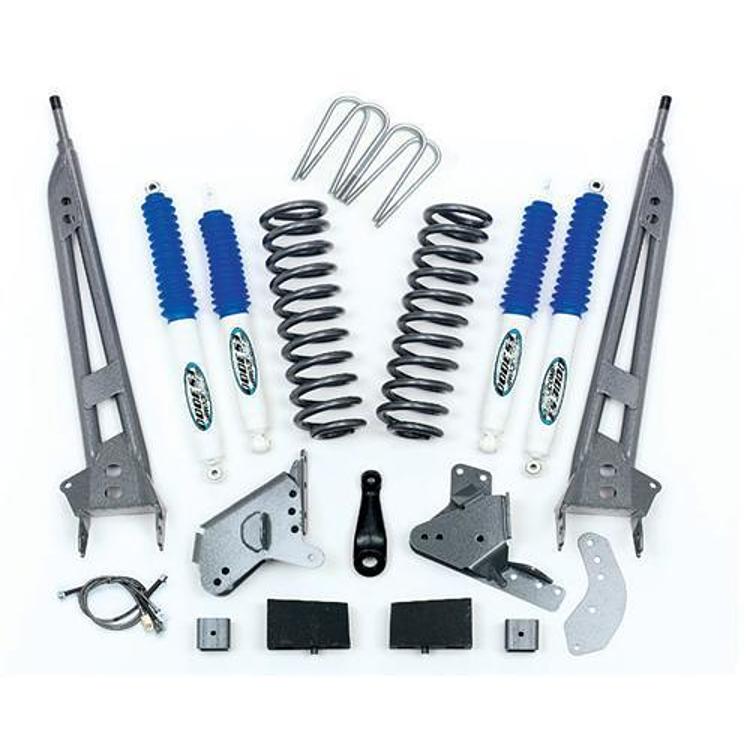

The kit includes front coil springs, radius arms, bump stop extensions, a pitman arm, extended length brake lines, a rear block and U-bolt kit and ES3000 front and rear shocks. Shock boots are not included.

SKU: EXPK4080B Category:

Specification

Shipping weight 178.55 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1501981–1989Base, Custom, Ranger, Ranger Lariat, Ranger XLT, XL, XLS, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4080B fit a 1982 Ford F-150?

Yes. It fits 1981–1989 Ford F-150 trucks, which includes 1982. Cross-check your trim against that range before placing an order.

How does the K4080B differ from the K4079B?

Both are 6-inch coil spring lifts for the same F-150 trucks with a rear block and U-bolt kit. The K4080B is stage 2 with radius arms, while the K4079B is stage 1 with radius arm brackets.

Are shock boots included with the K4080B?

No. Shock boots are not part of this 6-inch stage 2 F-150 kit, so ES3000 boots must be bought separately if they are wanted.

Should the front axle bushings be checked on a radius arm lift?

Yes. Check them at each alignment and after rough use. Look for cracking, play at the mounts and uneven tire wear, since worn bushings can change the front axle position.
