Overview

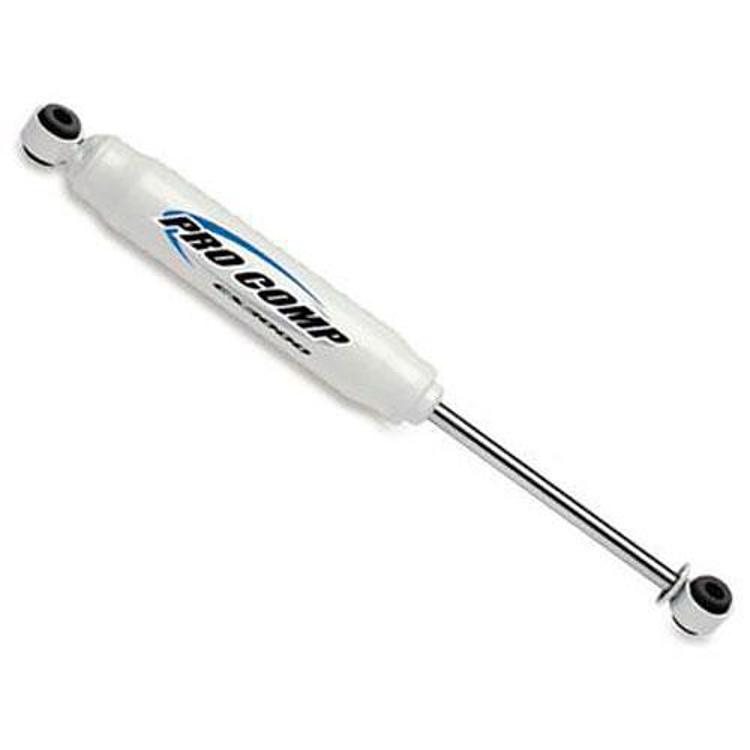

The Pro Comp ES3000 Series shock absorber, part number 329504, has loop-style upper and lower mounts and measures 29.83 inch extended and 17.32 inch collapsed. That gives 12.51 inch of travel, and the shock is sold individually.
It is a twin-tube, gas-charged design with 10-stage velocity-sensitive valving, a 5/8 inch chrome-hardened piston rod and a Teflon rebound stop. The length and mounting points are the main things to verify against the truck before installation.
Key features
- 10-stage velocity-sensitive valving that adjusts damping to movement speed.
- A 5/8 inch chrome-hardened piston rod.
- A Teflon rebound stop.
- Double-welded shock mounts for strength.
- The shock is covered by Pro Comp’s limited lifetime warranty.
Measuring for a long shock
A long shock needs room at both ends, and the first check is simply whether the distance between the mounts allows full extension without the unit bottoming out or pulling on its loop eyes. Measure with the truck at normal height and then again with the suspension lifted or dropped, because the mount spacing changes as the suspension moves.
Travel is the other half of the picture. A unit with a given travel figure must cover the full range of suspension movement, including large compressions over rocks or ruts. Loop-style mounts also need a clean, unbent eye and matching hardware, so inspect the old bushings and fasteners before reusing them with a replacement.
- Measure mount-to-mount spacing at normal height
- Check clearance at full extension
- Inspect loop eyes for bends or cracks
- Use hardware rated for the mount size
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 329504 |
| UPC | 614901696868 |
| Shock series | ES3000 |
| Extended length | 29.83 inch |
| Collapsed length | 17.32 inch |
| Travel length | 12.51 inch |
| Upper mount | Loop |
| Lower mount | Loop |
| Adjustable | No |
| Finish | White |
| Dust boot included | No |
| Sold as | Individually |
Vehicle fitment
Compare the 29.83 inch extended length with the shock you are replacing, and confirm the mounting distance on your truck before buying.
A 29.83 inch extended length is long for a standard shock, so confirm the mounting distance on your truck before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the mount-to-mount distance on the vehicle with the suspension at its normal height. The shock’s 12.51 inch travel must cover your full range of suspension movement.
What’s included
One ES3000 shock absorber, sold individually.
Not included: any mounting hardware beyond the loop eyes, since none is listed.
