Pro Comp 97 Series Rock Crawler Monster Mod, 16x8 Wheel with 5 on 5 Bolt Pattern – Gloss Black – 97-6873

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 16x8 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 97 Series Rock Crawler Monster Mod, 16×8 inch steel wheel, part number PCW97-6873
  • 5 on 5 bolt pattern, 83 center bore, -6 offset, 4.25 backspacing
  • Gloss black powder coat finish with a holes-style face
  • Center cap and lug nuts sold separately; no vehicle is named

Description

Overview

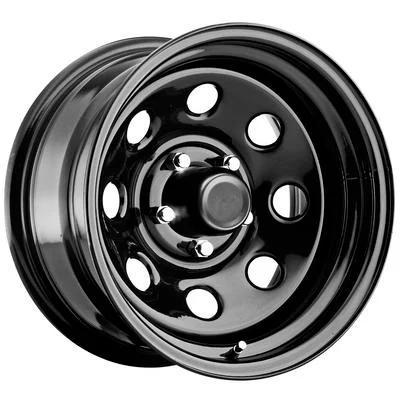

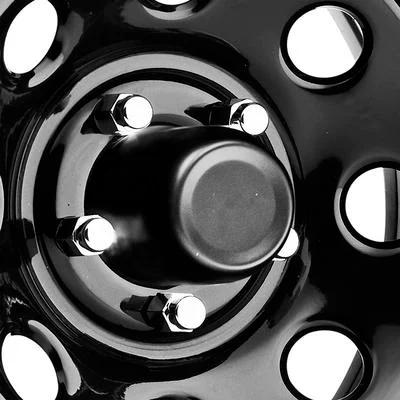

The Pro Comp 97 Series Rock Crawler Monster Mod in 16×8 inches is a steel wheel with a gloss black powder coat, part number PCW97-6873, and a 5 on 5 bolt pattern. It is built for off-road trucks and four-wheel-drive builds that need a steel wheel in a 16 inch diameter, with a holes-style face that matches the rest of the Monster Mod range.

This wheel carries a -6 offset, which places the mounting face behind the centerline so the wheel sits farther out from the hub. Its 4.25 backspacing measures the distance from the mounting face to the back edge of the rim. The 83 bore is the hub opening used for centering. Pro Comp describes its 97 Series steel wheels as made with the finest materials and state-of-the-art production equipment.

Key features

  • Steel construction with a gloss black powder coat
  • 16 inch diameter and 8 inch width
  • Holes-style face in the Monster Mod design
  • 5 on 5 bolt pattern
  • 83 center bore
  • -6 offset and 4.25 backspacing

Trail use and clearance

A steel wheel carries the load of the tire and the vehicle through the hub, so it takes repeated impacts from rocks and ledges. On the trail, a wheel with a negative offset moves the tire outward, which changes how the tire meets obstacles and how the sidewall rubs on tight trails. Steel is easier to repair than many alternatives when a bead seat is dented, although any bent wheel should be retired rather than hammered back into shape.

Wheel choice interacts with tire size, brake clearance and the suspension travel of the rest of the build. A wider tire on a wheel with this offset may need more fender room, and a larger tire adds weight that the hub bearings and steering components carry. Many owners replace lug nuts and the center cap when they change wheels, because seat geometry and cap fit vary between wheel designs.

Inspect the wheel after every trip where it hit rock or hard ground. Look at the bead seat, the lip and the area around the bolt holes for cracks, bends or paint loss that exposes bare steel. Surface rust can be cleaned and sealed, but deep pitting or any crack calls for replacement. Keep the powder coat touched up to limit corrosion.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW97-6873
Series 97 Series Rock Crawler Monster Mod
Construction Steel
Style Holes
Finish Gloss black powder coat
Diameter 16 inches
Width 8 inches
Bolt pattern 5 on 5
Center bore 83
Offset -6
Backspacing 4.25

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Its 5 on 5 bolt pattern, 83 center bore and -6 offset set the hub match. Compare them with your vehicle’s wheel specifications before mounting, and do not assume clearance from a universal fit tag.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

With a negative offset, the wheel stands farther out, so confirm fender and suspension clearance at full lock and at full compression. Steel wheels should be checked for weld and bolt hole condition after the first off-road trip.

What’s included

The shipment covers the 16×8 wheel alone (PCW97-6873), with no center cap in it.

Not included: Center cap and lug nuts for part PCW97-6873, which are sold separately.

SKU: PCW97-6873 Categories: ,

Questions & Answers

What is the offset of the Pro Comp PCW97-6873 steel wheel?

It has a -6 offset, which places the mounting face behind the centerline so the wheel sits farther out from the hub. The 4.25 backspacing is listed separately and should be compared with your clearance needs.

Is this 16 inch Monster Mod wheel a 5 on 5 bolt pattern?

Yes. It uses a 5 on 5 bolt pattern and an 83 center bore. Both must match your hub for the wheel to mount correctly.

Do the center cap and lug nuts come with this wheel?

No. The center cap and lug nuts are sold separately, so order them if they are part of your build. Confirm the lug nut seat type matches the wheel before buying.

How often should steel wheels be inspected off road?

Inspect them after each trip where the wheel contacted rock, ledges or hard ground, and again before a long highway drive. Look for cracks around the bolt holes, bends at the lip and exposed bare steel. Any crack or bend calls for replacement rather than repair.
