Pro Comp Series 252 Street Lock, 15x10 Wheel with 5 on 4.5 Bolt Pattern (Flat Black) – 252-5165F

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 15x10 5x4.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Series 252 Street Lock, 15×10 inch steel wheel, part number PCW252-5165F
  • 5 on 4.5 bolt pattern, 83 center bore, -44 offset, 3.75 backspacing
  • Windowed steel design in flat black
  • Center cap and lug nuts sold separately

Description

Overview

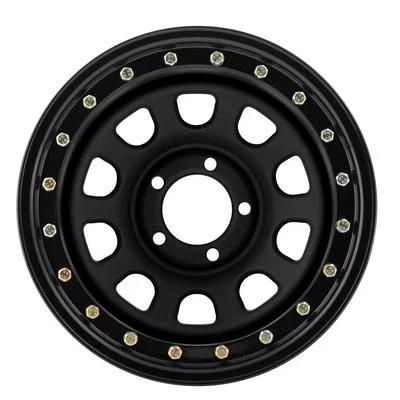

The Pro Comp Series 252 Street Lock in 15×10 inches is a windowed steel wheel in flat black, part number PCW252-5165F, drilled for a 5 on 4.5 bolt pattern. Pro Comp Steel Wheels built the 252 line in sizes and backspacing options for off-road builds that want a steel wheel with a powder coated finish.

The -44 offset places the mounting face well behind the centerline, which moves the wheel outward from the hub. Backspacing of 3.75 is the space from the mounting face back to the rim’s rear edge. The 83 center bore sets the centering diameter for the hub.

Key features

  • Windowed steel design with a flat black powder finish
  • 15 inch diameter and 10 inch width
  • 5 on 4.5 bolt pattern
  • 83 center bore
  • -44 offset and 3.75 backspacing
  • Series 252 line with multiple sizes and backspacing options

Windows and weld checks

Windowed steel wheels leave openings that collect mud, grit and water, which can hide cracks near the cutouts. Clean the window edges and look for hairline lines radiating from the corners. Pay attention to the weld seams between the center and the rim, since those joints carry load on every turn.

A wide wheel with a negative offset puts more of the tire outside the fender, so the tire can meet the body on a bump or during a sharp turn. Changing tire width or sidewall height changes the rolling diameter, which also affects speedometer readings and drivetrain load. Recheck clearance any time the tire size or suspension height changes. Keep a written record of clearance readings for future service work and comparisons.

Specifications

Brand Pro Comp Steel Wheels
Part number PCW252-5165F
Series 252 Series Street Lock
Construction Steel
Style Windowed
Finish Flat black powder coat (the spec sheet says black)
Diameter 15 inches
Width 10 inches
Bolt pattern 5 on 4.5
Center bore 83
Offset -44
Backspacing 3.75

Vehicle fitment

No model years or chassis codes are attached to this windowed steel wheel. The 5 on 4.5 bolt pattern and the 83 center bore are the hub specifications to match, and the -44 offset determines how far the tire sits from the fender. Pro Comp’s universal fit label should be read as “not tied to a vehicle” rather than as a clearance guarantee.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 10 inch rim at -44 offset places the tire well outward, so check clearance at full steering lock and under compression. Inspect the window cutouts and the weld seams for damage before mounting a tire.

What’s included

The 15×10 wheel (PCW252-5165F) comes alone, without a center cap.

Not included: Center cap and lug nuts for part PCW252-5165F, which are sold separately.

SKU: PCW252-5165F Categories: ,

Questions & Answers

Is the Pro Comp PCW252-5165F wheel a windowed design?

Yes. It is a windowed steel wheel in the Series 252 Street Lock line. It is finished in flat black powder coat and measures 15 inches by 10 inches.

What is the bolt pattern and offset of this wheel?

It has a 5 on 4.5 bolt pattern, an 83 center bore and a -44 offset. The 3.75 backspacing completes the measurements that determine clearance on the hub.

Does this 252 Series wheel come with center caps?

No. Center caps and lug nuts ship separately, so buy them with the wheel before mounting if your build needs them.

Does a windowed steel wheel need special cleaning?

Rinse the windows with water and a soft brush after muddy trips, then dry the openings so grit does not sit against the powder coat. Avoid abrasive pads that can scratch the finish. Inspect the weld seams whenever the wheel is cleaned.
