Overview

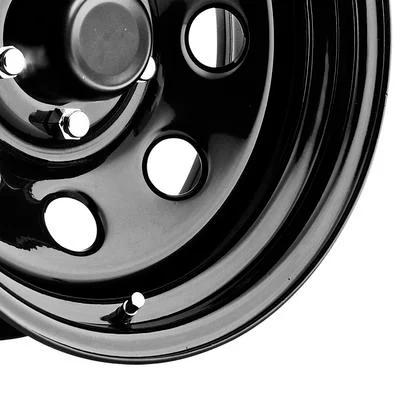

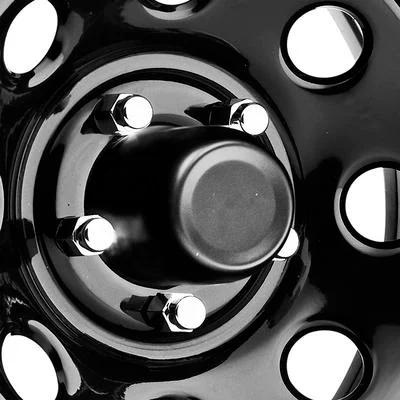

The Pro Comp 97 Series Rock Crawler is a 15×10 inch steel wheel in gloss black, part number PCW97-5183, with a 6 on 5.5 bolt pattern and a 108 center bore. It belongs to the Rock Crawler Series 97 and has a holes-style face with a powder coat finish for off-road trucks and SUVs.
The -22 offset places the mounting face behind the centerline, which shifts the wheel outward. The 3.75 backspacing is the distance from the mounting face to the back edge of the rim. The wheel is built from steel with welds and stamping done on modern equipment.
Key features
- Steel wheel with a gloss black powder coat
- 15 inch diameter and 10 inch width
- 6 on 5.5 bolt pattern
- 108 center bore for hub centering
- -22 offset and 3.75 backspacing
- Holes-style face from the Rock Crawler line
Seating and torque on steel wheels
Seating is where many wheel problems start. The lug nut cone or ball must sit fully in the wheel’s seat, and paint, rust or grit between the wheel and the hub can let the wheel shift slightly. Clean the mating surfaces with a wire brush and a rag before mounting, and confirm the seat type matches the nut.
Torque should be applied in a star pattern and rechecked after the first short drive. Steel wheels do not stretch like some alloy designs, so a loose nut usually means the seat was dirty or the nut was not fully engaged. Replace damaged studs before they can strip the threads.
- Use a star pattern when tightening.
- Replace studs that show thread damage.
- Recheck torque after the first short drive.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-5183 |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Gloss black powder coat (the spec sheet says black) |
| Diameter | 15 inches |
| Width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -22 |
| Backspacing | 3.75 |
Vehicle fitment
Fitment is not confirmed by year, make or model for this 10 inch wide steel wheel. The 6 on 5.5 pattern and 108 center bore must match the hub, and the -22 offset determines where the tire sits relative to the fender. Confirm your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the wheel’s bolt holes and seats for burrs or paint buildup before mounting, since a steel wheel can seat unevenly if the surfaces are dirty. Recheck lug nut torque after the first few miles of driving on a new setup.
What’s included
The package is the 15×10 wheel alone (PCW97-5183). No center cap is included.
Not included: Center cap and lug nuts for part PCW97-5183, which are sold separately.
