Overview

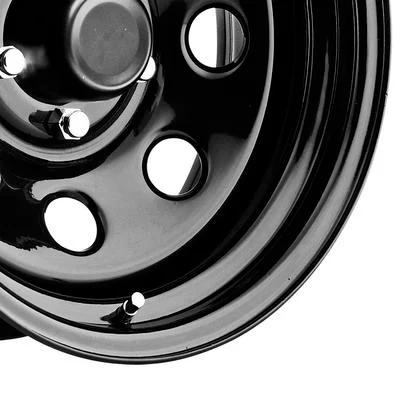

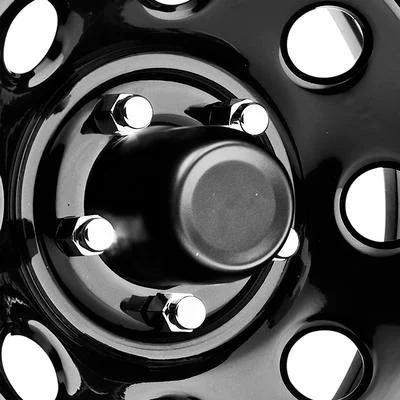

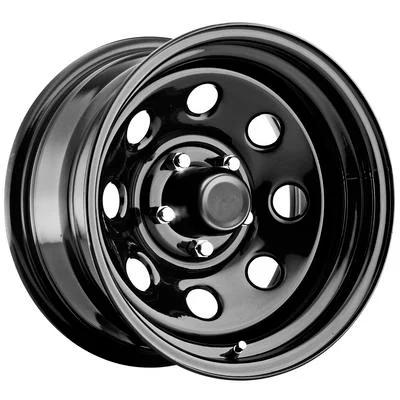

The Pro Comp 97 Series Rock Crawler in 16×8 inches is a gloss black steel wheel, part number PCW97-6883, with a 6 on 5.5 bolt pattern. Pro Comp Steel Wheels makes it for off-road trucks and SUVs that need a 16 inch steel rim with a holes-style face and a powder coated finish.
The -6 offset places the mounting face slightly behind the centerline, so the wheel sits a little farther out from the hub than a zero-offset wheel. The 4.25 backspacing is the distance from the mounting face to the back edge of the rim, and the 108 center bore is the opening that centers the wheel on the hub.
Key features
- Steel wheel with a gloss black powder coat
- 16 inch diameter and 8 inch width
- 6 on 5.5 bolt pattern
- 108 center bore
- -6 offset and 4.25 backspacing
- Holes-style face from the Rock Crawler 97 line
Tire size and rolling diameter
Tire size is the next decision after the wheel. Wheel diameter sets the sidewall height of the tire, and a taller tire adds rolling diameter, which changes the feel off road and affects speedometer accuracy on the road. A 16 inch wheel carries a taller sidewall for a given overall tire height than a larger rim does, which can soften the ride on rough trails.
Steel wheels in this size are often chosen for their strength under impact, and the powder coat is the layer that protects them from road salt and trail mud. Lug nuts, a center cap and valve stems are common add-ons to check when the wheel is installed, because the seat and fit vary by wheel design.
Inspect the wheel after trail use, paying attention to the lip, the bead seat and the bolt holes. Look for scrapes that have gone through the powder coat, and clean any mud from the back of the wheel to slow corrosion. Re-torque the lug nuts after the first few drives, and keep the tire pressure set correctly for the terrain.
Specifications
| Brand | Pro Comp Steel Wheels |
|---|---|
| Part number | PCW97-6883 |
| Series | 97 Series Rock Crawler |
| Construction | Steel |
| Style | Holes |
| Finish | Gloss black powder coat (the spec sheet says black) |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.25 |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. The 6 on 5.5 pattern and 108 center bore set the hub match, and the -6 offset decides how the tire lines up with the fender. Compare the offset with your own clearance before you commit.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the offset is negative, check fender and steering clearance at full lock. Keep the powder coat intact during mounting, since bare steel at the seats can rust quickly on a wheel that sees mud and water.
What’s included
The shipment is the 16×8 wheel only (PCW97-6883).
Not included: Center cap and lug nuts for part PCW97-6883, which are sold separately.
