Pro Comp 62 Series Apex, 20x10 Wheel with 5x5.5 Bolt Pattern – Satin Black Milled – 5162-218547

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5162-218547: 20×10 aluminum split-spoke wheel, 62 Series Apex, satin black milled
  • 5 on 5.5 bolt pattern, center bore 108, offset -18, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

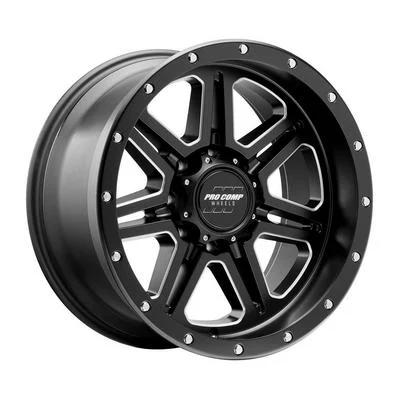

The Pro Comp PXA5162-218547 is a 20×10 aluminum split-spoke wheel from the 62 Series Apex line, in satin black milled with a 5 on 5.5 bolt pattern. It is sold as one wheel.

Built with low-pressure casting, this Apex wheel is rated in the 2500 to 3650 lbs per wheel range of the Pro Comp alloy line. Its offset of -18 and backspacing of 4.75 push the rim outward, which gives the inner components more room.

Key features

  • Low-pressure cast aluminum
  • Split-spoke design
  • 20-inch diameter and 10-inch width
  • 5 on 5.5 bolt pattern
  • Center bore of 108
  • Offset -18 with 4.75 backspacing

Wheel offset and tire choice

Offset sets where the mounting face sits relative to the centerline of the wheel. A negative offset moves the wheel outward, so the tire sits farther from the hub and can add clearance on the inner side. The same change can narrow room at the outer fender, so check both sides.

Wider rims with negative offsets change steering geometry slightly, and tire scrub can increase. Choose tire width and sidewall height with the rim in mind, and test-fit the setup at full steering lock. Spacers change offset but add stress to studs and bearings, so they need their own clearance check.

  • Check outer fender clearance at full travel
  • Recheck alignment after changing tires
  • Confirm lug stud length before adding spacers

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5162-218547
Series 62 Series Apex
Style Split spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 5 on 5.5
Center bore 108
Offset -18
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

No vehicle is named for this wheel. Universal fit on the specifications means the wheel is not limited to one model. A 5 on 5.5 hub with a 108 center bore is the first match, and the -18 offset requires a check for fender and steering clearance.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 10-inch-wide rim at -18 offset changes where the tire sits, so a test fit with the chosen tire is needed to confirm clearance at the fender and suspension. Use only a 5 on 5.5 hub with a matching center bore.

What’s included

One 20×10 aluminum wheel with a satin black milled finish.

SKU: PXA5162-218547 Categories: ,

Questions & Answers

What bolt pattern does the PXA5162-218547 use?

It uses a 5 on 5.5 bolt pattern with a center bore of 108. The offset is -18 and the backspacing is 4.75. Match these figures to your hub before ordering.

How wide is the PXA5162-218547?

The wheel is 10 inches wide and 20 inches in diameter. Its -18 offset places the tire outward, so pick a tire that suits the rim width and check clearance.

Are lug nuts included with this Apex wheel?

Lug nuts and a center cap are not confirmed as included, so plan your hardware before ordering. Confirm the fastener type and thread size with your hub, then order any nuts or caps that are needed.

Does a -18 offset wheel need an alignment after installation?

An alignment is worth checking after any change in tire size or wheel offset, since steering geometry can shift. Have it checked once the wheels are mounted and the first drives show any pulling or uneven wear.
