Overview

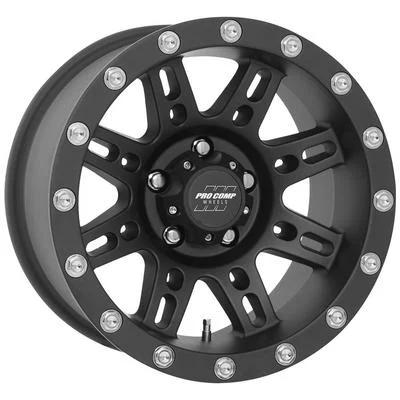

The Pro Comp PXA7031-8955 is an 18×9 split-spoke aluminum wheel in the 31 Series Stryker line, in matte black. It has a 5 on 150 bolt pattern, a center bore of 114, a 0 offset and a backspacing of 5.
The 5 on 150 pattern and 114 center bore separate this 18-inch Stryker from the 5 on 5 and 6 on 5.5 options. The wheel is cast aluminum made with low-pressure casting.
The 5 on 150 pattern and 114 center bore are the numbers to match. The 0 offset places the face near the centerline of the wheel, and the 5 backspacing gives the inner measurement to compare with suspension and brake parts.
The matte black split-spoke face is the listed finish, and the 18-inch diameter with a 9-inch width needs a tire sized to match.
Key features
- Split-spoke face
- Matte black finish
- 5 on 150 bolt pattern
- Center bore 114
- Offset 0
Larger wheels and tire choice
An 18-inch wheel generally pairs with a tire that has a shorter sidewall. A shorter sidewall transmits more road texture into the cabin and can make the ride feel firmer. Choosing a tire whose overall diameter stays close to the original keeps speedometer readings and gearing closer to what the truck was built to deliver.
Tire width should be matched to the rim width so the tread sits flat on the road and the bead seats correctly. Check fender and steering clearance with the chosen tire before the truck is driven on the trail, since a larger wheel and tire combination can rub at full lock.
- Shorter sidewalls transmit more road feel
- Keep overall tire diameter close to stock
- Match tire width to the rim width
- Check speedometer accuracy after the change
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-8955 |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 150 |
| Center bore | 114 |
| Offset | 0 |
| Backspacing | 5 |
| Style | Split spoke |
| Finish | Matte black |
| Construction | Aluminum |
| Series | 31 Series Stryker |
Vehicle fitment
Universal is the fit label Pro Comp attaches to this wheel. The 5 on 150 bolt pattern and 114 bore need to match your hub, and the 0 offset should be checked for brake and fender clearance.
Choose tires suited to an 18-inch rim that is 9 inches wide. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One wheel only, with no center cap.
