Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 with 5x5 Bolt Pattern – Super Machined – 1175-797347

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9 super machined beadlock wheel in the 75 Series Trilogy Race style

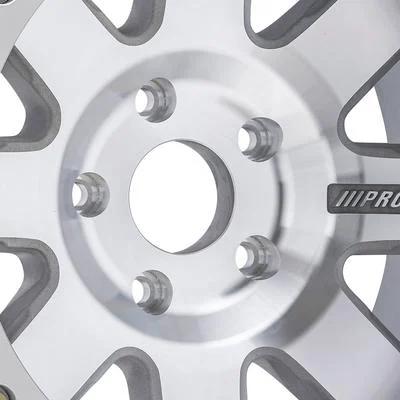

  • 5 on 5 bolt pattern, center bore 108, offset -6, backspacing 4.75
  • Aluminum wheel with a forged 6061 beadlock ring
  • Grade 8 countersunk bolts and NORDLOCK washers

Description

Overview

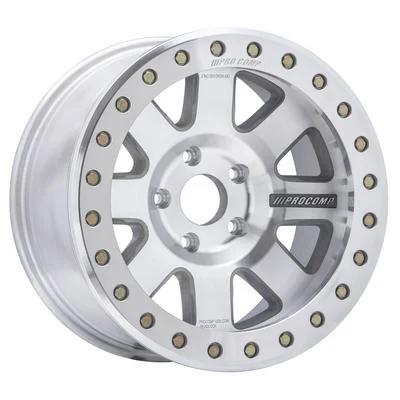

The Pro Comp PXA1175-797347 is a 17 x 9 inch aluminum beadlock wheel from the 75 Series Trilogy Race line, with a super machined finish listed in the spec sheet as machined. The bolt pattern is 5 on 5, the center bore is 108, the offset is -6 and the backspacing is 4.75. The beadlock ring is a separate forged part that holds the tire bead against the rim, so the tire can run at low pressure without the bead lifting.

This is a universal-fit wheel. The 5 on 5 pattern and the 108 center bore suit only certain hubs, so match them to your vehicle before buying.

Key features

  • Super machined finish
  • Eight-spoke face
  • Beadlock ring of 6061 aircraft grade aluminum
  • Beadlock ring thickness is double the original.

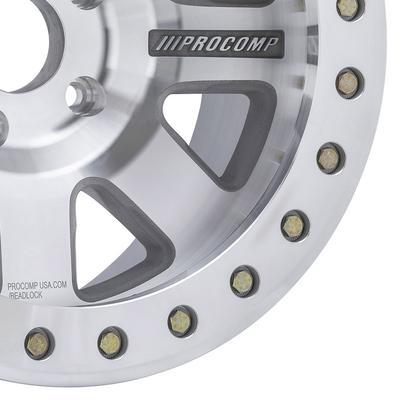

  • Countersunk Grade 8 bolts with rock protection
  • NORDLOCK washers on the ring hardware
  • 45 degree diamond knurl on the ring
  • Infini-Grip figure eight pattern on the bead area

Center bore and hub fit

A center bore larger than the hub needs a hub-centric ring to center the wheel on the hub, which keeps the wheel true and reduces vibration. Rings are sized to the bore and hub diameter, so measure both before buying.

Beadlock wheels add weight at the rim, so the sprung and unsprung mass changes slightly and can affect steering response on rough ground. Tire choice matters too, since a heavier tire adds load to the bearings and balancing needs care.

Beadlock rings are often checked more often than standard wheels because the ring carries the bead load. Note any shift or looseness early.

  • Measure hub diameter and bore before buying rings
  • Check the ring bolts after the first few runs
  • Balance the wheel and tire assembly before mounting

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA1175-797347
Wheel size 17 x 9 inch
Style Trilogy Race beadlock, 75 Series
Finish Super machined (machined)
Construction Aluminum
Bolt pattern 5 on 5
Center bore 108
Offset -6
Backspacing 4.75

Vehicle fitment

This is a universal-fit wheel, so a universal fit does not confirm that the 5 on 5 bolt pattern clears your hub. Compare the pattern, center bore and offset with your vehicle’s wheel specifications before ordering.

A 108 center bore is larger than many hubs, so hub-centric rings may be needed to center the wheel. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mount the tire with the beadlock ring fitted, and check the ring hardware after the first drive. Retorque the bolts and keep the NORDLOCK washers in place, since the manufacturer relies on them to keep the ring tight. Check the valve stem position and the brake clearance at full steering lock.

What’s included

The wheel comes with the beadlock ring hardware, including Grade 8 countersunk bolts and NORDLOCK washers. No tire is included.

SKU: PXA1175-797347 Categories: ,

Questions & Answers

Is the PXA1175-797347 a 5 on 5 wheel?

Yes. The bolt pattern is 5 on 5 with a center bore of 108. Check your vehicle's hub before ordering, since this is a universal-fit wheel.

What finish does the PXA1175-797347 have?

The finish is super machined, which is the machined face of the 75 Series wheel and differs from the satin black version. Fit depends on the bolt pattern, center bore and offset rather than the finish.

Does this wheel come with a tire?

No. The wheel is sold with its beadlock ring hardware and Grade 8 bolts, but no tire is included. Choose a tire that suits the 17 x 9 size and the clearance of your vehicle.

Do I need hub-centric rings for this wheel?

Yes, when the hub is smaller than the 108 center bore. Hub-centric rings center the wheel on the hub, so measure the hub diameter first and use rings that fit both the bore and the hub.
