Overview

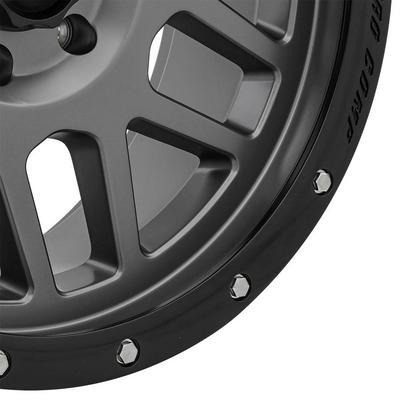

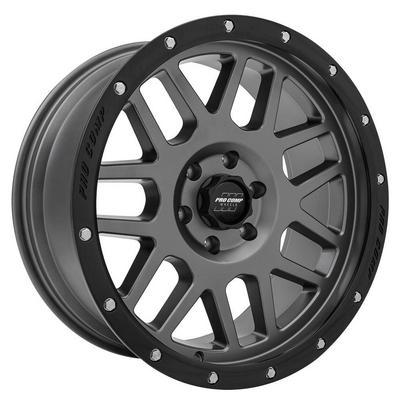

The Pro Comp 40 Series Vertigo 20×9 wheel, part number PXA2640-293645, is a 20-inch aluminum split spoke wheel that is 9 inches wide. It uses a 6 on 135 bolt pattern and a gray matte graphite finish, named in the series as 40 Series Vertigo matte graphite.
The Vertigo is made with low-pressure casting. This 20×9 version has an 87 center bore, a -12 offset and a backspacing of 4.5. The negative offset moves the mounting face farther outward, so fender and caliper clearance need more attention than on a zero-offset wheel. It is universal fit.
Key features
- Low-pressure cast aluminum
- 20-inch diameter and 9-inch width
- 6 on 135 bolt pattern
- Center bore 87
- Offset -12 with backspacing 4.5
- Matte graphite split spoke finish
Tire and clearance planning
A 20-inch wheel with a negative offset moves the tire outward, so the fender and outer suspension parts take the most change. Tire width, sidewall height and load all affect the space around the wheel. Choose a tire that keeps the overall diameter close to the original, and check that the wheel does not rub the fender at full lock or on a bump.
Center bore fit is the other half of the job. A bore that seats on the hub carries the weight, while the lug nuts clamp the wheel. Lug seat style and torque also matter, and a fresh set of hardware is often a good idea when a new wheel is mounted. Re-torque after the first few drives and inspect the spokes for cracks near the bore.
- Measure fender clearance with the suspension compressed
- Check the brake caliper at full steering lock
- Consider new wheel studs or lug nuts if threads look worn
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA2640-293645 |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | -12 |
| Backspacing | 4.5 |
| Style | Split spoke |
| Finish | Gray, matte graphite |
| Construction | Aluminum |
| Series | 40 Series Vertigo |
Vehicle fitment
This 20×9 wheel is universal fit and is not tied to a particular vehicle. Confirm that the 6 on 135 pattern and 87 center bore suit your hub, and check that the -12 offset clears the fender and suspension components.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A -12 offset with a 20-inch diameter needs careful clearance checks. Measure the caliper, the fender and the tire before driving, and confirm the center bore seats on the hub.
What’s included
The package is one 20×9 wheel in gray matte graphite. Before fitting, confirm the center caps and lug nuts for your installation are on hand.
