Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 with 5x4.5 Bolt Pattern – Satin Black – 5175-796547

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9 satin black beadlock wheel in the 75 Series Trilogy Race style

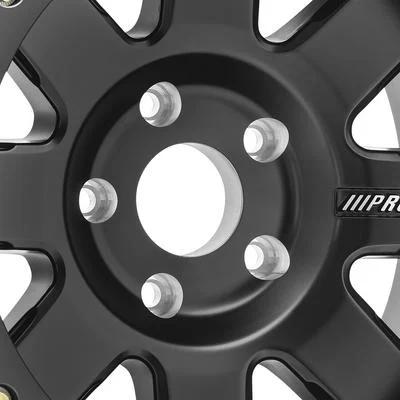

  • 5 on 4.5 bolt pattern, center bore 87, offset -6, backspacing 4.75
  • Aluminum construction with a forged 6061 bead ring
  • Grade 8 countersunk bolts and NORDLOCK washers

Description

Overview

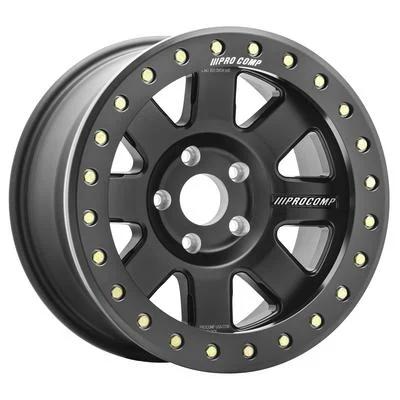

The Pro Comp PXA5175-796547 is a 17 x 9 inch beadlock wheel from the 75 Series Trilogy Race line, finished in satin black. It has a 5 on 4.5 bolt pattern, a center bore of 87, an offset of -6 and a backspacing of 4.75. The wheel is built from aluminum and uses a separate beadlock ring that clamps the tire bead to the rim, which keeps the bead seated when the tire is run at low pressure on rough ground.

The face uses an eight-spoke design, and the beadlock is an updated version of an earlier wheel. The bolt pattern, center bore and offset should be matched to your vehicle before buying.

Key features

  • Eight-spoke Trilogy Race face

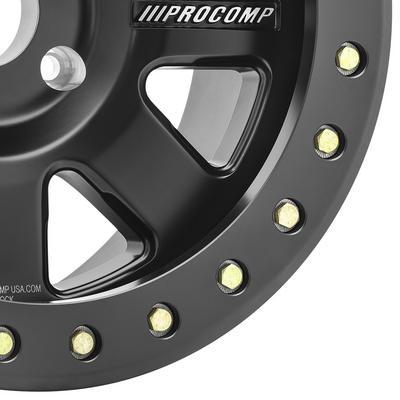

  • Beadlock ring rated by the manufacturer as double the thickness of the original design
  • Bead ring forged from 6061 aircraft grade aluminum
  • Fully countersunk Grade 8 bolts, protected from rocks and impacts
  • NORDLOCK washers to hold the ring hardware torque
  • 45 degree diamond knurl on the new ring
  • Infini-Grip figure eight pattern on the bead area, per the manufacturer
  • Satin black finish

Hub-centric fit and bead care

A center bore that is larger than the hub needs hub-centric rings so the wheel centers on the hub instead of the lug nuts. Rings should match the hub diameter exactly, and they should be checked for cracks before each install. Clean the hub face so the wheel sits flat against it.

Bead care matters as much as fit. Seat the bead with the ring in place, keep the valve stem clear of the brake parts, and avoid running the tire at very low pressure on hard surfaces. After a rough trail day, look for bead marks on the tire and any movement in the ring.

  • Measure the hub before choosing rings
  • Clean the bead seat before mounting
  • Keep the valve stem clear of the caliper

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5175-796547
Wheel size 17 x 9 inch
Style Trilogy Race beadlock, 75 Series
Finish Satin black
Construction Aluminum
Bolt pattern 5 on 4.5
Center bore 87
Offset -6
Backspacing 4.75

Vehicle fitment

Compare the 5 on 4.5 pattern, the 87 center bore and the -6 offset with your vehicle’s hub and clearance specifications before ordering. Fit depends on year, model and trim.

A wheel with a small center bore may need hub-centric rings to fit some hubs, and the tire clearance depends on the offset and backspacing. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

After mounting, check the beadlock ring hardware and retorque the bolts with the NORDLOCK washers in place. Set the bead with a proper air supply, and check the valve stem position before running the tire at low pressure. Check the brake caliper and steering clearance at full lock.

What’s included

The wheel comes with its beadlock ring hardware, meaning the Grade 8 countersunk bolts and NORDLOCK washers. No tire is included with the wheel.

SKU: PXA5175-796547 Categories: ,

Questions & Answers

What bolt pattern is the PXA5175-796547?

The bolt pattern is 5 on 4.5, with a center bore of 87. Compare these with your hub before ordering to confirm a match.

How does the -6 offset affect fitment?

Offset sets how far the mounting face sits from the centerline of the wheel. A -6 offset with a 4.75 backspacing places the tire further out than a positive offset, so check fender and suspension clearance with your tire.

Does the PXA5175-796547 include tires?

No. The wheel ships with its beadlock ring hardware and Grade 8 bolts, but no tire. Choose a tire that suits the 17 x 9 size and your vehicle's clearance.

Do beadlock rings need replacing after a bead comes loose?

Not always, but a ring that has been stressed should be inspected before reuse. Look for cracks, deformed bolt holes and bead seat damage. If any are found, replace the ring hardware and have the bead reset with proper tire equipment.
