Overview

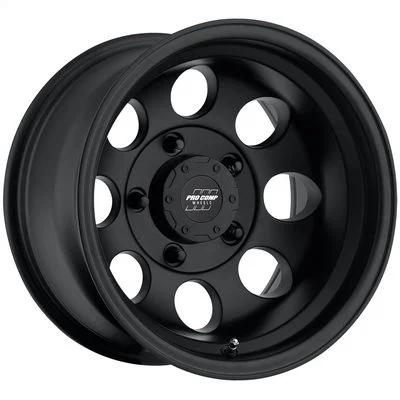

The Pro Comp PXA7069-6873 is a 16×8 flat black aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style and a 5 on 5 bolt pattern. It is sold as one wheel with a center bore of 83, an offset of -12 and a backspacing of 4.
These 69 Series alloys are low-pressure cast aluminum, offered in black, black powder-coat chrome or polished. Its high offset design targets brake clearance on performance trucks and SUVs, and the -12 offset is part of that design.
Key features
- Low-pressure cast aluminum
- Holes style face
- 16-inch diameter, 8-inch width
- 5 on 5 bolt pattern with a center bore of 83
- Offset -12 with 4 backspacing
- Flat black finish
Before you buy
A wheel only works when the hub matches it, so measure the hub before anything else. Five lugs on a 5 on 5 pattern and an 83 center bore must line up with the hub face. The -12 offset places the mounting face farther outward than a zero offset wheel, which changes how the wheel sits against the caliper, fender and steering knuckle. Lifted trucks or larger tires often need a fresh clearance check even when the bolt pattern is correct.
When the old wheels come off, look at the studs, hub face and brake rotor surface. Rust or corrosion on the hub can keep a wheel from seating flat, and that shows up as vibration at speed. Retighten lug nuts after the first few drives and recheck them periodically.
- Measure the hub bolt pattern and center bore
- Test-fit with the tire mounted before the first drive
- Inspect studs for stretching, rust or damaged threads
- Clean the hub face before mounting
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7069-6873 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Flat black |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 83 |
| Offset | -12 |
| Backspacing | 4 |
Vehicle fitment
No vehicle is named for this wheel. Universal fit on the specifications does not identify a truck or Jeep. Check the 5 on 5 hub and 83 center bore first, then the -12 offset against the caliper and fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use a five-lug hub in a 5 on 5 layout with a matching center bore. A test fit with the tire mounted confirms the rim clears the brake caliper and any steering components.
What’s included
One 16×8 aluminum wheel. Check the package contents against your installation before starting.
