Overview

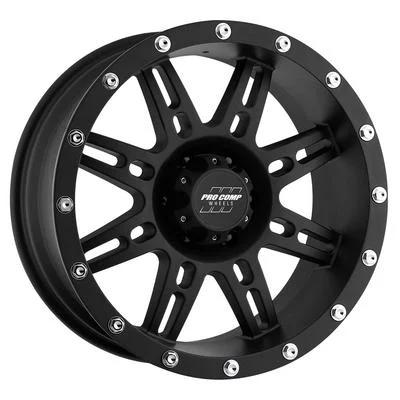

The Pro Comp 31 Series Stryker wheel, part number PXA7031-7936, is a 17 by 9-inch aluminum split-spoke wheel in flat black with a 6-on-135 bolt pattern and an offset of -6.
Pro Comp Alloy Wheels are made with low-pressure casting technology, which the brand says gives strength and style. The wheels are designed for brake clearance on today’s trucks and sport utility vehicles.
Pro Comp describes its alloy wheels as combining style, light weight and a durable finish in black, black powder coat chrome and polished. The 31 Series is offered in this flat black finish.
The Stryker design uses a split-spoke pattern in 17 by 9 inches with a 6-on-135 bolt pattern. Those are the first measurements to match against a vehicle’s hub.
Key features
- Split-spoke style
- 17-inch diameter and 9-inch width
- 6-on-135 bolt pattern
- Aluminum construction made with low-pressure casting
- Flat black finish from the 31 Series
- Designed for brake clearance
Tire and brake clearance
A 17 by 9 inch wheel leaves less sidewall room than a smaller wheel with the same tire, so the tire choice matters. Shorter sidewall tires often give a better fit with suspension and fender clearance, but they also change ride quality and the cushion over rough ground. Measure the actual space between the brake and the spokes before buying tires.
Split spoke designs have openings that show brake parts and dust more than solid faces, so brake caliper clearance should be checked against the spoke layout. Wheel care is simple: wash off road grime, avoid harsh abrasives on the flat black finish, and check the bolts and tire pressure after the first drives. Look for cracks around the spokes after any hard impact.
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA7031-7936 |
| Series | 31 |
| Style | Split spoke |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | -6 |
| Backspacing | 4.75 |
| Construction | Aluminum |
| Finish | Flat black (black) |
Vehicle fitment
Fit depends on the 6-on-135 bolt pattern, the 87 center bore, the -6 offset and the 9-inch width. Check these against your hub and clearance before installing.
Installation notes
Match the bolt pattern and center bore to your hub, and check tire and brake clearance at the -6 offset before mounting. Lug nuts must match the wheel’s seat type.
What’s included
One wheel. Not included: tires and lug nuts.
