Overview

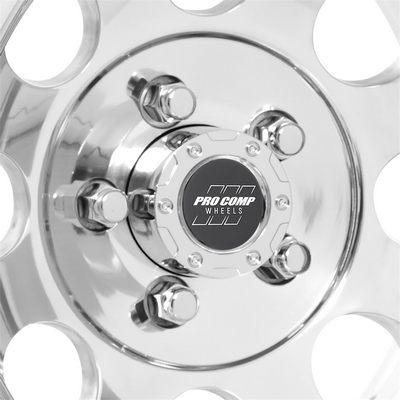

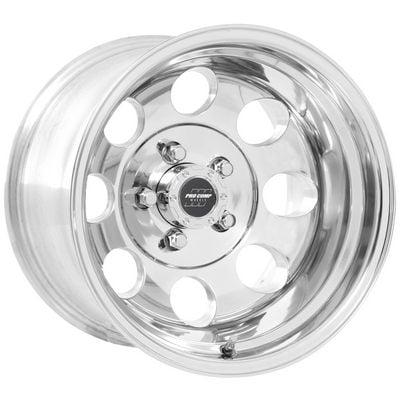

The Pro Comp PXA1069-6865 is a 16×8 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 5 on 4.5 bolt pattern. It is sold as one wheel with a center bore of 72 and an offset of -12.
The Vintage alloys are cast with low-pressure technology and come in black, chrome or polished finishes. This polished version has a backspacing of 4 and a high offset design intended for brake clearance on performance trucks and sport utility vehicles.
Key features
- Low-pressure cast aluminum
- Holes style face
- 16-inch diameter, 8-inch width
- 5 on 4.5 bolt pattern
- Center bore of 72
- Offset -12 with 4 backspacing
Polished finish care
A polished aluminum finish looks sharp but shows road grime and brake dust more quickly than a painted or matte surface. Clean the face with a mild wheel cleaner and a soft brush, then rinse thoroughly. Avoid harsh acid cleaners, which can etch the surface and leave dull patches over time.
Finish is only part of the picture. The 5 on 4.5 pattern and 72 center bore decide whether the wheel mounts, and the hub pilot must seat evenly. Off-road use stresses the bead area and spokes, so check the wheel for cracks and bends after rough trips.
Brake dust and road salt are the usual causes of finish damage. Rinse the wheels after trips through mud or wet gravel, and keep a soft towel handy to dry the lip. Protectant products can reduce buildup between washes, but test a small area first.
- Wash with a soft brush and mild cleaner
- Avoid acid-based wheel cleaners
- Inspect the lip after rough trail use
- Dry the bead area before storage
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA1069-6865 |
| Series | 69 Series Vintage (Classic) |
| Style | Holes |
| Construction | Aluminum |
| Finish | Polished |
| Diameter | 16 inches |
| Width | 8 inches |
| Bolt pattern | 5 on 4.5 |
| Center bore | 72 |
| Offset | -12 |
| Backspacing | 4 |
Vehicle fitment
No vehicle is named for this wheel. Universal fit on the specifications does not identify a model. The 5 on 4.5 pattern and 72 center bore are the first checks, then the -12 offset against the caliper and fender.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use a five-lug hub measuring 4.5 across the bolt holes. Confirm the 72 center bore against the hub pilot, and test-fit the polished rim with the tire before the vehicle goes off road. A 72 center bore must seat on the hub pilot for the wheel to center, and the 5 on 4.5 spacing has to match the lug holes exactly. The -12 offset and 4-inch backspacing set how the tire sits relative to the fender and brake parts. Use a tire width that suits an 8-inch rim, then test-fit with the tire mounted. The polished finish is a cosmetic choice and does not change the fit checks, which depend on the hub measurements. Measure the hub before ordering, and recheck the clearance after any change in tire size or suspension height.
What’s included
One 16×8 aluminum wheel. Hub hardware and any center cap should be verified on arrival.
