Select your vehicle

Pro Comp 6.5 Inch Lift Kit with Pro Runner Shocks – K4016BP

Pro Comp Suspension

Shop Ford F-350 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6.5-inch stage 1 leaf spring lift with Pro Runner shocks at both ends
  • Front sway bar spacers, bump stops and pitman arm correction
  • Rear springs and U-bolts
  • Fits 1999–2004 Ford F-250 and F-350 Super Duty

Description

Overview

The Pro Comp K4016BP is a 6.5-inch stage 1 leaf spring lift with Pro Runner front and rear shocks. It fits 1999–2004 Ford F-250 Super Duty and F-350 Super Duty models, including the Harley-Davidson Edition and King Ranch trims.

This kit is the Pro Runner shock version of the K4016B. The front uses leaf springs with sway bar spacers and bump stops, and a pitman arm corrects the steering. The rear uses springs and U-bolts, and the lift height range is 5 to 6.99 inches.

Key features

  • 6.5-inch lift, stage 1
  • Pro Runner front and rear shocks
  • Front leaf springs and sway bar spacers
  • Bump stops
  • Pitman arm steering correction
  • Rear springs and U-bolts

Pro Runner shock considerations

Pro Runner shocks are matched to a lift of this height, so their length and mounting points should suit the leaf spring position. Worn or mismatched shocks can make a heavy Super Duty feel loose over bumps, and a worn bushing will allow clunking at the eye. Inspect the mounts and bushings during each service and watch for fluid seepage along the shaft.

Shocks work with the springs, not in place of them. Bump stops, spring packs and tire pressure all affect how the shock is loaded. Replacing shocks at the same time as the springs is a common way to keep the ride consistent, and a shock that feels much stiffer on one side than the other usually points to a bent mount or worn bushing.

  • Mount and bushing condition
  • Fluid seepage along the shaft
  • Bump stop wear
  • Balanced ride from side to side

Specifications

Brand Pro Comp Suspension
Part number K4016BP
UPC 70000637834
Lift 6.5 inches, stage 1
Lift height range 5 to 6.99 inches
Suspension type Leaf spring
Front lift Leaf springs
Rear lift Springs and U-bolts
Steering correction Pitman arm
Front shocks Pro Runner
Rear shocks Pro Runner
Shock boots Not included

Vehicle fitment

It fits 1999–2004 Ford F-250 Super Duty and F-350 Super Duty models in the Harley-Davidson Edition, King Ranch and related trims. Other Ford model years are not covered by this kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 6.5-inch leaf spring lift changes the front alignment and the rear driveline angles, so check both after installation. Check the pitman arm steering centering once the lift is complete.

What’s included

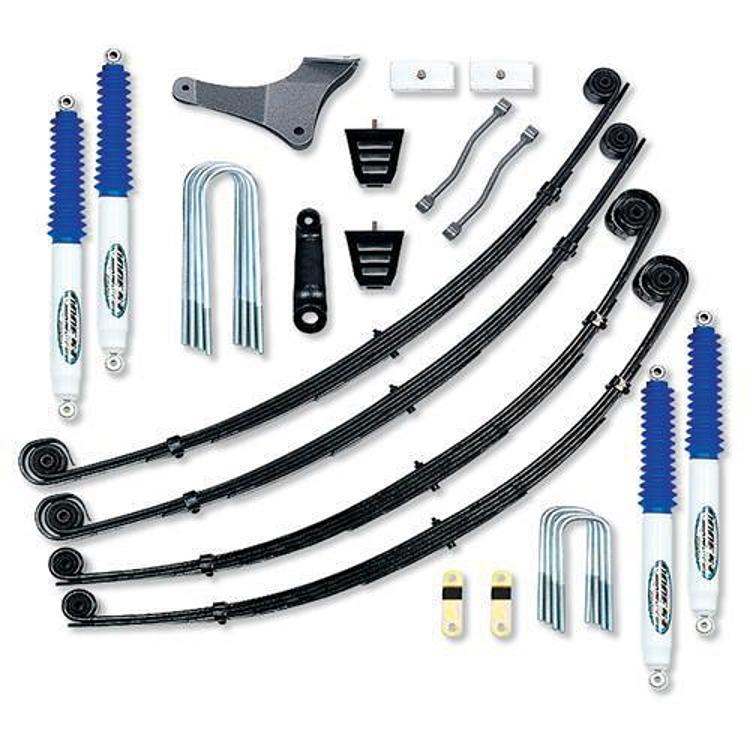

The kit includes front leaf springs, sway bar spacers, bump stops, a pitman arm, rear springs and U-bolts, and Pro Runner front and rear shocks. Shock boots are not included.

SKU: EXPK4016BP Category:

Specification

Shipping weight 401.60 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-250 Super Duty1999–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT
Ford F-350 Super Duty1999–2004Harley-Davidson Edition, King Ranch, Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How does the K4016BP differ from the K4016B?

Both are 6.5-inch stage 1 leaf spring lifts for the same Super Duty trucks. The K4016BP uses Pro Runner shocks at both ends, while the K4016B uses ES9000 shocks.

Does the K4016BP fit a 2002 Ford F-350 Super Duty?

Yes. It fits 1999–2004 Ford F-350 Super Duty models, which includes 2002. Check your trim against the covered trims before ordering.

Are shock boots included with the K4016BP?

No. Shock boots are not supplied with this 6.5-inch kit, so any boots for the Pro Runner shocks must be bought separately.

Can I use a different shock with this lift?

It is possible, but the replacement should be built for the same spring setup and mounting points. A mismatched shock can change ride height, damping and bump stop contact. Confirm fit for your vehicle's year, model and trim before buying any substitute.
