Overview

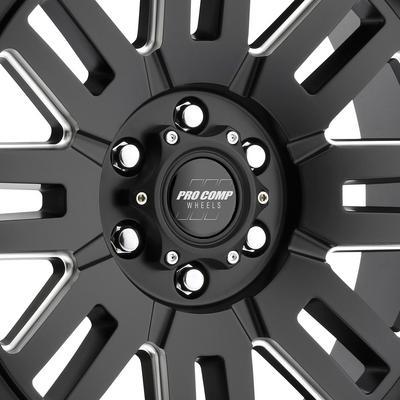

The Pro Comp PXA5161-7983 is a 17×9 aluminum split-spoke wheel from the Pro Comp 61 Series, finished in satin black milled and drilled for a 6 on 5.5 bolt pattern. It is sold as a single wheel, and the wheel’s center bore of 108 is the number to match to the hub.
Pro Comp describes its alloy wheels as cast with low-pressure casting technology for strength and light weight, and the brand rates the alloy range from 2500 to 3650 lbs per wheel. This 9-inch-wide wheel has an offset of -6 and a backspacing of 4.75, so the rim sits outward from the hub face. The 17-inch diameter sets the tire size you will need to choose.
Key features
- Low-pressure cast aluminum
- Split-spoke design
- 17-inch diameter and 9-inch width
- 6 on 5.5 bolt pattern
- Center bore of 108
- Offset -6 and backspacing 4.75
Split spoke wheels for trucks
Tire width is the main sizing decision with a 9-inch-wide rim. A wider tire on a narrow setup can bulge and rub, while a narrow tire on a wide rim can shape poorly and wear unevenly. Choose a width that suits the wheel and the tread you need, and confirm the sidewall clears the fender and suspension through full travel.
Wheel bolts need regular attention. Check torque after the first few drives and again after any wheel removal. Inspect the studs and lug holes for cracks or elongation at each tire rotation. A loose wheel usually shows up as vibration, clicking, or a wheel that wobbles during turns, and it should be stopped and corrected right away.
- Match tire width to the 9-inch rim
- Check clearance at full steering lock
- Re-torque lug nuts after the first few drives
- Inspect studs for stretching or cracks
Specifications
| Brand | Pro Comp Alloy Wheels |
|---|---|
| Part number | PXA5161-7983 |
| Series | 61 Series |
| Style | Split spoke |
| Construction | Aluminum |
| Finish | Satin black milled |
| Diameter | 17 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | -6 |
| Backspacing | 4.75 |
| Load rating | 2500 to 3650 lbs per wheel (Pro Comp alloy range) |
Vehicle fitment
No vehicle is named for this wheel. Universal fit on the specifications does not tie the wheel to a model. The 6 on 5.5 pattern and 108 center bore are the first checks against a truck or Jeep hub, then the -6 offset against the fender and brake parts.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Use a 6-lug hub measuring 5.5 across the bolt holes. Because the rim is 9 inches wide, pick a tire that matches the width and check that it clears the suspension at full steering lock.
What’s included
One 17×9 aluminum wheel. Plan on sourcing lug nuts and a center cap yourself.
