Pro Comp 75 Series Trilogy Race Beadlock Wheel, 17x9 with 5 on 150 Bolt Pattern – Satin Black – 5175-795547

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17 x 9 aluminum beadlock wheel, Trilogy Race style, satin black finish
  • 5 on 150 bolt pattern, offset -6, backspacing 4.75
  • Eight-spoke design with a double thickness bead ring
  • Grade 8 countersunk bolts and NORDLOCK washers

Description

Overview

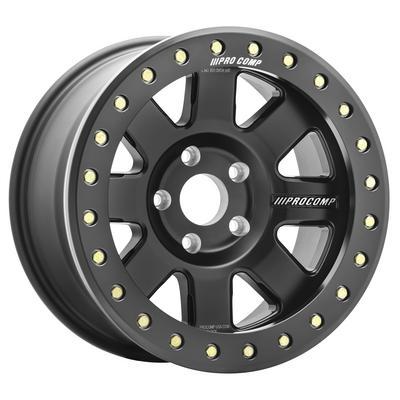

The Pro Comp PXA5175-795547 is a 17 x 9 aluminum beadlock wheel in the 75 Series Trilogy Race style, with a 5 on 150 bolt pattern and a satin black finish. A beadlock ring bolts to the wheel and clamps the tire bead against the rim, so the bead stays seated when the tire is run at low pressure off-road. The wheel has an eight-spoke design and a backspacing of 4.75 with an offset of -6.

The wheel is sold as a universal-fit part. A wheel only fits a vehicle whose hub, bolt pattern, offset and backspacing match, so check the bolt pattern and offset against your vehicle’s specifications before buying.

Key features

  • Eight-spoke Trilogy Race design
  • Beadlock ring with double the thickness of the original ring, per the manufacturer
  • Ring forged from 6061 aluminum
  • Fully countersunk Grade 8 bolts
  • NORDLOCK washers to keep the ring hardware torqued
  • 45-degree diamond knurl pattern on the ring
  • Infini-Grip figure eight pattern on the bead area
  • Full 27% stronger than the previous version, per the manufacturer

Tire pressure and bead retention

A beadlock keeps the tire bead locked to the rim when pressure drops, which matters for low-pressure running on rocks, sand and mud. The ring is only one part of that system, so the tire, the bead and the wheel condition all need checking.

Beadlocks are usually set with a bead-seating method and an air source, since the bead must seat before the ring can hold it. Check the ring and bolts after each trip, and inspect the wheel for cracks after hard impacts.

Wheel offset and backspacing decide how far the tire sits from the suspension and body, so choose a tire size with that in mind before buying.

  • Re-torque ring bolts after the first few runs
  • Check the valve stem for damage and seal
  • Inspect the bead area for dents or corrosion

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5175-795547
Wheel size 17 x 9 inch
Style Trilogy Race beadlock, 75 Series
Finish Satin black
Construction Aluminum

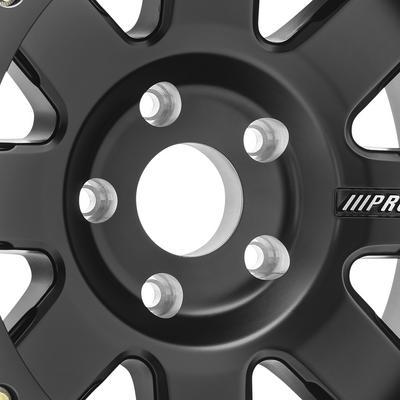

Bolt pattern 5 on 150
Offset -6
Backspacing 4.75

Vehicle fitment

This wheel is a universal-fit part rather than one built for a specific vehicle. Confirm the bolt pattern, offset and backspacing for your vehicle before ordering.

Tire clearance depends on the offset and backspacing, so check the fender and suspension clearance with the tire you plan to run. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Beadlock wheels need the ring hardware checked after mounting. Keep the Grade 8 bolts torqued with the washers in place, and check the valve stem position and wheel clearance at full steering lock before running it off-road.

What’s included

The wheel comes with its beadlock ring hardware, including Grade 8 countersunk bolts and NORDLOCK washers. Tires and valve stems are not part of this package, so check the package contents before ordering.

SKU: PXA5175-795547 Categories: ,

Questions & Answers

What bolt pattern is the PXA5175-795547?

The bolt pattern is 5 on 150. Make sure your vehicle's hub and wheel bolt pattern match before ordering. The wheel is a universal-fit part, so the match is up to you.

What offset and backspacing does this wheel have?

The wheel has an offset of -6 and a backspacing of 4.75. Those numbers, along with the 17 x 9 size, decide the tire clearance, so check them against the vehicle before buying.

Does this beadlock wheel come with tires?

No. The wheel comes with its beadlock ring hardware but no tire, so choose a tire that fits the 17 x 9 wheel and your vehicle.

How often should the beadlock ring bolts be checked?

Check them after mounting, after the first few trips, and then at regular intervals when running off-road. Keep the washers in place and retorque the Grade 8 bolts as part of routine inspection.
