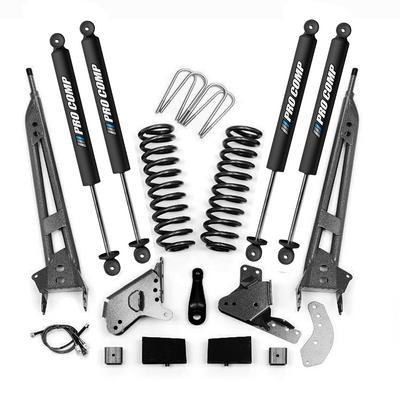

Pro Comp 6″ Stage II Lift Kit with PRO-X Shocks – K4064T

Pro Comp Suspension

Shop Ford F-150 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 1990–1996 Ford F-150 and 1993–1995 F-150 Lightning.
  • 6-inch Stage II lift kit with a 6–7 inch lift height range
  • Rear lift uses a block and U-bolt spacer
  • PRO-X shocks at the front and rear, included
  • Part number EXPK4064T (K4064T)

Description

Overview

The Pro Comp EXPK4064T, also sold as K4064T, is a 6-inch Stage II lift kit with PRO-X shocks for the 1990–1996 Ford F-150 and the 1993–1995 F-150 Lightning. It raises the rear with a block and U-bolt spacer and fits those trucks directly.

A block-and-U-bolt rear lift sits between the axle and the leaf springs and is held in place by U-bolts. It raises the rear without changing the spring pack, so the springs stay in place. The lift height is 6 inches, within a range of 6 to 7 inches.

Key features

  • 6-inch Stage II lift with a 6–7 inch lift height range
  • Block and U-bolt rear lift method
  • PRO-X front and rear shocks, included
  • Direct fit to the listed F-150 and F-150 Lightning trucks

Block lifts and axle position

A block sits between the axle housing and the springs, so the axle moves away from the spring seat. That spacing changes the geometry under the truck, which is why the driveline and pinion angle should be set after the lift is complete.

U-bolts carry the clamping load in a block setup, and they can loosen as the truck works. Retorque them after the first drives and again at routine service, and inspect the threads for stretch or damage.

Brake lines and the parking brake cable can become tight at a higher ride height. Check hose length and routing so nothing binds at full suspension travel. Owners who tow should also look at the rear bump stops for clearance.

  • Retorque U-bolts after early use
  • Check brake hose length and routing
  • Verify bump stop clearance at full compression

Specifications

Brand Pro Comp Suspension
Part number EXPK4064T (K4064T)
Kit type Lift kit, complete suspension system
Kit stage Stage 2
Lift height 6 inches, with a lift height range of 6–7 inches
Rear lift method Block and spacer
Rear lift component Block and U-bolt
Front shocks PRO-X
Rear shocks PRO-X
Shocks included Yes
Fitment type Direct fit

Vehicle fitment

The kit fits the 1990–1996 Ford F-150 in the Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat trims, and the 1993–1995 Ford F-150 Lightning.

The list does not include the 1997 and newer F-150 or the Bronco. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Block-type lifts move the axle relative to the springs, so set the pinion angle and driveline angles after installation. Torque the U-bolts once the truck is at its final height.

What’s included

The kit includes PRO-X shocks for the front and rear, and a block and U-bolt rear lift. No full parts list is given for this part number.

SKU: EXPK4064T Categories: ,

Fitment

VehicleYearsTrims
Ford F-1501990–1996Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat
Ford F-150 Lightning1993–1995All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp EXPK4064T fit a 1995 Ford F-150 Lightning?

Yes. The kit fits the 1993–1995 Ford F-150 Lightning, along with the 1990–1996 Ford F-150. Later F-150 Lightning years fall outside this kit's fit.

Does the kit use a block or new leaf springs at the rear?

The rear lift method is a block and spacer, with a block and U-bolt as the lift component. The springs stay in place.

Does the kit come with shocks?

Yes. PRO-X shocks are included for the front and rear of the truck, so the lift and the shocks come as one kit with one part number.

Do block lifts affect ride quality?

They can, since the axle sits farther from the springs and the spring rate stays the same. Many drivers notice a firmer or slightly different feel, especially unloaded. Checking shock travel and bump stop clearance after installation helps keep the ride controlled.
