Overview
The Pro Comp K4022T is a 6-inch stage 1 lift kit with PRO-X front and rear shocks for the 2000–2005 Ford Excursion. The listed lift height range is 6 to 7 inches, and both shocks are part of the kit.
The Excursion is lifted at the rear with a block and spacer method using block and U-bolt components and add-a-leaf hardware. It is a direct fit for the Excursion versions covered in the fitment section.
Key features
- 6-inch stage 1 lift for the Ford Excursion

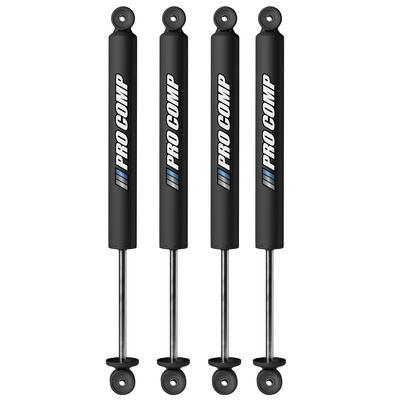

- PRO-X front and rear shocks, both included
- Block and U-bolt rear lift with add-a-leaf hardware
- Lift height range of 6 to 7 inches
- Fits the Eddie Bauer, Limited, XLS and XLT versions of the Excursion
Excursion rear lift considerations
The Excursion is a heavy body on a truck frame, so the rear suspension carries significant weight. A block lift changes the rear geometry and the way the springs sit, and that makes shock clearance and spring pack alignment important checks after the work is done.
Lifting an Excursion also changes the front alignment and the driveline angles. Because the rear rides higher, the driveline can run at a steeper angle, which can show up as vibration or added wear on the joints. Checking these angles and the brake line routing after the first few drives gives a clearer picture of how the setup is working.
- Check shock clearance at full compression
- Look at spring pack alignment after the first drives
- Measure driveline angles once the lift is complete
- Inspect brake lines for stretch at full droop
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4022T |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Front shocks | PRO-X |
| Rear shocks | PRO-X, included |
| Rear lift method | Block/spacer with block and U-bolt and add-a-leaf |
| Shocks included | Yes |
Vehicle fitment
It fits the 2000–2005 Ford Excursion in the Eddie Bauer, Limited, XLS and XLT versions.
This kit is for the Excursion SUV. Match your vehicle’s year, model and trim to this fit before ordering.
Installation notes
On an Excursion, the lift changes the driveline angles and the front alignment, so the driveline and alignment should be checked once the lift is complete. Check the rear shock clearance and the driveline once the block lift is in place, since the rear geometry changes with the lift.

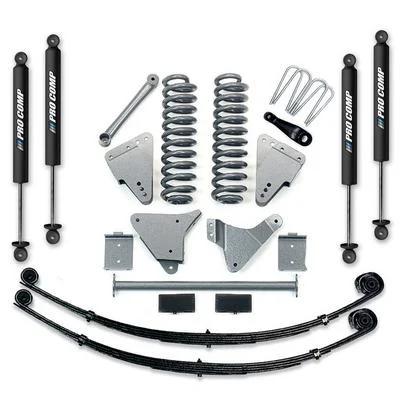

What’s included
PRO-X front and rear shocks, and the rear block and U-bolt lift parts with add-a-leaf hardware.
