Pro Comp 6 Inch Stage II Lift Kit with Pro Runner Shocks – K2066BP

Pro Comp Suspension

Shop Pro Comp Suspension Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch coil spring and short arm lift with Pro Runner front and rear shocks
  • Pitman arm steering correction and front sway bar links
  • Rear block and U-bolt kit
  • Part number K2066BP

Description

Overview

The Pro Comp 6 Inch Stage II Lift Kit with Pro Runner Shocks, part number K2066BP, is a 6-inch coil spring and short arm lift. It is a 6-inch stage 1 lift with a lift height range of 5 to 6.99 inches.

The front uses coil springs with upper and lower control arms, and a pitman arm is used for steering correction. The rear uses a block and U-bolt kit. Pro Runner shocks are fitted at the front and rear, and shocks are included.

Key features

  • 6-inch lift
  • Coil springs with upper and lower control arms
  • Coil spring and short arm suspension type
  • Pitman arm steering correction
  • Front sway bar links and bump stop extensions
  • Brake line extension brackets
  • Pro Runner front and rear shocks, included

Rear block kit and ride height

A block and U-bolt kit raises the rear axle by placing blocks between the leaf springs and the axle. Because the springs stay in their original location, the rear ride height rises without changing the spring design. Blocks put extra load on the U-bolts, so retorque them after the first drives and check them again regularly.

Pro Runner front and rear shocks are fitted with this kit, so both ends should be inspected together. Check the rear shock mounts and lower eyes for wear, and look for leaks along the shock bodies. Keep the rear brake lines and the parking brake cable clear of the new ride height.

  • Retorque U-bolts after the first drives
  • Check rear shock mounts for play
  • Inspect brake lines at the rear axle
  • Confirm even ride height left to right

Specifications

Brand Pro Comp Suspension
Part number K2066BP
UPC 70000637817
Lift height 6 inches
Lift height range 5 to 6.99 inches
Suspension type Coil spring and short arm
Steering correction Pitman arm
Rear lift Block and U-bolt kit
Front shocks Pro Runner
Rear shocks Pro Runner
Shocks included Yes
Fitment Direct fit

Vehicle fitment

Confirm fit for your Ram 2500 or 3500 year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The pitman arm correction and the coil spring front end change steering and suspension geometry, so have the steering and alignment checked after installation.

What’s included

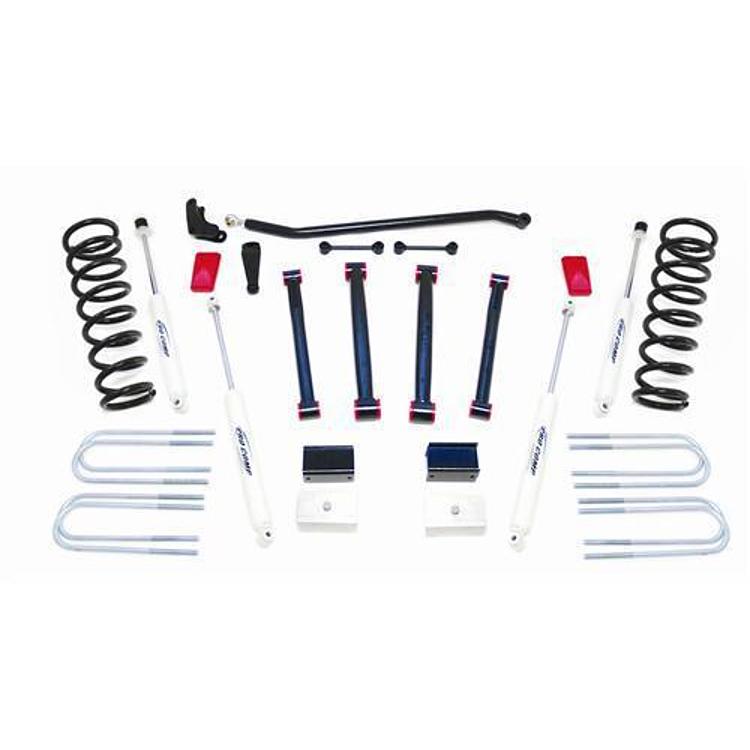

The kit includes front coil springs, upper and lower control arm components, front sway bar links, bump stop extensions, a pitman arm steering correction, brake line extension brackets, a rear block and U-bolt kit, and Pro Runner front and rear shocks.

SKU: EXPK2066BP Category:

Specification

Shipping weight 208.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Which trucks does the K2066BP fit?

Confirm fit for your vehicle's year, model and trim before ordering. Match your Ram 2500 or 3500 model year and trim before installing, since fit depends on those details.

Does the K2066BP use Pro Runner shocks at both ends?

Yes. Pro Runner shocks are fitted at the front and rear, and shocks are included with the kit. Both ends are covered, so the shock setup is complete with the parts in the package.

Is the K2066BP a stage 1 or stage 2 kit?

It is a 6-inch stage 1 lift, with a lift height range of 5 to 6.99 inches. Confirm the stage matches your parts and your truck's setup before installation.

Should the front and rear shocks be replaced at the same time?

Replacing both ends together keeps the damping balanced and the ride consistent. Shocks wear at different rates, but a matched set at both ends gives more predictable handling. Inspect the shocks at both ends first, then replace the worn units as a set.
