Pro Comp 2.5″ Lift Kit with VST 2.5″ Coilovers and Shocks – K1177BX

Pro Comp Suspension

Shop Chevrolet Silverado 1500 Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5 in. lift kit with PRO-VST coilovers and shocks for the 2007-2018 Chevrolet Silverado 1500 and GMC Sierra 1500
  • Designed to run 35 inch tires.
  • Bolt-in; lift height range 0-3.5 Inches
  • Shocks included

Description

Overview

The Pro Comp 2.5″ Lift Kit with VST 2.5″ Coilovers and Shocks, part number K1177BX (EXPK1177BX), is a 2.5 in. suspension lift kit for the 2007-2018 Chevrolet Silverado 1500 and 2007-2018 GMC Sierra 1500. It is Pro Comp’s Explorer Pro low center of gravity system with PRO-VST coilovers and shocks.

The Explorer system is designed to run 35-inch tires while keeping a factory-like ride. It is a bolt-in design with no frame modifications. The Explorer Pro kits replace the factory springs and shocks with PRO-VST coilovers tuned for 17-inch wheels and 35-inch tires.

The kit provides a lift height range of 0-3.5 inches. It also improves travel and rebound, and it corrects suspension geometry for larger wheels and tires.

Key features

  • 2.5 in. suspension lift kit

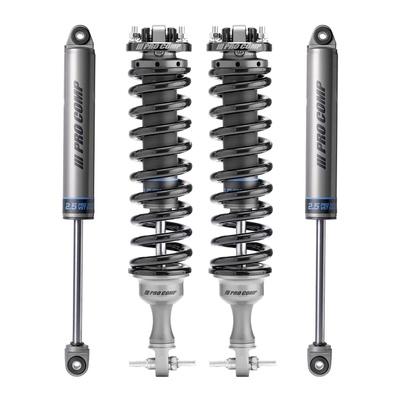

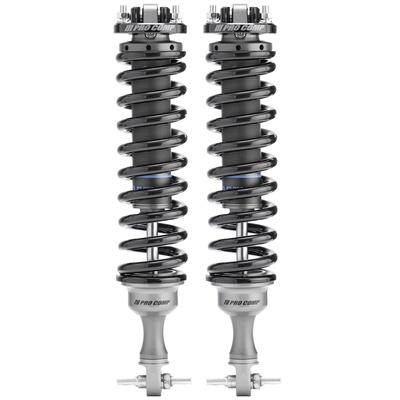

  • PRO-VST 2.5″ coilovers and shocks included
  • Explorer low center of gravity system
  • Bolt-in installation without frame modifications.
  • Tuned for 17 inch wheels with 35 inch tires
  • Lift height range 0-3.5 Inches
  • Direct fit

Checking clearance after a coilover lift

A coilover lift changes the front geometry, so clearance deserves a deliberate check once the truck is back on the ground. Turn the wheels to full lock and watch for contact with the inner fender, the brake hoses and the steering components. Then compress and extend the suspension by hand to confirm that the lines and driveline have room through their full travel.

Taller tires also shift how the truck handles, so the alignment and steering feel should be checked soon after installation. Pay attention to any rubbing or vibration during the first drives. Lifting the front end can load the sway bar links and the lower control arm bushings differently, so inspect those parts during routine service.

  • Tire rub at full lock
  • Brake hose slack at full droop
  • Steering and driveline clearance

Specifications

Brand Pro Comp Suspension
Part number K1177BX (EXPK1177BX)
Product type Suspension lift kit with coilovers and shocks
Lift 2.5 in.
Shocks series PRO-VST
Shocks included Yes
Tire size 35″
Lift height range 0-3.5 Inches
Fit type Direct fit

Vehicle fitment

The K1177BX fits the 2007-2018 Chevrolet Silverado 1500 (Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT, XFE) and the 2007-2018 GMC Sierra 1500 (Base, Denali, Hybrid, SL, SLE, SLT, WT, XFE). It also fits the 2007 Silverado 1500 Classic, the 2007 Silverado 1500 HD Classic (LT), the 2007 Sierra 1500 Classic and the 2007 Sierra 1500 HD Classic (SLE, SLT).

Only the Silverado 1500 and Sierra 1500 models above are covered, plus the 2007 Classic models. Match your truck’s year, model and trim to that list before ordering.

Installation notes

A coilover lift reshapes the front end of the truck, so a professional installation is strongly recommended. Support it on rated jack stands over level ground.

  • Torque each fastener to the specified value and recheck them after the first few miles.
  • Align the wheels after the lift.
  • Sweep the suspension through its travel to verify brake line, steering and driveline clearance, and check tire clearance.
SKU: EXPK1177BX Categories: ,

Fitment

VehicleYearsTrims
Chevrolet Silverado 15002007–2018Custom, High Country, Hybrid, LS, LT, LTZ, SSV, WT, XFE
Chevrolet Silverado 1500 Classic2007Hybrid, LS, LT, SS, WT
Chevrolet Silverado 1500 HD Classic2007LT
GMC Sierra 15002007–2018Base, Denali, Hybrid, SL, SLE, SLT, WT, XFE
GMC Sierra 1500 Classic2007Denali, Hybrid, SL, SLE, SLT, WT
GMC Sierra 1500 HD Classic2007SLE, SLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What trucks does the Pro Comp K1177BX fit?

It fits the 2007-2018 Chevrolet Silverado 1500 and 2007-2018 GMC Sierra 1500, plus the 2007 Silverado and Sierra 1500 Classic and HD Classic models.

How much lift does the K1177BX give?

It is a 2.5 in. suspension lift kit with a lift height range of 0-3.5 inches. Confirm the lift suits your tire and wheel setup before ordering, since it is tuned for 17-inch wheels with 35-inch tires.

Are shocks included with the K1177BX?

Yes. Shocks are included, and the kit uses PRO-VST 2.5-inch coilovers and shocks in place of the factory units. They replace the factory springs and shocks as one package.

Can I run 35 inch tires with the K1177BX?

Yes, the Explorer kits are designed for 35-inch tires. They are tuned for 17-inch wheels paired with 35-inch tires, so check tire clearance once the lift is installed.

Do the front sway bar links need to be checked after a coilover lift?

Yes. Sway bar links and their bushings can be strained when the front end is raised, so inspect them after installation. Check that the links are not bent, the bushings are seated and the bar moves freely through its travel.
