  • The 6-inch bracket and knuckle kit fits the 2009–2013 Ford F-150.
  • Rear ES9000 shock with a block and U-bolt rear lift
  • Crossmembers, steering knuckles, impact struts and front sway bar spacers
  • Brake line extension brackets; the color is black

Description

Overview

The Pro Comp K4145B is a 6-inch lift kit with a rear ES9000 shock for the 2009–2013 Ford F-150. It combines bracket and knuckle components at the front with crossmembers and impact struts, and it uses a block and U-bolt kit at the rear.

The finish is black. The front suspension is set by the crossmembers, steering knuckles and impact struts. Front sway bar spacers and brake line extension brackets keep the bar and brake lines working at the new height.

Key features

  • 6-inch lift height
  • Rear ES9000 shock
  • Crossmembers and steering knuckles
  • Impact struts

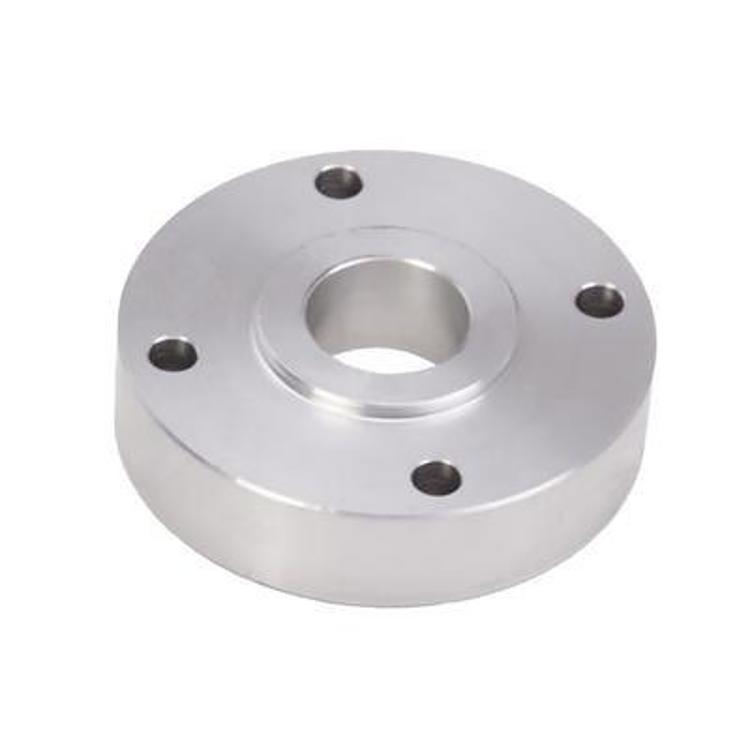

  • Front sway bar spacers
  • Brake line extension brackets and a block and U-bolt rear lift

Rear shock considerations

A single rear shock works alongside a block and U-bolt lift, so the shock length and mounting position matter for ride quality. When the rear height changes, the shock sits at a different angle, which can affect how the truck handles bumps and loaded cargo. Check that the shock moves freely through its full travel after installation.

Rear shocks are often replaced at the same time as lift parts because the old units were built for the stock height. Inspect the mounts for cracking and look for oil residue on the body. Brake line and sway bar clearance should also be rechecked once the rear has been raised.

  • Confirm shock travel after the lift
  • Inspect mounts for cracks or loose hardware
  • Recheck brake line clearance at full droop

Specifications

Brand Pro Comp Suspension
Part number K4145B
UPC 70000655973
Lift height 6 inch (lift height range 5 to 6.99 inches)
Suspension type Bracket and knuckle
Color Black

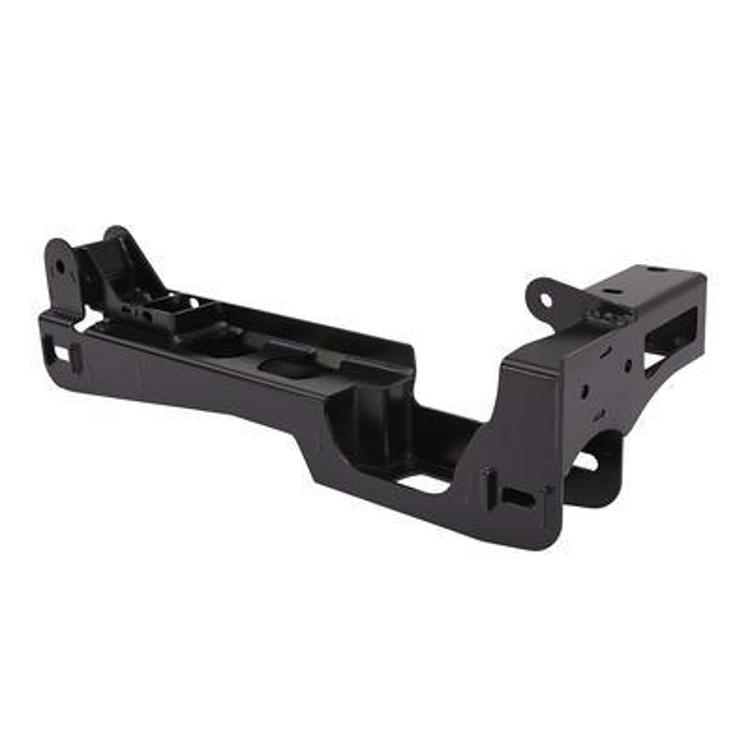

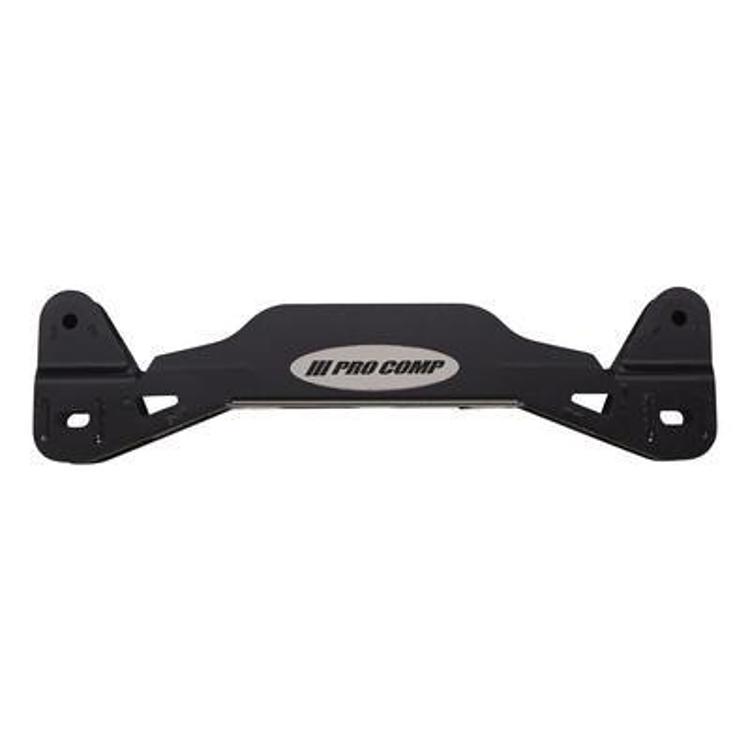

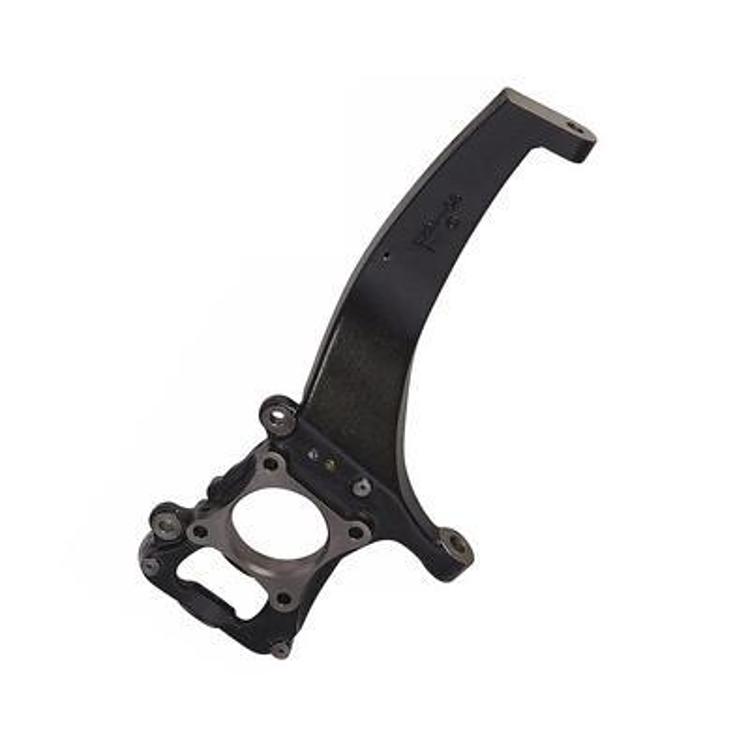

Front control Crossmembers, steering knuckles and impact struts
Rear lift Block and U-bolt kit

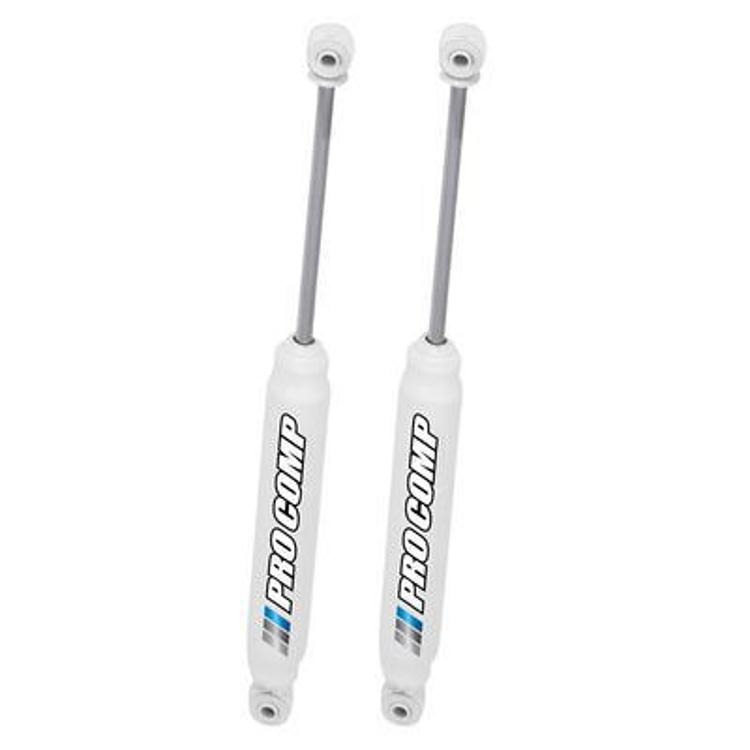

Rear shock ES9000
Front shocks None listed

Vehicle fitment

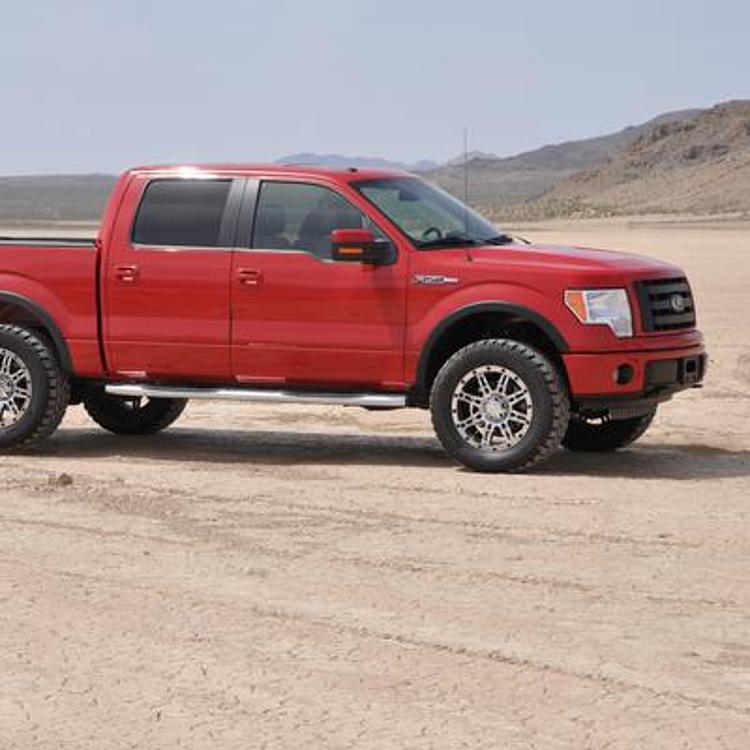

It fits 2009 through 2013 Ford F-150 trucks, including the FX4, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT versions.

The list covers only the 2009 through 2013 model years, so the 2014 F-150 and older trucks are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The lift changes the front geometry through the bracket and knuckle parts, so schedule an alignment and check the brake lines at full travel after installation.

What’s included

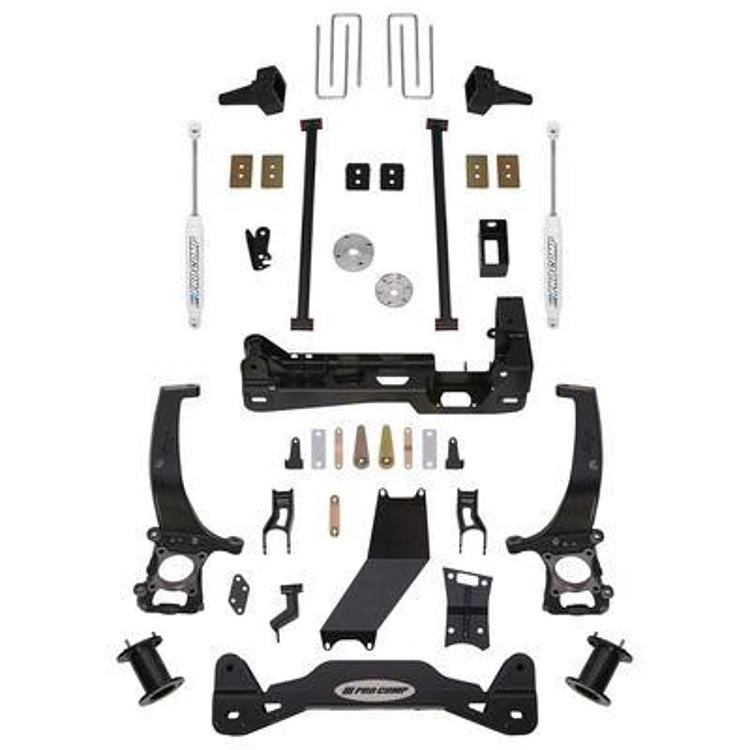

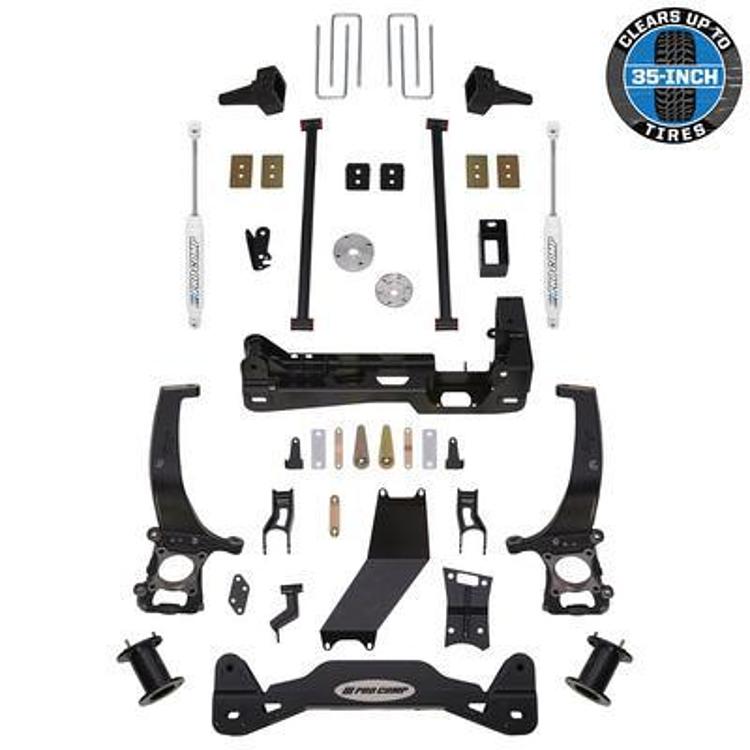

The kit includes crossmembers, steering knuckles, impact struts, front sway bar spacers, brake line extension brackets, the rear block and U-bolt kit, and a rear ES9000 shock.

SKU: EXPK4145B Category:

Specification

Shipping weight 239.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502009–2013FX4, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4145B include a front shock?

The spec sheet lists no front shock for this kit. The ES9000 listed is the rear shock, so check the front shock needs for your build.

What color is the K4145B?

The kit is black, as the specifications table shows. No other finish is named for the crossmembers, knuckles or impact struts.

Which F-150 years does this kit cover?

It covers the 2009 through 2013 Ford F-150 in the FX4, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT versions.

Do shocks need to be replaced when a block lift is installed?

Not always, but they should be checked. A block lift changes the angle the shock works through, so inspect the rear shock for leaks and worn mounts. Replace it if it shows wear or if handling feels unstable after the install.
