Overview
The Pro Comp 6 Inch Lift Kit with Rear Pro Runner Shocks, part number K2084BP, is a 6-inch knuckle lift for the 2012-2014 Ram 1500. It uses CNC machined knuckles and redesigned crossmembers and is a direct fit.
The kit uses spacers at the rear and comes with rear Pro Runner shocks. The front shocks are reused OEM units. Steering correction comes from the knuckles, and the kit includes crossmember drop brackets, extended sway bar links and a driveline spacer. The lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 knuckle lift
- CNC machined knuckles
- Redesigned crossmembers
- Crossmember drop brackets
- Extended sway bar links
- Driveline spacer
- Stainless steel braided brake lines
- Rear Pro Runner shocks
Driveline and steering after a lift
A knuckle lift changes the angles at the steering and the driveline. The spacers, drop brackets and extended sway bar links all shift the geometry a little, and the braided brake lines need enough slack for the new travel. Each part works with the others, so the whole front and rear should be checked together rather than one piece at a time.
Tire size and load also affect how the setup wears. Heavier or taller tires put more strain on joints, bearings and the steering. Watch for uneven wear, new vibration or play in the steering as the miles build up.
- Check ball joints and sway bar bushings for play
- Re-check driveline angles after the first few weeks
- Keep brake lines clear of springs and tire contact
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2084BP |
| UPC | 70000676694 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Knuckle |
| Steering correction | Knuckles |
| Rear lift | Spacers |
| Rear shocks | Pro Runner |
| Front shocks | Reuse OEM |
| Finish | Black |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2012-2014 Ram 1500 in the Big Horn, Express, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, Outdoorsman, SLT, ST, Special Service, Sport and Tradesman versions.
Ram 1500 models from 2011 and from 2015 on are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Replacing the knuckles and adding the driveline spacer changes steering and driveline geometry, so have the alignment and driveline checked after installation.
What’s included

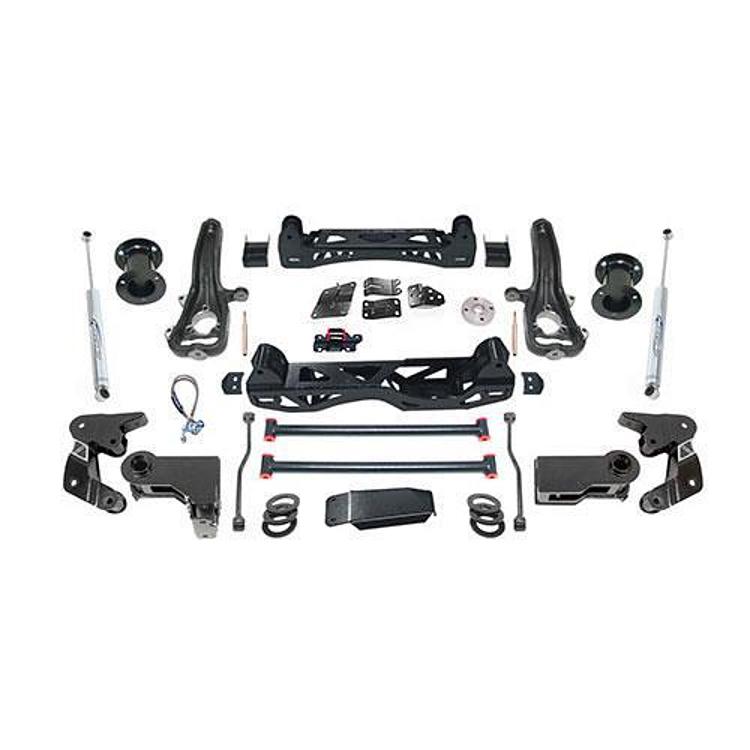

The kit includes CNC machined knuckles, redesigned crossmembers, crossmember drop brackets, extended sway bar links, a driveline spacer, stainless steel braided brake lines, rear spacers, and rear Pro Runner shocks.
