Pro Comp 73 Series Trilogy, 20x10 Wheel with 5x5 Bolt Pattern – Satin Black Milled – 5173-21073

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 20x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 20 in. by 10 in. aluminum spoke wheel, satin black finish
  • 5 on 5 bolt pattern, 72 center bore
  • Offset -18 and backspacing 4.75
  • Center caps included
  • Part number 5173-21073

Description

Overview

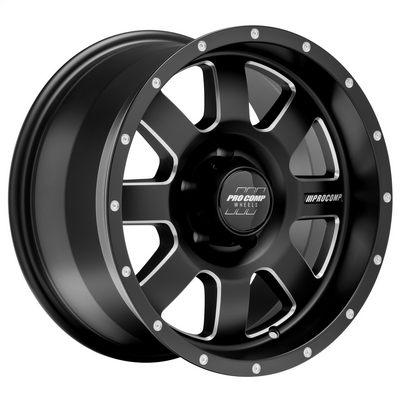

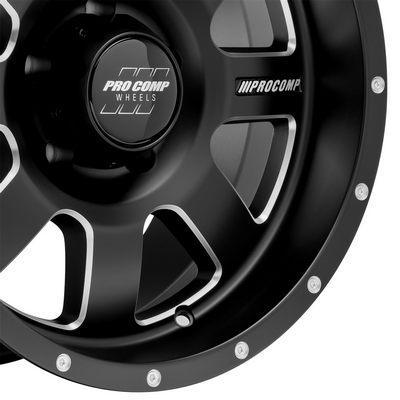

The Pro Comp 73 Series Trilogy wheel, part number 5173-21073, is a 20 by 10 inch aluminum spoke wheel with a 5 on 5 bolt pattern and a satin black finish. It has a -18 offset and is a sport utility wheel with high offset brake clearance.

The Xtreme alloy design uses counter pressure casting technology, which keeps the wheel light while allowing a black, black powder coat chrome or polished finish. The alloys are low-pressure cast. The wheels include center caps.

Key features

  • 20 in. diameter and 10 in. width
  • Aluminum construction with a spoke style
  • 5 on 5 bolt pattern with a 72 center bore
  • Satin black finish in the 73 Series Trilogy style
  • Offset -18 and backspacing 4.75
  • High offset brake clearance
  • Center caps included

Matching the wheel to your hub

A wheel has to match the hub in several ways at once. The bolt pattern must line up with the studs, and the center bore should fit the hub so the load is carried correctly. Offset and backspacing decide where the wheel sits relative to the brakes and fenders. Checking all of these measurements against the vehicle prevents vibration, rubbing and wheel stud damage.

Aluminum wheels are often selected for a lighter weight than steel, but the same fit checks apply. Hub rings can be used when the center bore is larger than the hub, and they should be sized and seated correctly. Lug nuts also need to match the seat style of the wheel. Once the wheel is mounted, recheck lug torque after the first drive and inspect the tire for uneven wear.

  • Confirm hub bore against the wheel center bore
  • Check lug nut seat type before buying nuts
  • Verify tire clearance at full steering lock
  • Balance the tire and wheel assembly after mounting

Specifications

Brand Pro Comp Alloy Wheels
Part number 5173-21073
Series 73 Series Trilogy
Diameter 20 in.
Width 10 in.
Bolt pattern 5 on 5
Center bore 72
Offset -18
Backspacing 4.75
Style Spoke
Construction Aluminum
Finish Satin black
Fitment type Universal fit (per Pro Comp)

Vehicle fitment

The wheel is universal fit and no specific vehicles are named. The 5 on 5 bolt pattern, 72 center bore and -18 offset must match the hub and brake clearance of the vehicle before fitting.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The offset and backspacing change how far the wheel sits in the wheel well, so check tire clearance against the suspension and fenders after mounting. The 72 center bore has to match the hub for the wheel to center correctly. Confirm whether hub rings are needed for your hub before mounting.

Offset is the distance from the wheel’s mounting face to its centerline. A -18 offset places the mounting face outboard of the centerline, so the wheel sits further out than a positive-offset wheel of the same width would. The 4.75 backspacing describes how far the back of the wheel sits behind the mounting face.

What’s included

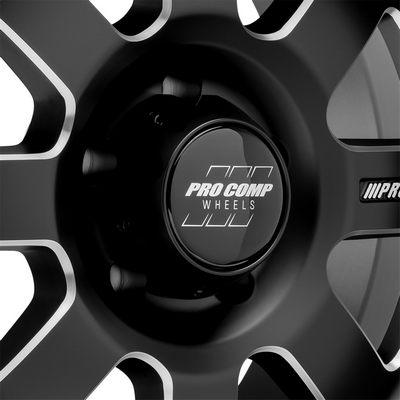

Center caps are included. Lug nuts and tires must be sourced separately before mounting.

SKU: PXA5173-21073 Categories: ,

Questions & Answers

What bolt pattern is the Pro Comp 5173-21073 wheel?

It is a 5 on 5 bolt pattern. The wheel is 20 inches in diameter and 10 inches wide, with a 72 center bore and -18 offset.

Does this wheel fit a specific vehicle?

No specific vehicles are named for this wheel. Universal fit means you must match the bolt pattern, center bore and offset to your vehicle before fitting.

Are center caps included?

Yes. The wheels include center caps. Lug nuts are not part of the item, so buy them separately and confirm they suit the wheel's seat before mounting.

What finish is it?

The finish is satin black in the 73 Series Trilogy style. The alloy is light in weight, and the -18 offset supports high offset brake clearance. Clean the satin finish with mild soap and water.

What is the difference between hub-centric and lug-centric wheels?

A hub-centric wheel uses its center bore to locate on the hub, so the load is carried by the hub rather than the lug studs. A lug-centric wheel relies on the lug nuts to center it. Check which type your vehicle needs before fitting.

Should wheel fasteners be checked after mounting?

Yes. Retorque lug nuts after the first drive and after any tire change. Check the wheel for wobble or vibration at speed, which can point to a centering or balance issue.
