Pro Comp 69 Series Vintage, 17x9 Wheel with 6 on 135 Bolt Pattern – Polished – 1069-7936

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA1069-7936: 17×9 polished aluminum Vintage wheel, 69 Series Classic
  • 6 on 135 bolt pattern, center bore 110, offset -6, backspacing 4.75
  • Holes style face, low-pressure cast construction
  • No vehicle is named for this wheel

Description

Overview

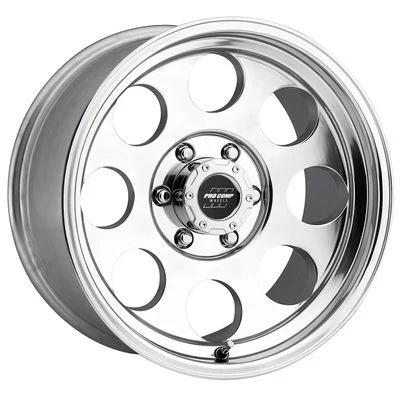

The Pro Comp PXA1069-7936 is a 17×9 polished aluminum wheel from the Pro Comp 69 Series Vintage line, with a Holes style face and a 6 on 135 bolt pattern. It is sold as one wheel with a center bore of 110 and an offset of -6.

Pro Comp says its alloys combine head-turning style and light weight with low-pressure casting. This wheel’s backspacing is 4.75, and the brand describes its line as built with a high offset for brake clearance on performance trucks and sport utility vehicles.

Key features

  • Low-pressure cast aluminum
  • Holes style face
  • 17-inch diameter, 9-inch width
  • 6 on 135 bolt pattern
  • Center bore of 110
  • Offset -6 with 4.75 backspacing

Clearance and fitment checks

Hub fit is the first check for any aluminum wheel. The six-lug hub, the center bore and the lug seat all need to match before the wheel is installed, and a wheel that does not seat evenly should not be driven. Pilot fit should be snug without forcing the wheel on the hub, and lug nuts should be torqued in a star pattern.

Offset and backspacing decide how the rim sits relative to the brake caliper and fender. A test fit with the tire mounted shows whether the rim clears the caliper when the steering turns. Check tire diameter as well, since a larger tire can rub under load. Inspect the wheel after the first few drives, looking at lug torque and any sign of movement.

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA1069-7936
Series 69 Series Vintage (Classic)
Style Holes
Construction Aluminum
Finish Polished
Diameter 17 inches
Width 9 inches
Bolt pattern 6 on 135
Center bore 110
Offset -6
Backspacing 4.75

Vehicle fitment

No vehicle is named for this wheel. The universal fit label does not identify a model. The six-lug 135 pattern and 110 center bore must match the hub, and the -6 offset then needs a clearance check.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Six lug holes at 135 must line up exactly with the hub, so a 6 on 5.5 hub will not take this wheel. Test-fit with the tire mounted to confirm the caliper and suspension have room. Six lug holes on a 135 spacing must line up with the hub, and the 110 center bore should seat on the hub pilot. Check the -6 offset against the caliper with the tire mounted.

What’s included

One 17×9 polished aluminum wheel. Check the hub hardware before mounting.

SKU: PXA1069-7936 Categories: ,

Questions & Answers

Is the PXA1069-7936 a 6 on 135 wheel?

Yes. The bolt pattern is 6 on 135 with a center bore of 110. The offset is -6 and the backspacing is 4.75, so confirm all four figures against your hub.

What finish does this 17x9 Vintage wheel have?

It has a polished finish on an aluminum Holes style wheel from the 69 Series Classic range. The 6 on 135 spacing, 110 bore and -6 offset decide whether it fits the hub.

Does the PXA1069-7936 include lug nuts?

Check the hub hardware, such as lug nuts and a center cap, against your installation before the wheel is mounted on the vehicle.

How do I confirm a six-lug wheel is seated correctly?

Seat the wheel on the hub, then torque the lug nuts in a star pattern. Re-check the torque after a short drive. A wheel that wobbles, or lug nuts that loosen, means the seat or hub fit needs inspection before further driving.
