Pro Comp 6″ Lift Kit with PRO-X Shocks – K5089T

Pro Comp Suspension

Shop Toyota Tacoma Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch suspension system for 2016–2023 Toyota Tacoma with PRO-X front and rear shocks
  • Extended steering knuckles keep the rack-and-pinion steering in the factory location
  • Rock-proof crossmembers and CV axle angles that Pro Comp says allow full travel without binding ball joints
  • Block and U-bolt rear lift; lift height range 6–7 inches

Description

Overview

The Pro Comp K5089T is a 6-inch suspension system for the 2016–2023 Toyota Tacoma. PRO-X front and rear shocks come with it, and the lift height range is 6 to 7 inches.

The system is designed for on- and off-road use. Extended steering knuckles keep the rack-and-pinion steering unit in the factory location, and rock-proof crossmembers add protection. The design keeps CV axle angles in range and allows full compression and extension travel without binding the ball joints.

Key features

  • Extended steering knuckles that keep the rack-and-pinion steering in the factory location
  • Rock-proof crossmembers
  • CV axle angles that Pro Comp says are maintained through the lift
  • The design allows full compression and extension travel without binding the ball joints.
  • PRO-X front and rear shocks, included

Tire size and speedometer accuracy

Tire size is one of the biggest factors in how a lifted truck drives. Larger or taller tires change the rolling diameter, which affects speedometer and odometer readings, and it can also change how the transmission and stability systems interpret wheel speed. Choosing a tire size close to what the lift is designed for keeps those systems working as expected.

Wheel offset matters too. Changing offset alongside a lift can alter clearance at the steering and suspension components, so test the full steering lock and suspension travel before regular driving. Check load ratings on new tires as well, since a heavier truck on a different tire can change braking distance.

  • Confirm tire diameter before buying wheels
  • Test full steering lock for clearance
  • Check speedometer accuracy after the tire change
  • Match tire load ratings to the truck’s gross weight

Specifications

Brand Pro Comp Suspension
Part number K5089T
Suspension type Lift kit, suspension system
Lift height 6 inches, listed range 6–7 inches

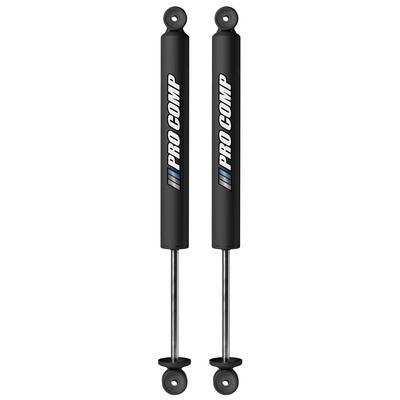

Front shocks PRO-X
Rear shocks PRO-X, included
Rear lift method Block and U-bolt with add-a-leaf
Shocks included Yes

Vehicle fitment

It fits the 2016–2023 Toyota Tacoma in the Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport and Trail versions.

Fit is for 2016–2023 Tacoma models, not the 2005–2015 Tacoma, the 4Runner or the Tundra. Compare your truck’s year, model and trim with this fit before ordering.

Installation notes

The extended steering knuckles and the rock-proof crossmembers are part of the front end, so have the CV axle angles, driveline angles and alignment checked after installation.

What’s included

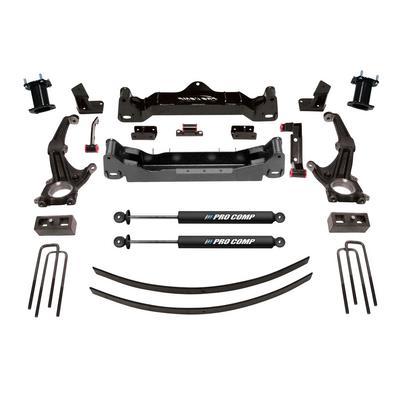

PRO-X front and rear shocks, extended steering knuckles, rock-proof crossmembers, and the rear block and U-bolt lift hardware with add-a-leaf parts.

SKU: EXPK5089T Categories: ,

Fitment

VehicleYearsTrims
Toyota Tacoma2016–2023Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K5089T fit a 2022 Toyota Tacoma TRD Off-Road?

Yes. The 2016–2023 Tacoma is in the listed fitment, and the TRD Off-Road version is named. Confirm the year and model on your truck before ordering.

Does the K5089T keep the factory steering location?

Yes. The extended steering knuckles keep the rack-and-pinion steering unit in the factory location, so the steering is not relocated by the lift.

Does the K5089T fit a 2014 Toyota Tacoma?

No. The kit fits 2016–2023 Tacoma models, so a 2014 Tacoma is outside its fit. Confirm the model year on your truck before ordering.

Does a lift change speedometer readings?

Yes, it can. Taller or larger tires change the rolling diameter, which shifts speedometer and odometer readings. Recalibrating the speedometer or using a tuner after a tire size change keeps the readings accurate.
