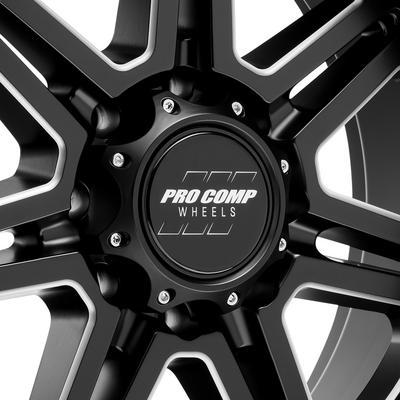

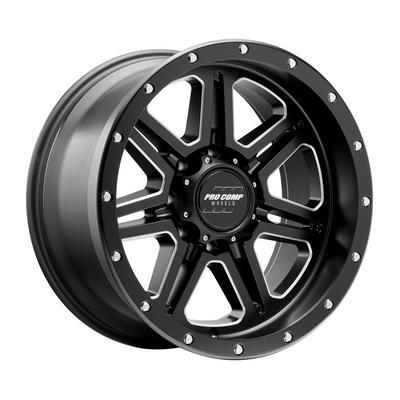

Pro Comp 62 Series Apex, 17x9 Wheel with 5x5 Bolt Pattern – Satin Black Milled – 5162-7973

Pro Comp Alloy Wheels

Shop Pro Comp Alloy Wheels 17x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5162-7973: 17×9 aluminum split-spoke wheel, 62 Series Apex, satin black milled
  • 5 on 5 bolt pattern, center bore 72, offset -6, backspacing 4.75
  • Pro Comp alloy load rating of 2500 to 3650 lbs per wheel
  • No vehicle is named for this wheel

Description

Overview

The Pro Comp PXA5162-7973 is a 17×9 aluminum split-spoke wheel from the Pro Comp 62 Series Apex line, in satin black milled with a 5 on 5 bolt pattern. It is sold as one wheel, with a center bore of 72 and an offset of -6.

The Apex is built with low-pressure casting and is rated from 2500 to 3650 lbs per wheel. This 9-inch-wide rim has a backspacing of 4.75, which sets how far the inner lip sits behind the mounting face.

Key features

  • Low-pressure cast aluminum construction
  • Split-spoke face style
  • 17-inch diameter and 9-inch width
  • 5 on 5 bolt pattern
  • Center bore of 72
  • Offset -6 with 4.75 backspacing

Working with negative offset

Negative offset places the mounting face toward the outer edge of the rim, which moves the wheel and tire outward from the hub. On a narrow fender, the tire can reach the fender edge at full compression, while stock suspension can leave less room for the tire. Check the fender and inner clearance with the tire on before any trail use.

Split-spoke designs with a 9-inch width rely on the spokes and the barrel to carry load, and an aggressive offset puts more leverage on the wheel bolts and hub. Lug torque should be rechecked after the first drives, and the wheel should be inspected for bent lips after rough trail use. Pick a tire that suits the rim width.

  • Test-fit the tire at full steering lock
  • Check the fender edge at full suspension travel
  • Consider wheel spacers only after a clearance check
  • Re-torque lug nuts after the first drives

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5162-7973
Series 62 Series Apex
Style Split spoke
Construction Aluminum
Finish Satin black milled
Diameter 17 inches
Width 9 inches
Bolt pattern 5 on 5
Center bore 72
Offset -6
Backspacing 4.75
Load rating 2500 to 3650 lbs per wheel (Pro Comp alloy range)

Vehicle fitment

This wheel is not tied to one vehicle model. A 5 on 5 hub with a 72 center bore is the match, and the -6 offset needs a fender and caliper check.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use a 5-lug hub in a 5 on 5 layout and confirm the center bore before ordering. Test-fit with the chosen tire to make sure the rim clears the brake caliper and suspension arms at full steering lock. A tire width that suits the 9-inch rim is the simplest way to avoid fender rub.

What’s included

One 17×9 aluminum wheel. Gather matching lug hardware before mounting.

SKU: PXA5162-7973 Categories: ,

Questions & Answers

What bolt pattern is the Pro Comp PXA5162-7973?

It is a 5 on 5 bolt pattern with a center bore of 72. The offset is -6 and the backspacing is 4.75. Match the hub to each figure before ordering.

Does the PXA5162-7973 include lug nuts?

Lug nuts and a center cap are not part of the wheel itself. Check the fasteners your hub requires before buying.

Is the Apex 17x9 made for a particular vehicle?

No vehicle is named. The universal fit label does not confirm a model, so compare the 5 on 5 pattern and -6 offset with your vehicle.

Does this Apex wheel need a special tire?

A specific tire type is not required, but the tire has to suit the 9-inch rim width and the vehicle's clearance. Check the tire's approved width range and load rating. Mounting outside that range can cause uneven wear and poor bead seating.

What should I inspect on a negative offset wheel after off-road use?

Look at the inner barrel near the brake parts, the lip edge and the spokes for bending or cracks. Check the fender and steering components for rub marks. Address any contact before the next trip.
