Pro Comp 64 Series Gunner, 20x10 with 6x135 Bolt Pattern – Satin Black Milled- 5164-213647

Pro Comp Alloy Wheels

$210.41In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 12:00 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp PXA5164-213647: 20×10 aluminum eight-spoke Gunner wheel, satin black milled
  • 6 on 135 bolt pattern, center bore 87, offset -18, backspacing 4.75
  • Pro Comp rates it at 3650 lbs with a two-year finish warranty
  • No vehicle is named for this wheel

Description

Overview

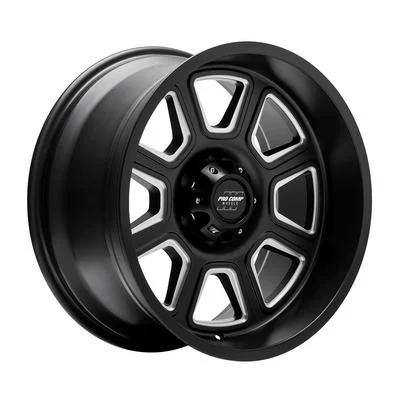

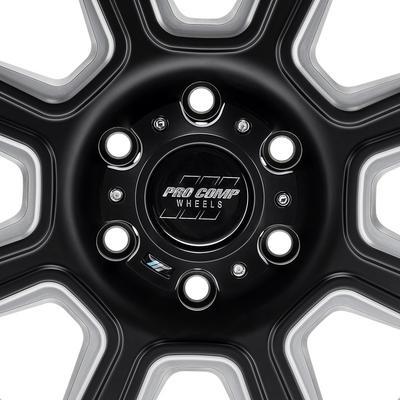

The Pro Comp PXA5164-213647 is a 20×10 aluminum eight-spoke wheel from the Pro Comp 64 Series Gunner, in satin black milled with a 6 on 135 bolt pattern. It is sold as one wheel with a center bore of 87.

The Gunner is a chiseled eight-spoke design with CNC-milled windows and a 3650-pound eight rating. The 10-inch width and -18 offset with 4.75 backspacing place the tire outboard of the mounting face, which affects fender and caliper clearance.

Key features

  • Chiseled eight-spoke design
  • CNC-milled windows
  • 20-inch diameter, 10-inch width
  • 6 on 135 bolt pattern with a center bore of 87
  • Offset -18 and backspacing 4.75
  • Two-year finish warranty

Six-lug hub care

A six-lug hub carries the load through six studs, and each one needs to seat evenly against the wheel. Before mounting, clean the hub face and the back of the wheel so rust, paint or grit does not hold the wheel off its seat. A loose wheel can wear the bolt holes and the hub face, so check the seating after the first drive.

Rotate the wheel and tire on a regular schedule, and watch for uneven tire wear that may point to wheel offset or alignment problems. When a six-lug hub shows pitting or a worn pilot, the wheel may not center correctly. Address hub wear before fitting a new wheel.

  • Clean the hub face before mounting
  • Tighten lug nuts in a star pattern
  • Recheck torque after the first drive

Specifications

Brand Pro Comp Alloy Wheels
Part number PXA5164-213647
Series 64 Series Gunner
Style Spoke
Construction Aluminum
Finish Satin black milled
Diameter 20 inches
Width 10 inches
Bolt pattern 6 on 135
Center bore 87
Offset -18
Backspacing 4.75
Load rating 3650 lbs (eight rating)
Finish warranty Two years

Vehicle fitment

No vehicle is named for this wheel. The universal fit label does not identify a truck or Jeep. A six-lug hub at 135 with an 87 center bore is required, and the -18 offset should be checked at the fender and caliper.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Six lug holes at 135 must line up with the hub, so a 6 on 5.5 hub will not accept this wheel. Confirm the bolt pattern and center bore on the vehicle, then test-fit the 10-inch rim with the tire. Six lug holes on a 135 spacing must match the hub exactly, and the 87 center bore has to seat on the hub pilot. The 10-inch width and -18 offset set the tire position, so measure inner clearance with the tire mounted. Confirm the bolt pattern before ordering, because a 6 on 5.5 hub will not accept a 6 on 135 wheel.

What’s included

One 20×10 aluminum wheel. Hardware needs depend on the six-lug hub, so inventory what your vehicle already has first.

SKU: PXA5164-213647 Categories: ,

Questions & Answers

Is the PXA5164-213647 a 6 on 135 wheel?

Yes. The bolt pattern is 6 on 135 with a center bore of 87. Confirm both before ordering, since a different hub layout will not mount.

What is the load rating of this Gunner?

Pro Comp gives the Gunner a 3650-pound eight rating. Its finish carries a two-year warranty from Pro Comp, separate from the transferable Pro Comp Promise.

Are lug nuts included with the Gunner 6 on 135?

Confirm the hardware before ordering. Six-lug hubs usually need lug nuts matched to the stud thread, so count what your vehicle already has.

Can a spacer be used to clear the caliper on a 6 on 135 wheel?

Spacers change the offset and the load path through the hub and studs, so they are not a simple clearance fix. Check the fit and clearance first, and use only spacers made for the same bolt pattern and center bore.
