Pro Comp 97 Series Rock Crawler Monster Mod, 15x10 Wheel with 5 on 5 Bolt Pattern – Gloss Black – 97-5173

Pro Comp Steel Wheels

Shop Pro Comp Steel Wheels 15x10 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp 97 Series Rock Crawler Monster Mod, 15×10 inch steel wheel, part number PCW97-5173
  • 5 on 5 bolt pattern, 83 center bore, 3.75 backspacing
  • Gloss black powder coat finish with a holes-style design
  • Center cap and lug nuts sold separately; no vehicle is named

Description

Overview

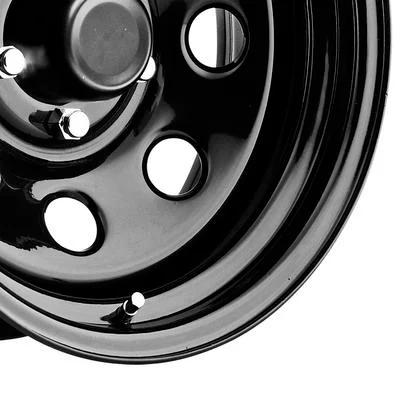

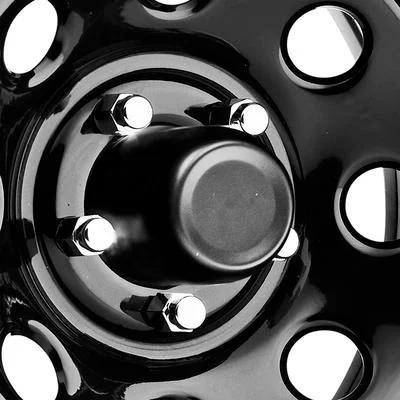

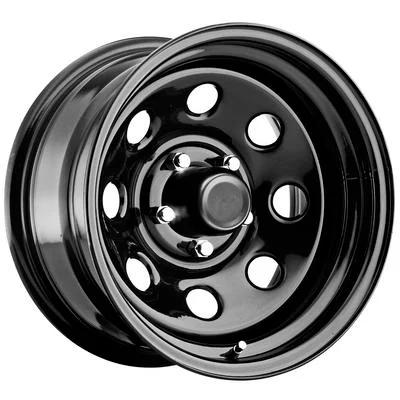

The Pro Comp 97 Series Rock Crawler Monster Mod is a 15×10 inch steel wheel with a gloss black powder coat finish, part number PCW97-5173, drilled for a 5 on 5 bolt pattern. Pro Comp built it for off-road trucks and four-wheel-drive vehicles that need a heavy-duty steel wheel, and its holes-style face gives the wheel its monster mod look.

The 83 center bore centers the wheel on the hub, and the 3.75 backspacing sets the distance from the mounting face to the back edge of the rim. Confirm the offset against your hub before mounting, since it is needed to judge brake and fender clearance. The steel construction is intended for heavy-duty off-road use.

Key features

  • Steel construction with a gloss black powder coat finish
  • 15 inch diameter and 10 inch width for a wide, deep rim
  • Holes-style face in the Rock Crawler 97 Series design
  • 5 on 5 bolt pattern
  • 83 center bore for hub centering
  • 3.75 backspacing

Caring for steel wheels off road

Steel wheels tolerate impacts well but can show fatigue at weld seams and around bolt holes over time. After rough runs, look for cracks, bends and hairline lines near the center and the rim bead. Catching early wear matters, because a bead that loses its seal or a wheel that fails on the trail can strand a vehicle.

Powder coat finishes chip when rocks and branches strike the rim face. Touch-up with a compatible paint can slow surface rust, though a deep chip that reaches bare steel should be cleaned and sealed. Keep the lug nut seats clean so the nuts seat evenly, and check torque after the first few trail runs.

  • Inspect welds and bolt holes after trail use
  • Touch up chips before rust starts
  • Keep lug nut seats clean
  • Check torque after initial runs

Specifications

Brand Pro Comp Steel Wheels
Part number PCW97-5173
Series 97 Series Rock Crawler Monster Mod
Construction Steel
Style Holes
Finish Gloss black powder coat
Diameter 15 inches
Width 10 inches
Bolt pattern 5 on 5
Center bore 83
Backspacing 3.75

Vehicle fitment

This steel wheel is not tied to a particular make, model or year, and no chassis code is given. Pro Comp’s universal label means the wheel is not sized to one vehicle, so the 5 on 5 bolt pattern, the 83 center bore and the offset of the vehicle hub must be checked by hand. A 10 inch wide rim also needs fender and steering clearance confirmed before mounting.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Steel rims carry more weight than aluminum rims of the same size, so inspect the mounting surface and the lug nut seats before tightening. Pro Comp’s powder coat finish should be protected from abrasion during mounting, and a wheel-safe socket or lug nut cover helps keep the finish clean.

What’s included

The 15×10 steel wheel, part number PCW97-5173. Center caps and lug nuts are sold separately.

Not included: Center cap and lug nuts for part PCW97-5173, which are sold separately.

SKU: PCW97-5173 Categories: ,

Questions & Answers

What bolt pattern does the Pro Comp PCW97-5173 steel wheel use?

It uses a 5 on 5 bolt pattern with an 83 center bore. Match both to your hub before ordering, because a steel wheel with the wrong pattern cannot be mounted safely.

Are center caps and lug nuts included with this 97 Series wheel?

No. The center cap and lug nuts are sold separately, so buy them with the wheel if your setup needs them.

What size is the Pro Comp 97 Series Monster Mod wheel?

It is a 15 inch diameter, 10 inch wide steel wheel with a holes-style face. It has a 3.75 backspacing and a gloss black powder coat finish.

How do I tell if a steel wheel is cracked or bent?

Look for cracks around the weld seams, bolt holes and bead seat, and check for wobble or slow air loss. Inspect the rim for bends after hard landings. Replace a wheel that shows cracking, since steel can fail suddenly under load.
