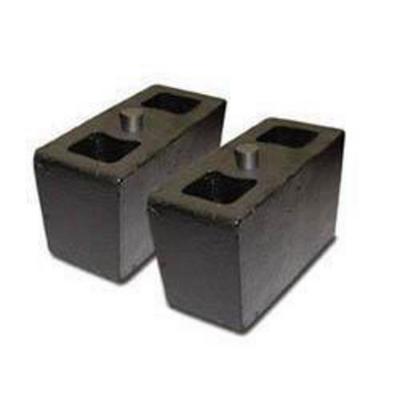

Pro Comp 2.5 Inch Rear Lift Block – 95-251F

Pro Comp Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pro Comp Suspension EXP95-251F 2.5 inch rear lift block
  • Tapered cast iron block with 9/16 inch pin size
  • Fits 2004 to 2008 Ford F-150 models
  • Sold as each

Description

Overview

The Pro Comp Suspension EXP95-251F is a 2.5-inch rear lift block for the 2004 to 2008 Ford F-150. It raises the rear of the truck by 2.5 inches and is sold as a single block.

The block is tapered and cast iron, with a 9/16-inch pin size. Pro Comp offers lift blocks in a range of sizes for different applications.

Key features

  • 2.5-inch block height
  • Tapered block style
  • Cast iron construction
  • 9/16-inch pin size
  • Sold as each

Driveline and spring checks

A rear lift block tilts the axle forward, which changes the angle of the driveshaft joints. Greater angles can cause vibration at highway speed, so the driveline should be inspected after installation. Pinion angle and U-joint condition matter most when the block is combined with a taller suspension or heavier loads. Rear axle wrap and the bump stop position should also be checked once the truck is back on its wheels.

Spring pin alignment is the other check. A block with the wrong pin size will not seat square on the spring, so measure the pin before buying and confirm it matches the spring you have. Shock length may also need review, because the rear ride height changes and the shock must still reach full travel without bottoming.

  • Inspect U-joints and driveshaft for play
  • Check brake lines and sway bar links for stretch
  • Recheck lug nut torque after the first drive

Specifications

Brand Pro Comp Suspension
Part number EXP95-251F
Block height 2.5 in
Block style Tapered
Material Cast iron
Pin size 9/16 in
Sold as Each

Vehicle fitment

It fits the 2004 to 2008 Ford F-150, including the XL, XLT, Lariat, King Ranch, Harley-Davidson Edition and FX4 models.

The block is designed for the 2004 to 2008 F-150. Match your truck’s year, model and trim to that range before ordering.

Installation notes

A rear lift block changes the angle of the driveline, so check driveshaft angles after installation. Confirm the pin size matches your spring before fitting the block.

What’s included

One lift block under part number EXP95-251F.

Fitment

VehicleYearsTrims
Ford F-1502004–2008FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, THE 60TH ANNIVERSARY EDITION, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How much lift does the EXP95-251F add?

It is a 2.5-inch block, so it raises the rear of the truck by 2.5 inches. It has a tapered cast iron style with a 9/16-inch pin size.

Will this block fit a 2010 Ford F-150?

No. It fits the 2004 to 2008 Ford F-150 only, so a 2010 truck falls outside that range. Check your model year before buying, since the block is designed for that range alone.

Is the block sold in pairs?

No. It is sold as each, so the number you need depends on how many blocks your rear suspension uses. Count the blocks before ordering, and check the pin size against your spring.

Does the block need driveshaft work after installation?

Often yes. A rear block changes driveline angles, so check the driveshaft and U-joints after installation and look for vibration at highway speed. Recheck the bolts and brake lines after the first few drives.
