Overview

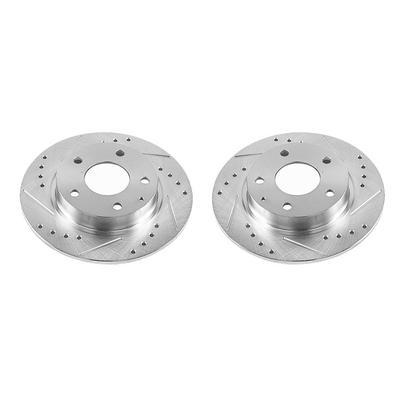

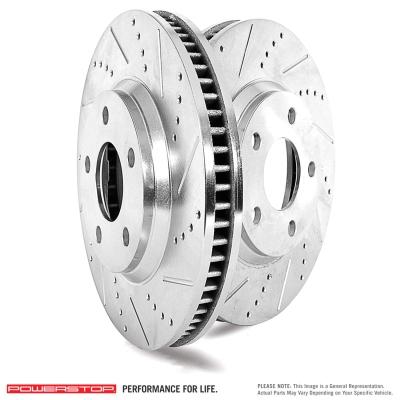

The Power Stop Evolution JBR1594XPR (part number PSTJBR1594XPR) is a pair of rear drilled and slotted brake rotors for the 2019–2021 Mazda CX-3 and the 2020–2021 Mazda CX-30.
The rotor is machined using Tru-Cast technology. The cross-drilled holes are designed to keep rotors up to 180F cooler, and the slots sweep a clear contact patch between the pad and the rotor, which helps reduce fade.
Fade is the loss of braking effect when brakes get hot, and Power Stop’s cooling and slotting features aim to limit it. The rotor is also mill balanced, G3000 grade cast and silver zinc plated for rust protection.
The CX-3 and CX-30 are compact crossovers, and one rear rotor part number covers both for the listed years. The rotors are finished for a clean look behind custom or factory wheels.
Key features
- Cross-drilled holes are designed to run rotors up to 180F cooler.
- Precision machined using Tru-Cast technology
- Rotor run-out within 0.0015 and DTV tolerance within 0.005
- All Evolution rotors are mill balanced
- Rounded slots keep a clear contact patch by sweeping away water, gas and dust
- Silver zinc plated to shield against rust during normal operation
- Reduces fade; G3000 grade cast
- Supplied as a pair
Cooling and fade on compact crossovers
Compact crossovers are light, but their rear brakes still work hard during downhill driving and repeated stops in traffic. Brake fade happens when the pads and rotor overheat and lose friction, so cooling features matter most on hot days or long descents. Check the rear rotors for heat cracks and a raised outer edge during each service, since both reduce braking effectiveness.
When changing rear rotors, replace them in pairs and fit new pads at the same time. Clean the hub face and check the caliper slide pins for smooth movement. Bed in the pads with moderate stops before any hard braking, and let the brakes cool between firm stops during the first few drives.
- Look for heat cracks during each service
- Check caliper slides for smooth movement
- Bed in the pads before hard braking
Specifications
| Brand | Power Stop |
|---|---|
| Part number | PSTJBR1594XPR |
| Product type | Rear brake rotors, drilled and slotted |
| Position | Rear |
| Disc material | Cast iron (G3000 grade) |
| Coating | Silver zinc plated |
| Run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Quantity | Pair |
| Fit | Direct fit |
Vehicle fitment
It fits the 2019–2021 Mazda CX-3 in Sport, Touring and Grand Touring versions, and the 2020–2021 Mazda CX-30 in Base, Select, Preferred, Premium, 2.5 S and 2.5 Turbo versions.
The 2016–2018 CX-3 is not covered by this part number. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Fit both rear rotors together with new pads, and keep the front brakes’ separate part numbers in mind.
What’s included
Two rear rotors.
Not included: Brake pads and mounting hardware.
