Overview

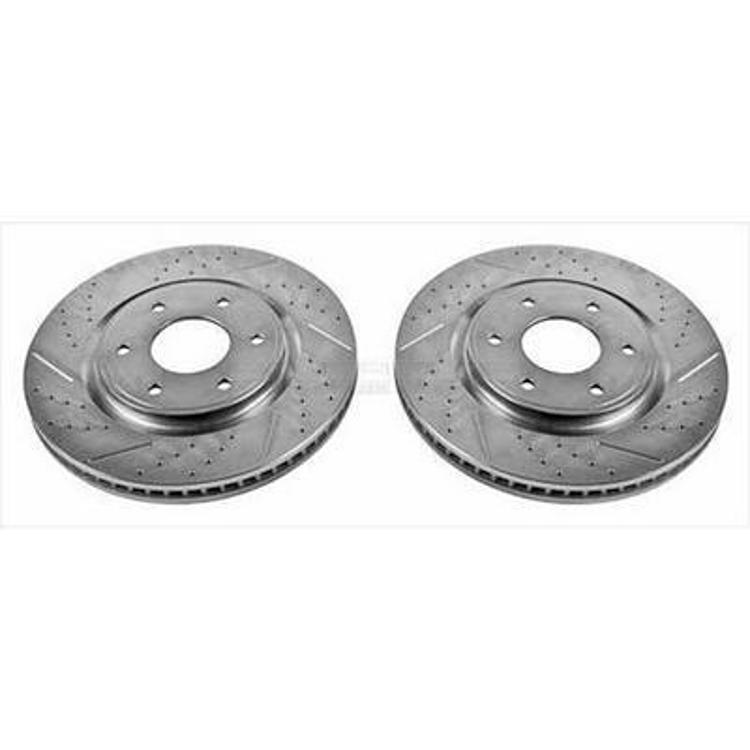

The Power Stop JBR1194XPR is a front slotted and cross-drilled brake rotor for the 2005–2007 INFINITI QX56 and Nissan Armada. The rotor uses a G3000 grade cast, and Power Stop’s drilled and slotted rotors carry a silver zinc plating that helps shield them from rust during normal operation.
The JBR1194XPR suits owners of the 2005–2007 INFINITI QX56 and Nissan Armada who want a front rotor with a slotted and cross-drilled face rather than a plain disc.
Rotors and pads wear together, so many owners replace both at the same time rather than mixing new pads with worn rotors.
Key features
- Slotted and cross-drilled front rotor
- Direct fit for the listed vehicles
- Coated rotor
- Rounded slots that sweep water, gas and dust from the pad contact patch
- Silver zinc plated to shield against rust during normal operation
- Cross-drilled holes that Power Stop says keep rotors up to 180°F cooler
- Mill balanced
- Looks good behind custom or factory wheels
- Tru-Cast precision machining
Pads and rotors as a set
Rotors and pads wear together, so replacing one without the other often leads to uneven contact and noise. A new slotted rotor paired with worn pads may not reach full contact, and the pedal can feel inconsistent during the first stops. Check pad thickness and backing plates before you fit the new rotor.
Stopping heat builds in the rotor face with each brake application. The cross-drilled holes and slots help carry heat and debris away, but they also mean the rotor should be inspected for hairline cracks around the holes at every service. Use the correct torque for the wheel nuts after mounting and recheck them after the first drive.
- Replace pads in matched sets with new rotors
- Inspect for cracks around the drilled holes
- Recheck wheel nut tightness after a short drive
- Keep brake fluid at the level marked on the reservoir
Specifications
| Brand | Power Stop |
|---|---|
| Part number | JBR1194XPR |
| UPC | 792088558268 |
| Product type | Slotted and cross-drilled disc brake rotor |
| Position | Front |
| Fit type | Direct fit |
| Coating | Rotors coated |
| Casting | G3000 grade cast |
| Plating | Silver zinc |
| Machining | Tru-Cast precision machined |
| Rotor run-out | Within 0.0015 |
| DTV tolerance | Within 0.005 |
| Balance | Mill balanced |
Vehicle fitment
It is a direct fit for the 2005–2007 INFINITI QX56 (Base) and the 2005–2007 Nissan Armada (LE, SE, SE Off-Road).
Measure the diameter, thickness, bolt pattern and weight of the rotor being replaced, then compare them with this part before ordering.
The QX56 fits 2005–2007 and the Armada fits 2005–2007 in the trims named above. Year and trim matter here, so check both against your vehicle before buying.
Installation notes
Use the fastener torque figures in the vehicle’s service manual when mounting the rotor and caliper.
What’s included
The JBR1194XPR is a single brake rotor and includes no additional components.
Not included: Brake pads, calipers and mounting hardware are sold separately and must be obtained before installation.
